# AMPTRON INTERNATIONAL, INC.
DLC/DX-5800B
Processor 80386DX/CX486DLC
Processor Speed 33/40MHz
Chip Set SARC
Max. Onboard DRAM 32MB
Cache 128KB
BIOS AMI
Dimensions 218mm x 220mm
I/O Options None
NPU Options 80387DX

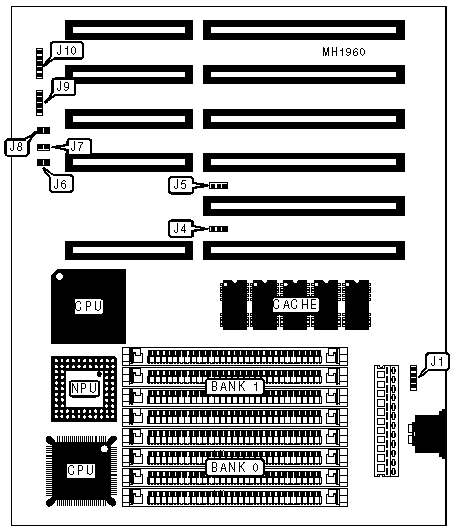

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|------------------+----------+-------------------+----------|
| External battery | J1 | Turbo LED | J8 |
|------------------+----------+-------------------+----------|
| Reset switch | J6 | Speaker | J9 |
|------------------+----------+-------------------+----------|
| Turbo switch | J7 | Power LED & | J10 |
| | | keylock | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|------------------------------+---------+-------------------|
| » | CPU speed select 40MHz | J4 | pins 1 & 2 closed |
|---+--------------------------+---------+-------------------|
| | CPU speed select 33MHz | J4 | pins 2 & 3 closed |
|---+--------------------------+---------+-------------------|
| » | NPU disabled | J5 | pins 1 & 2 closed |
|---+--------------------------+---------+-------------------|
| | NPU enabled | J5 | pins 2 & 3 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 3 |
|------------------+--------------------+--------------------|
| 1MB | (4) 256K x 9 | NONE |
|------------------+--------------------+--------------------|
| 2MB | (4) 256K x 9 | (4) 256K x 9 |
|------------------+--------------------+--------------------|
| 4MB | (4) 1M x 9 | NONE |
|------------------+--------------------+--------------------|
| 5MB | (4) 256K x 9 | (4) 1M x 9 |
|------------------+--------------------+--------------------|
| 8MB | (4) 1M x 9 | (4) 1M x 9 |
|------------------+--------------------+--------------------|
| 16MB | (4) 4M x 9 | NONE |
|------------------+--------------------+--------------------|
| 20MB | (4) 1M x 9 | (4) 4M x 9 |
|------------------+--------------------+--------------------|
| 32MB | (4) 4M x 9 | (4) 4M x 9 |
+------------------------------------------------------------+
