       # ACER, INC.

          486 SYSTEM

          Processor    80486SX/80486DX/80486DX2
          Processor    25/33/50(internal)/66(internal)MHz
          Speed
          Chip Set     Intel
          Max. Onboard 36MB
          DRAM
          Cache        64/128/256KB
          BIOS         Phoenix
          Dimensions   330mm x 218mm
          I/O Options  32-bit riser card, floppy drive interface, IDE
                       interface, parallel port, PS/2 mouse port, serial
                       ports (2), VGA feature connector, VGA port
          NPU Options  None

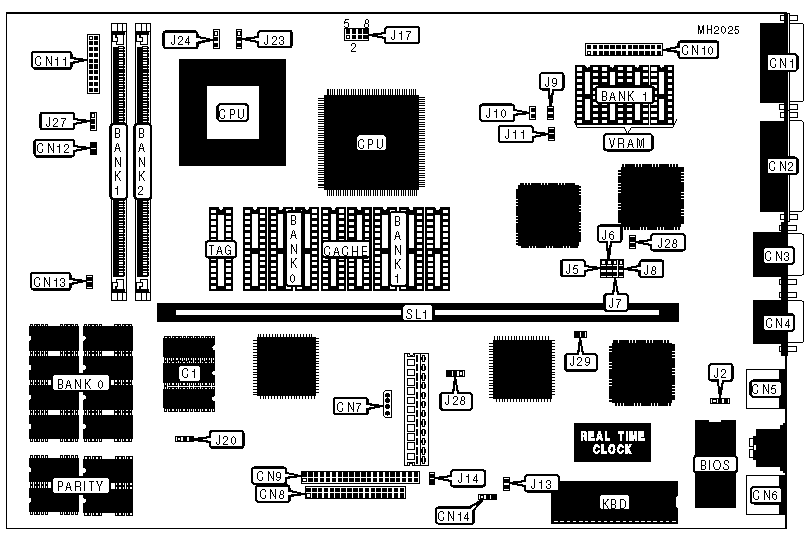

   IMG IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          | Purpose         | Location | Purpose            | Location |
          |-----------------+----------+--------------------+----------|
          | VESA control    |    C1    | Floppy drive       |   CN8    |
          | PAL chips       |          | interface          |          |
          |-----------------+----------+--------------------+----------|
          | VGA port        |   CN1    | IDE interface      |   CN9    |
          |-----------------+----------+--------------------+----------|
          | Parallel port   |   CN2    | VGA feature        |   CN10   |
          |                 |          | connector          |          |
          |-----------------+----------+--------------------+----------|
          | Serial port 1   |   CN3    | Multifunction      |   CN11   |
          |                 |          | connector          |          |
          |-----------------+----------+--------------------+----------|
          | Serial port 2   |   CN4    | Reset switch       |   CN12   |
          |-----------------+----------+--------------------+----------|
          | PS/2 mouse port |   CN5    | IDE interface LED  |   CN13   |
          |-----------------+----------+--------------------+----------|
          | Power           |   CN6    | EPA power saving   |   CN14   |
          | controller box  |          | relay              |          |
          | connector       |          |                    |          |
          |-----------------+----------+--------------------+----------|
          | Power saving    |   CN7    | Riser Card         |   SL1    |
          | controller      |          |                    |          |
          | connector       |          |                    |          |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 USER CONFIGURABLE SETTINGS                 |
          |------------------------------------------------------------|
          |               Function               | Jumper |  Position  |
          |--------------------------------------+--------+------------|
          | » | CMOS memory normal operation     |   J2   | pins 1 & 2 |
          |   |                                  |        |   closed   |
          |---+----------------------------------+--------+------------|
          |   | CMOS memory clear                |   J2   | pins 2 & 3 |
          |   |                                  |        |   closed   |
          |---+----------------------------------+--------+------------|
          | » | On board battery enabled         |  J13   |   Closed   |
          |---+----------------------------------+--------+------------|
          |   | On board battery disabled        |  J13   |    Open    |
          |---+----------------------------------+--------+------------|
          | » | DRAM parity disabled             |  J14   |   Closed   |
          |---+----------------------------------+--------+------------|
          |   | DRAM parity enabled              |  J14   |    Open    |
          |---+----------------------------------+--------+------------|
          | » | On board VGA enabled             |  J20   | pins 1 & 2 |
          |   |                                  |        |   closed   |
          |---+----------------------------------+--------+------------|
          |   | On board VGA disabled            |  J20   | pins 2 & 3 |
          |   |                                  |        |   closed   |
          |---+----------------------------------+--------+------------|
          | » | Keylock disabled                 |  J27   | pins 1 & 2 |
          |   |                                  |        |   closed   |
          |---+----------------------------------+--------+------------|
          |   | Keylock enabled                  |  J27   | pins 2 & 3 |
          |   |                                  |        |   closed   |
          |---+----------------------------------+--------+------------|
          | » | On board memory enabled          |  J28   | pins 1 & 2 |
          |   |                                  |        |   closed   |
          |---+----------------------------------+--------+------------|
          |   | On board memory disabled         |  J28   | pins 2 & 3 |
          |   |                                  |        |   closed   |
          |---+----------------------------------+--------+------------|
          | » | Floppy/hard drive controller     |  J29   |   Closed   |
          |   | enabled                          |        |            |
          |---+----------------------------------+--------+------------|
          |   | Floppy/hard drive controller     |  J29   |    Open    |
          |   | disabled                         |        |            |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     DRAM CONFIGURATION                     |
          |------------------------------------------------------------|
          |  Size   |    Bank 0    |      Bank 1       |    Bank 2     |
          |---------+--------------+-------------------+---------------|
          |   4MB   |  (4) 44256   |       NONE        |     NONE      |
          |---------+--------------+-------------------+---------------|
          |   8MB   |  (4) 44256   |    (1) 1M x 36    |     NONE      |
          |---------+--------------+-------------------+---------------|
          |  12MB   |  (4) 44256   |    (1) 1M x 36    |  (1) 1M x 36  |
          |---------+--------------+-------------------+---------------|
          |  12MB   |  (4) 44256   |    (1) 2M x 36    |     NONE      |
          |---------+--------------+-------------------+---------------|
          |  16MB   |  (4) 44256   |    (1) 1M x 36    |  (1) 2M x 36  |
          |---------+--------------+-------------------+---------------|
          |  20MB   |  (4) 44256   |    (1) 4M x 36    |     NONE      |
          |---------+--------------+-------------------+---------------|
          |  20MB   |  (4) 44256   |    (1) 2M x 36    |  (1) 2M x 36  |
          |---------+--------------+-------------------+---------------|
          |  24MB   |  (4) 44256   |    (1) 1M x 36    |  (1) 4M x 36  |
          |---------+--------------+-------------------+---------------|
          |  36MB   |  (4) 44256   |    (1) 4M x 36    |  (1) 4M x 36  |
          |------------------------------------------------------------|
          | Note: Bank 0 and parity chips are factory installed and    |
          | are non configurable.                                      |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                    CACHE CONFIGURATION                     |
          |------------------------------------------------------------|
          | Size  |   Bank 0    |   Bank 1   |   TAG (7   |   TAG (8   |
          |       |             |            |    bit)    |    bit)    |
          |-------+-------------+------------+------------+------------|
          | 64KB  | (4) 8K x 8  | (4) 8K x 8 | (1) 8K x 8 | (1) 16K x  |
          |       |             |            |            |     4      |
          |-------+-------------+------------+------------+------------|
          | 128KB | (4) 32K x 8 |    NONE    | (1) 8K x 8 | (1) 16K x  |
          |       |             |            |            |     4      |
          |-------+-------------+------------+------------+------------|
          | 256KB | (4) 32K x 8 | (4) 32K x  | (1) 32K x  | (1) 16K x  |
          |       |             |     8      |     8      |     4      |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 CACHE JUMPER CONFIGURATION                 |
          |------------------------------------------------------------|
          | Size  |     J5      |     J6     |    J23     |    J24     |
          |-------+-------------+------------+------------+------------|
          | 64KB  | pins 2 & 3  | pins 2 & 3 |    N/A     | pins 1 & 2 |
          |       |   closed    |   closed   |            |   closed   |
          |-------+-------------+------------+------------+------------|
          | 128KB | pins 1 & 2  | pins 2 & 3 | pins 2 & 3 | pins 2 & 3 |
          |       |   closed    |   closed   |   closed   |   closed   |
          |-------+-------------+------------+------------+------------|
          | 256KB | pins 1 & 2  | pins 1 & 2 | pins 1 & 2 | pins 2 & 3 |
          |       |   closed    |   closed   |   closed   |   closed   |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |              CACHE JUMPER CONFIGURATION (TAG)              |
          |------------------------------------------------------------|
          |      Type       |       J5       |       J6       |  J24   |
          |-----------------+----------------+----------------+--------|
          |  Write through  |      N/A       |   pins 2 & 3   |  N/A   |
          |                 |                |     closed     |        |
          |-----------------+----------------+----------------+--------|
          |  Write back/7   |   pins 2 & 3   |   pins 1 & 2   |  Open  |
          |       bit       |     closed     |     closed     |        |
          |-----------------+----------------+----------------+--------|
          |  Write back/8   |   pins 1 & 2   |   pins 2 & 3   | Closed |
          |       bit       |     closed     |     closed     |        |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                   CPU TYPE CONFIGURATION                   |
          |------------------------------------------------------------|
          |      Type      |      J9      |     J10      |     J11     |
          |----------------+--------------+--------------+-------------|
          | 80486SX (PQFP) |     Open     |    Closed    |    Open     |
          |----------------+--------------+--------------+-------------|
          | 80486SX (PGA)  |     Open     |     Open     |    Open     |
          |----------------+--------------+--------------+-------------|
          |    80487SX     |     Open     |    Closed    |   Closed    |
          |----------------+--------------+--------------+-------------|
          |  80486DX/DX2   |    Closed    |    Closed    |    Open     |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                  CPU SPEED CONFIGURATION                   |
          |------------------------------------------------------------|
          |           Speed            |              J17              |
          |----------------------------+-------------------------------|
          |           25MHz            |       pins 3 - 7 closed       |
          |----------------------------+-------------------------------|
          |           33MHz            |       pins 4 - 8 closed       |
          |----------------------------+-------------------------------|
          |           50iMHz           |       pins 2 - 5 closed       |
          |----------------------------+-------------------------------|
          |           66iMHz           |       pins 3 - 6 closed       |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 VIDEO MEMORY CONFIGURATION                 |
          |------------------------------------------------------------|
          |     Size      |        Bank 0        |       Bank 1        |
          |---------------+----------------------+---------------------|
          |     512KB     |     (4) 256K x 4     |        NONE         |
          |---------------+----------------------+---------------------|
          |      1MB      |     (4) 256K x 4     |    (4) 256K x 4     |
          |------------------------------------------------------------|
          | Note: Bank 0 is factory installed and is non configurable. |
          +------------------------------------------------------------+
