# ALARIS
LEOPARD 486SLC2 REV. C
Processor 80486SLC2
Processor Speed 50(internal)/66(internal)MHz
Chip Set OPTI
Max. Onboard DRAM 16MB
Cache 64/128KB
BIOS AMI/MR
Dimensions 330mm x 218mm
I/O Options 32-bit VESA local bus slots (2)
NPU Options 80387SX

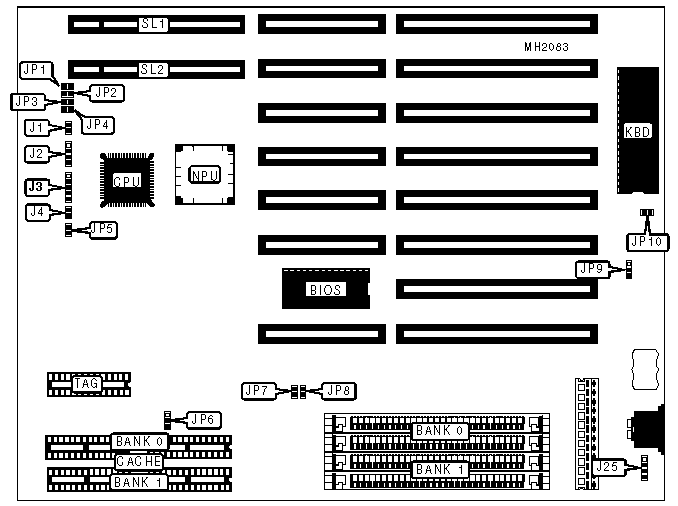

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|---------------+----------+----------------------+----------|
| Reset switch | J1 | Turbo LED | JP5 |
|---------------+----------+----------------------+----------|
| Speaker | J2 | External battery | J25 |
| | | connector | |
|---------------+----------+----------------------+----------|
| Power LED & | J3 | 32-bit VESA Local | SL1, SL2 |
| keylock | | bus slots | |
|---------------+----------+----------------------+----------|
| Turbo switch | J4 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|--------------------------------------+--------+------------|
| » | Factory configured - do not | JP1 | Open |
| | alter | | |
|---+----------------------------------+--------+------------|
| » | Factory configured - do not | JP2 | Open |
| | alter | | |
|---+----------------------------------+--------+------------|
| » | Factory configured - do not | JP3 | Open |
| | alter | | |
|---+----------------------------------+--------+------------|
| » | Factory configured - do not | JP4 | Closed |
| | alter | | |
|---+----------------------------------+--------+------------|
| » | CMOS normal operation | JP9 | pins 2 & 3 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | CMOS memory clear | JP9 | pins 1 & 2 |
| | | | closed |
|---+----------------------------------+--------+------------|
| » | Factory configured - do not | JP10 | Open |
| | alter | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 512KB | (2) 256K x 9 | NONE |
|------------------+--------------------+--------------------|
| 1MB | (2) 256K x 9 | (2) 256K x 9 |
|------------------+--------------------+--------------------|
| 2MB | (2) 1M x 9 | NONE |
|------------------+--------------------+--------------------|
| 4MB | (2) 1M x 9 | (2) 1M x 9 |
|------------------+--------------------+--------------------|
| 8MB | (2) 4M x 9 | NONE |
|------------------+--------------------+--------------------|
| 10MB | (2) 1M x 9 | (2) 4M x 9 |
|------------------+--------------------+--------------------|
| 16MB | (2) 4M x 9 | (2) 4M x 9 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | TAG |
|------------+---------------+---------------+---------------|
| 64KB | (2) 32K x 8 | NONE | (1) 8K x 8 |
|------------+---------------+---------------+---------------|
| 128KB | (2) 32K x 8 | (2) 32K x 8 | (1) 32K x 8 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE JUMPER CONFIGURATION |
|------------------------------------------------------------|
| Size | JP6 |
|----------------------------+-------------------------------|
| 64KB | pins 2 & 3 closed |
|----------------------------+-------------------------------|
| 128KB | pins 1 & 2 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED CONFIGURATION |
|------------------------------------------------------------|
| Speed | JP7 | JP8 |
|--------------------+-------------------+-------------------|
| 50iMHz | Open | Closed |
|--------------------+-------------------+-------------------|
| 66iMHz | Closed | Open |
+------------------------------------------------------------+
