# ADVANCED INTEGRATION RESEARCH, INC.
486SH REV. 3.0
Processor 80486SX/80487SX/ODP486SX/80486DX/80486DX2/80486DX4/Pentium
Overdrive
Processor 25/33/40/50(internal)/50/66(internal)MHz
Speed
Chip Set SIS
Max. 128MB
Onboard
DRAM
Cache 128/256/512KB
BIOS AMI
Dimensions 254mm x 218mm
I/O 32-bit VESA local bus slots (3)
Options
NPU None
Options

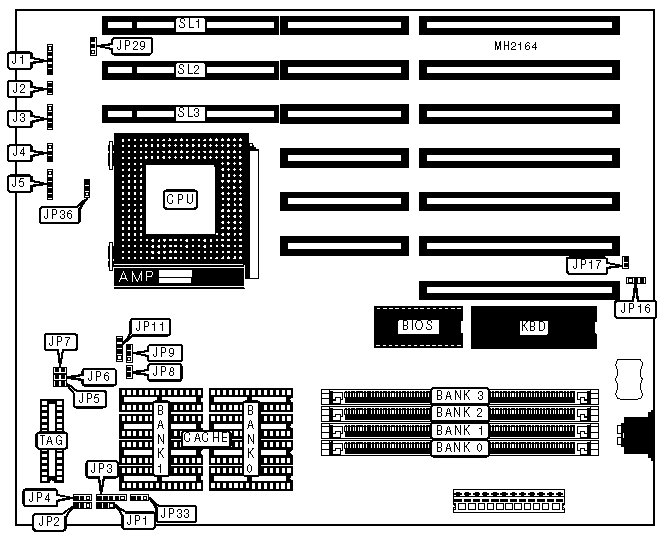

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|---------------+----------+----------------------+----------|
| Power LED & | J1 | Turbo LED | J4 |
| keylock | | | |
|---------------+----------+----------------------+----------|
| Reset switch | J2 | Turbo switch | J5 |
|---------------+----------+----------------------+----------|
| Speaker | J3 | 32-bit VESA Local | SL1 - |
| | | bus slots | SL3 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|--------------------------------------+--------+------------|
| » | CMOS memory normal operation | JP16 | pins 1 & 2 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | CMOS memory clear | JP16 | pins 2 & 3 |
| | | | closed |
|---+----------------------------------+--------+------------|
| » | Monitor type select | JP17 | Open |
| | VGA/EGA/monochrome | | |
|---+----------------------------------+--------+------------|
| | Monitor type select CGA | JP17 | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 | Bank 3 |
|------+-------------+-------------+------------+------------|
| 2MB | (1) 512K x | NONE | NONE | NONE |
| | 36 | | | |
|------+-------------+-------------+------------+------------|
| 4MB | (1) 512K x | (1) 512K x | NONE | NONE |
| | 36 | 36 | | |
|------+-------------+-------------+------------+------------|
| 4MB | (1) 1M x 36 | NONE | NONE | NONE |
|------+-------------+-------------+------------+------------|
| 6MB | (1) 512K x | (1) 1M x 36 | NONE | NONE |
| | 36 | | | |
|------+-------------+-------------+------------+------------|
| 8MB | (1) 512K x | (1) 512K x | (1) 1M x | NONE |
| | 36 | 36 | 36 | |
|------+-------------+-------------+------------+------------|
| 8MB | (1) 1M x 36 | (1) 1M x 36 | NONE | NONE |
|------+-------------+-------------+------------+------------|
| 8MB | (1) 2M x 36 | NONE | NONE | NONE |
|------+-------------+-------------+------------+------------|
| 12MB | (1) 512K x | (1) 512K x | (1) 1M x | (1) 1M x |
| | 36 | 36 | 36 | 36 |
|------+-------------+-------------+------------+------------|
| 12MB | (1) 1M x 36 | (1) 1M x 36 | (1) 1M x | NONE |
| | | | 36 | |
|------+-------------+-------------+------------+------------|
| 16MB | (1) 2M x 36 | (1) 2M x 36 | NONE | NONE |
|------+-------------+-------------+------------+------------|
| 16MB | (1) 4M x 36 | NONE | NONE | NONE |
|------+-------------+-------------+------------+------------|
| 16MB | (1) 1M x 36 | (1) 1M x 36 | (1) 1M x | (1) 1M x |
| | | | 36 | 36 |
|------+-------------+-------------+------------+------------|
| 18MB | (1) 512K x | (1) 4M x 36 | NONE | NONE |
| | 36 | | | |
|------+-------------+-------------+------------+------------|
| 20MB | (1) 512K x | (1) 512K x | (1) 4M x | NONE |
| | 36 | 36 | 36 | |
|------+-------------+-------------+------------+------------|
| 20MB | (1) 1M x 36 | (1) 4M x 36 | NONE | NONE |
|------+-------------+-------------+------------+------------|
| 24MB | (1) 512K x | (1) 512K x | (1) 1M x | (1) 4M x |
| | 36 | 36 | 36 | 36 |
|------+-------------+-------------+------------+------------|
| 24MB | (1) 2M x 36 | (1) 2M x 36 | (1) 2M x | NONE |
| | | | 36 | |
|------+-------------+-------------+------------+------------|
| 24MB | (1) 1M x 36 | (1) 1M x 36 | (1) 4M x | NONE |
| | | | 36 | |
|------+-------------+-------------+------------+------------|
| 32MB | (1) 2M x 36 | (1) 2M x 36 | (1) 2M x | (1) 2M x |
| | | | 36 | 36 |
|------+-------------+-------------+------------+------------|
| 32MB | (1) 4M x 36 | (1) 4M x 36 | NONE | NONE |
|------+-------------+-------------+------------+------------|
| 32MB | (1) 8M x 36 | NONE | NONE | NONE |
|------+-------------+-------------+------------+------------|
| 36MB | (1) 1M x 36 | (1) 4M x 36 | (1) 4M x | NONE |
| | | | 36 | |
|------+-------------+-------------+------------+------------|
| 36MB | (1) 1M x 36 | (1) 8M x 36 | NONE | NONE |
|------+-------------+-------------+------------+------------|
| 36MB | (1) 512K x | (1) 512K x | (1) 4M x | (1) 4M x |
| | 36 | 36 | 36 | 36 |
|------+-------------+-------------+------------+------------|
| 40MB | (1) 1M x 36 | (1) 1M x 36 | (1) 8M x | NONE |
| | | | 36 | |
|------+-------------+-------------+------------+------------|
| 40MB | (1) 1M x 36 | (1) 1M x 36 | (1) 4M x | (1) 4M x |
| | | | 36 | 36 |
|------+-------------+-------------+------------+------------|
| 48MB | (1) 4M x 36 | (1) 8M x 36 | NONE | NONE |
|------+-------------+-------------+------------+------------|
| 48MB | (1) 4M x 36 | (1) 4M x 36 | (1) 4M x | NONE |
| | | | 36 | |
|------+-------------+-------------+------------+------------|
| 64MB | (1) 4M x 36 | (1) 4M x 36 | (1) 8M x | NONE |
| | | | 36 | |
|------+-------------+-------------+------------+------------|
| 64MB | (1) 16M x | NONE | NONE | NONE |
| | 36 | | | |
|------+-------------+-------------+------------+------------|
| 64MB | (1) 4M x 36 | (1) 4M x 36 | (1) 4M x | (1) 4M x |
| | | | 36 | 36 |
|------+-------------+-------------+------------+------------|
| 64MB | (1) 8M x 36 | (1) 8M x 36 | NONE | NONE |
|------+-------------+-------------+------------+------------|
| 68MB | (1) 1M x 36 | (1) 16M x | NONE | NONE |
| | | 36 | | |
|------+-------------+-------------+------------+------------|
| 68MB | (1) 1M x 36 | (1) 8M x 36 | (1) 8M x | NONE |
| | | | 36 | |
|------+-------------+-------------+------------+------------|
| 72MB | (1) 1M x 36 | (1) 1M x 36 | (1) 16M x | NONE |
| | | | 36 | |
|------+-------------+-------------+------------+------------|
| 72MB | (1) 1M x 36 | (1) 1M x 36 | (1) 8M x | (1) 8M x |
| | | | 36 | 36 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION (CON’T) |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 | Bank 3 |
|-------+-------------+------------+------------+------------|
| 80MB | (1) 4M x 36 | (1) 8M x | (1) 8M x | NONE |
| | | 36 | 36 | |
|-------+-------------+------------+------------+------------|
| 80MB | (1) 4M x 36 | (1) 16M x | NONE | NONE |
| | | 36 | | |
|-------+-------------+------------+------------+------------|
| 96MB | (1) 4M x 36 | (1) 4M x | (1) 16M x | NONE |
| | | 36 | 36 | |
|-------+-------------+------------+------------+------------|
| 96MB | (1) 4M x 36 | (1) 4M x | (1) 8M x | (1) 8M x |
| | | 36 | 36 | 36 |
|-------+-------------+------------+------------+------------|
| 96MB | (1) 8M x 36 | (1) 8M x | (1) 8M x | NONE |
| | | 36 | 36 | |
|-------+-------------+------------+------------+------------|
| 128MB | (1) 8M x 36 | (1) 8M x | (1) 8M x | (1) 8M x |
| | | 36 | 36 | 36 |
|-------+-------------+------------+------------+------------|
| 128MB | (1) 16M x | (1) 16M x | NONE | NONE |
| | 36 | 36 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | TAG |
|------------+---------------+---------------+---------------|
| 128KB | (4) 32K x 8 | NONE | (1) 8K x 8 |
|------------+---------------+---------------+---------------|
| 256KB | (4) 32K x 8 | (4) 32K x 8 | (1) 32K x 8 |
|------------+---------------+---------------+---------------|
| 512KB | (4) 128K x 8 | NONE | (1) 32K x 8 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE JUMPER CONFIGURATION |
|------------------------------------------------------------|
| Size | JP1 | JP2 | JP3 | JP4 | JP33 |
|---------+---------+---------+--------------+-------+-------|
| 128KB | 1 & 2 | 1 & 2 | 1 & 2, 3 & 4 | 1 & 2 | 2 & 3 |
|---------+---------+---------+--------------+-------+-------|
| 256KB | 2 & 3 | 2 & 3 | 2 & 3, 4 & 5 | 1 & 2 | 2 & 3 |
|---------+---------+---------+--------------+-------+-------|
| 512KB | 1 & 2 | 2 & 3 | 1 & 2, 3 & 4 | 2 & 3 | 2 & 3 |
|------------------------------------------------------------|
| Note: Pins designated should be in the closed position. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU TYPE CONFIGURATION |
|------------------------------------------------------------|
| Type | JP8 | JP9 | JP11 | JP36 |
|-------------+------------+--------+------------+-----------|
| 80486SX | pins 2 & 3 | Open | Open | pins 1 & |
| | closed | | | 2 closed |
|-------------+------------+--------+------------+-----------|
| 80487SX | pins 1 & 2 | Closed | pins 2 & 3 | pins 1 & |
| | closed | | closed | 2 closed |
|-------------+------------+--------+------------+-----------|
| ODP486SX | pins 1 & 2 | Closed | pins 2 & 3 | pins 1 & |
| | closed | | closed | 2 closed |
|-------------+------------+--------+------------+-----------|
| 80486DX/DX2 | pins 1 & 2 | Closed | pins 3 & 4 | pins 1 & |
| | closed | | closed | 2 closed |
|-------------+------------+--------+------------+-----------|
| 80486DX4 | pins 1 & 2 | Closed | pins 3 & 4 | pins 2 & |
| | closed | | closed | 3 closed |
|-------------+------------+--------+------------+-----------|
| Pentium | pins 1 & 2 | Closed | pins 2 & 3 | pins 1 & |
| Overdrive | closed | | closed | 2 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED CONFIGURATION |
|------------------------------------------------------------|
| Speed | JP5 | JP6 | JP7 | JP29 |
|----------+---------+---------+---------+-------------------|
| 25MHz | Closed | Closed | Open | pins 1 & 2 closed |
|----------+---------+---------+---------+-------------------|
| 33MHz | Open | Closed | Closed | pins 1 & 2 closed |
|----------+---------+---------+---------+-------------------|
| 40MHz | Closed | Open | Open | pins 2 & 3 closed |
|----------+---------+---------+---------+-------------------|
| 50iMHz | Closed | Closed | Open | pins 1 & 2 closed |
|----------+---------+---------+---------+-------------------|
| 50MHz | Open | Open | Closed | pins 2 & 3 closed |
|----------+---------+---------+---------+-------------------|
| 66iMHz | Open | Closed | Closed | pins 1 & 2 closed |
+------------------------------------------------------------+
