# ADVANCED LOGIC RESEARCH, INC.
EVOLUTION IV 4E/33S
Processor 80486SX/80486DX2/Pentium Overdrive
Processor 33/66(internal)MHz
Speed
Chip Set OPTI
Max. Onboard 256MB
DRAM
Cache 256KB
BIOS AMI
Dimensions 330mm x 218mm
I/O Options 32-bit external cache card, 32-bit VESA local bus
slots (2), floppy drive interface,
IDE interface, parallel port, PS/2 mouse port,
serial ports (2)
NPU Options None

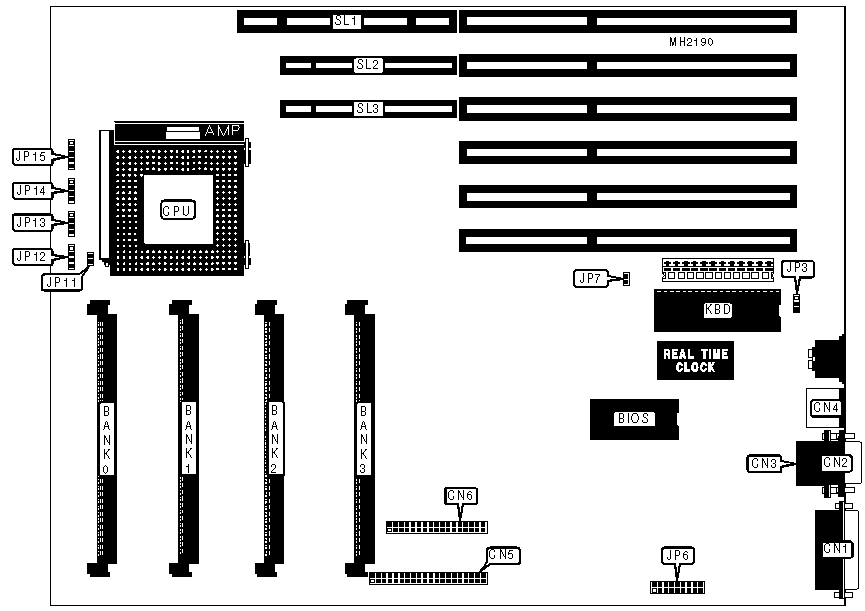

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|------------------+----------+-------------------+----------|
| Parallel port | CN1 | Speaker | JP12 |
|------------------+----------+-------------------+----------|
| Serial port 1 | CN2 | Chassis fan power | JP13 |
|------------------+----------+-------------------+----------|
| Serial port 2 | CN3 | IDE interface LED | JP14 |
|------------------+----------+-------------------+----------|
| PS/2 mouse port | CN4 | Front panel | JP15 |
| | | connector | |
|------------------+----------+-------------------+----------|
| IDE interface | CN5 | 32-bit external | SL1 |
| | | cache card | |
|------------------+----------+-------------------+----------|
| Floppy drive | CN6 | 32-bit VESA local | SL2 & |
| interface | | bus slots | SL3 |
|------------------+----------+-------------------+----------|
| Reset switch | JP11 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|---------------------------------------+---------+----------|
| » | Factory configured - do not alter | JP3 | Open |
|---+-----------------------------------+---------+----------|
| » | Factory configured - do not alter | JP6 | Open |
|---+-----------------------------------+---------+----------|
| » | CMOS memory normal operation | JP7 | Open |
|---+-----------------------------------+---------+----------|
| | CMOS memory clear | JP7 | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 | Bank 3 |
|-------+-------------+------------+------------+------------|
| 4MB | (1) 1M x 36 | NONE | NONE | NONE |
|-------+-------------+------------+------------+------------|
| 8MB | (1) 1M x 36 | (1) 1M x | NONE | NONE |
| | | 36 | | |
|-------+-------------+------------+------------+------------|
| 12MB | (1) 1M x 36 | (1) 1M x | (1) 1M x | NONE |
| | | 36 | 36 | |
|-------+-------------+------------+------------+------------|
| 16MB | (1) 1M x 36 | (1) 1M x | (1) 1M x | (1) 1M x |
| | | 36 | 36 | 36 |
|-------+-------------+------------+------------+------------|
| 16MB | (1) 4M x 36 | NONE | NONE | NONE |
|-------+-------------+------------+------------+------------|
| 20MB | (1) 1M x 36 | (1) 4M x | NONE | NONE |
| | | 36 | | |
|-------+-------------+------------+------------+------------|
| 24MB | (1) 1M x 36 | (1) 1M x | (1) 4M x | NONE |
| | | 36 | 36 | |
|-------+-------------+------------+------------+------------|
| 24MB | (1) 1M x 36 | (1) 4M x | (1) 1M x | NONE |
| | | 36 | 36 | |
|-------+-------------+------------+------------+------------|
| 28MB | (1) 1M x 36 | (1) 1M x | (1) 4M x | (1) 1M x |
| | | 36 | 36 | 36 |
|-------+-------------+------------+------------+------------|
| 28MB | (1) 1M x 36 | (1) 4M x | (1) 1M x | (1) 1M x |
| | | 36 | 36 | 36 |
|-------+-------------+------------+------------+------------|
| 32MB | (1) 4M x 36 | (1) 4M x | NONE | NONE |
| | | 36 | | |
|-------+-------------+------------+------------+------------|
| 36MB | (1) 1M x 36 | (1) 4M x | (1) 4M x | NONE |
| | | 36 | 36 | |
|-------+-------------+------------+------------+------------|
| 36MB | (1) 4M x 36 | (1) 4M x | (1) 1M x | NONE |
| | | 36 | 36 | |
|-------+-------------+------------+------------+------------|
| 40MB | (1) 1M x 36 | (1) 1M x | (1) 4M x | (1) 4M x |
| | | 36 | 36 | 36 |
|-------+-------------+------------+------------+------------|
| 40MB | (1) 1M x 36 | (1) 4M x | (1) 4M x | (1) 1M x |
| | | 36 | 36 | 36 |
|-------+-------------+------------+------------+------------|
| 40MB | (1) 4M x 36 | (1) 4M x | (1) 1M x | (1) 1M x |
| | | 36 | 36 | 36 |
|-------+-------------+------------+------------+------------|
| 48MB | (1) 4M x 36 | (1) 4M x | (1) 4M x | NONE |
| | | 36 | 36 | |
|-------+-------------+------------+------------+------------|
| 52MB | (1) 1M x 36 | (1) 4M x | (1) 4M x | (1) 4M x |
| | | 36 | 36 | 36 |
|-------+-------------+------------+------------+------------|
| 52MB | (1) 4M x 36 | (1) 4M x | (1) 4M x | (1) 1M x |
| | | 36 | 36 | 36 |
|-------+-------------+------------+------------+------------|
| 64MB | (1) 16M x | NONE | NONE | NONE |
| | 36 | | | |
|-------+-------------+------------+------------+------------|
| 128MB | (1) 16M x | (1) 16M x | NONE | NONE |
| | 36 | 36 | | |
|-------+-------------+------------+------------+------------|
| 192MB | (1) 16M x | (1) 16M x | (1) 16M x | NONE |
| | 36 | 36 | 36 | |
|-------+-------------+------------+------------+------------|
| 256MB | (1) 16M x | (1) 16M x | (1) 16M x | (1) 16M x |
| | 36 | 36 | 36 | 36 |
+------------------------------------------------------------+
