# ACER, INC.
VI12G
Processor 80486SX/80486DX/80486DX2
Processor 25/33/40/50(internal)/50/66(internal)MHz
Speed
Chip Set Acer
Max. Onboard 128MB
DRAM
Cache 128/256KB
BIOS Award
Dimensions 254mm x 218mm
I/O Options 32-bit VESA local bus slots (3), green PC
connector
NPU Options None

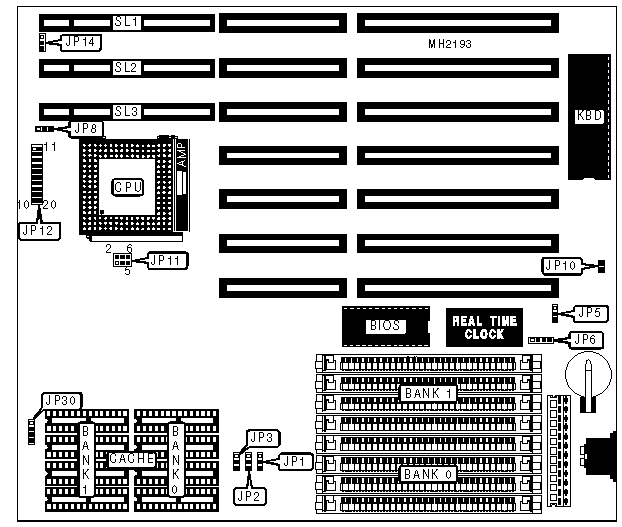

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-------------------+-----------+----------------+-----------|
| External battery | JP6 | Break switch | JP12 |
| | | | (pins |
| | | | 16-18) |
|-------------------+-----------+----------------+-----------|
| Power LED & | JP12 | Reset switch | JP12 |
| keylock | (pins | | (pins |
| | 1-5) | | 19-20) |
|-------------------+-----------+----------------+-----------|
| Speaker | JP12 | Chassis fan | JP30 |
| | (pins | power | |
| | 7-10) | | |
|-------------------+-----------+----------------+-----------|
| Green PC | JP12 | 32-bit VESA | SL1 - SL3 |
| connector | (pins | local bus | |
| | 12-13) | slots | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|--------------------------------------+--------+------------|
| » | CMOS memory normal operation | JP5 | Open |
|---+----------------------------------+--------+------------|
| | CMOS memory clear | JP5 | pins 1 & 2 |
| | | | closed |
|---+----------------------------------+--------+------------|
| » | Factory configured - do not | JP8 | Open |
| | alter | | |
|---+----------------------------------+--------+------------|
| » | Factory configured - do not | JP10 | Open |
| | alter | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 1MB | (4) 256K x 9 | NONE |
|------------------+--------------------+--------------------|
| 1MB | NONE | (4) 256K x 9 |
|------------------+--------------------+--------------------|
| 2MB | (4) 256K x 9 | (4) 256K x 9 |
|------------------+--------------------+--------------------|
| 4MB | (4) 1M x 9 | NONE |
|------------------+--------------------+--------------------|
| 5MB | (4) 256K x 9 | (4) 1M x 9 |
|------------------+--------------------+--------------------|
| 5MB | (4) 1M x 9 | (4) 256K x 9 |
|------------------+--------------------+--------------------|
| 8MB | (4) 1M x 9 | (4) 1M x 9 |
|------------------+--------------------+--------------------|
| 16MB | (4) 4M x 9 | NONE |
|------------------+--------------------+--------------------|
| 16MB | NONE | (4) 4M x 9 |
|------------------+--------------------+--------------------|
| 17MB | (4) 256K x 9 | (4) 4M x 9 |
|------------------+--------------------+--------------------|
| 17MB | (4) 4M x 9 | (4) 256K x 9 |
|------------------+--------------------+--------------------|
| 20MB | (4) 1M x 9 | (4) 4M x 9 |
|------------------+--------------------+--------------------|
| 20MB | (4) 4M x 9 | (4) 1M x 9 |
|------------------+--------------------+--------------------|
| 32MB | (4) 4M x 9 | (4) 4M x 9 |
|------------------+--------------------+--------------------|
| 64MB | (4) 16M x 9 | NONE |
|------------------+--------------------+--------------------|
| 65MB | (4) 16M x 9 | (4) 256K x 9 |
|------------------+--------------------+--------------------|
| 68MB | (4) 16M x 9 | (4) 1M x 9 |
|------------------+--------------------+--------------------|
| 80MB | (4) 16M x 9 | (4) 4M x 9 |
|------------------+--------------------+--------------------|
| 128MB | (4) 16M x 9 | (4) 16M x 9 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 128KB | (4) 32K x 8 | NONE |
|------------------+--------------------+--------------------|
| 256KB | (4) 32K x 8 | (4) 32K x 8 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE JUMPER CONFIGURATION |
|------------------------------------------------------------|
| Size | JP1 | JP2 | JP3 |
|-------+-----------------+-----------------+----------------|
| 128KB | pins 2 & 3 | pins 2 & 3 | pins 1 & 2 |
| | closed | closed | closed |
|-------+-----------------+-----------------+----------------|
| 256KB | pins 1 & 2 | pins 1 & 2 | pins 2 & 3 |
| | closed | closed | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED CONFIGURATION |
|------------------------------------------------------------|
| Speed | JP11 |
|--------------------------+---------------------------------|
| 25MHz | pins 1 & 2, 3 & 4, 5 & 6 closed |
|--------------------------+---------------------------------|
| 33MHz | pins 1 & 2, 3 & 4 closed |
|--------------------------+---------------------------------|
| 40MHz | pins 1 & 2, 5 & 6 closed |
|--------------------------+---------------------------------|
| 50iMHz | pins 1 & 2, 3 & 4, 5 & 6 closed |
|--------------------------+---------------------------------|
| 50MHz | pins 1 & 2 closed |
|--------------------------+---------------------------------|
| 66iMHz | pins 1 & 2, 3 & 4 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BUS SPEED CONFIGURATION |
|------------------------------------------------------------|
| CPU speed | JP14 |
|----------------------------+-------------------------------|
| <=33MHz | pins 1 & 2 closed |
|----------------------------+-------------------------------|
| >33MHz | pins 2 & 3 closed |
+------------------------------------------------------------+
