# ADVANCED LOGIC RESEARCH, INC.
DART CLASSIC
Processor 80286 (on CPU card) (exact location unidentified)
Processor 12MHz
Speed
Chip Set ALR
Max. Onboard 5MB
DRAM
Cache None
BIOS Phoenix
Dimensions 330mm x 218mm
I/O Options 16-bit external CPU card (exact location
unidentified), floppy drive interface,
hard drive interface, parallel port, serial port
(on CPU card)
NPU Options 80287(on CPU card)

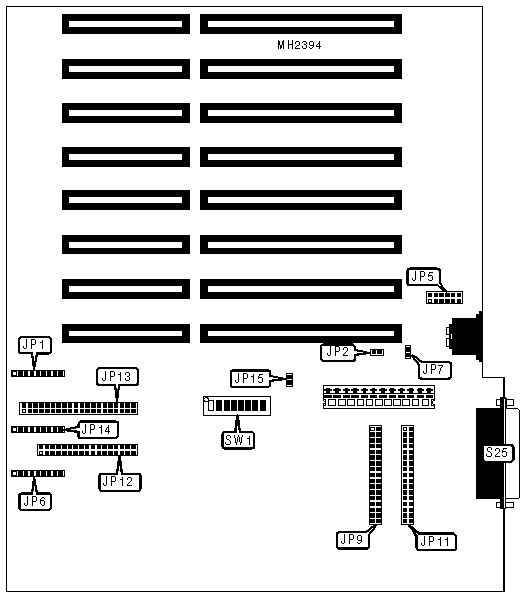

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|---------------+----------+----------------------+----------|
| Keylock | JP1 | LPT1 & LPT2 | JP11 |
|---------------+----------+----------------------+----------|
| Onboard power | JP2 | Floppy drive | JP12 |
| good | | interface | |
|---------------+----------+----------------------+----------|
| Keyboard | JP5 | Embedded AT hard | JP13 |
| connector | | drive interface | |
|---------------+----------+----------------------+----------|
| Speaker | JP6 | Hard drive LED | JP14 |
|---------------+----------+----------------------+----------|
| Reset switch | JP7 | Parallel port | S25 |
|---------------+----------+----------------------+----------|
| COM1 & COM2 | JP9 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper/Switch | Position |
|---------------------------------+---------------+----------|
| » | Floppy drive interface | JP15 | Open |
| | enabled | | |
|---+-----------------------------+---------------+----------|
| | Floppy drive interface | JP15 | Closed |
| | disabled | | |
|---+-----------------------------+---------------+----------|
| » | Embedded AT hard drive | SW1/5 | Off |
| | enabled | | |
|---+-----------------------------+---------------+----------|
| | Embedded AT hard drive | SW1/5 | On |
| | disabled | | |
|---+-----------------------------+---------------+----------|
| » | Factory configured - do not | SW1/6 | Off |
| | alter | | |
|---+-----------------------------+---------------+----------|
| » | Factory configured - do not | SW1/7 | Off |
| | alter | | |
|---+-----------------------------+---------------+----------|
| » | Factory configured - do not | SW1/8 | Off |
| | alter | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SERIAL PORT CONFIGURATION |
|------------------------------------------------------------|
| Setting | SW1/1 | SW1/2 |
|--------------------+-------------------+-------------------|
| COM1 | Off | On |
|--------------------+-------------------+-------------------|
| COM2 | On | Off |
|--------------------+-------------------+-------------------|
| Disabled | Off | Off |
+------------------------------------------------------------+
+------------------------------------------------------------+
| PARALLEL PORT CONFIGURATION |
|------------------------------------------------------------|
| Setting | SW1/3 | SW1/4 |
|--------------------+-------------------+-------------------|
| LPT1 | Off | On |
|--------------------+-------------------+-------------------|
| LPT2 | On | Off |
|--------------------+-------------------+-------------------|
| Disabled | Off | Off |
+------------------------------------------------------------+

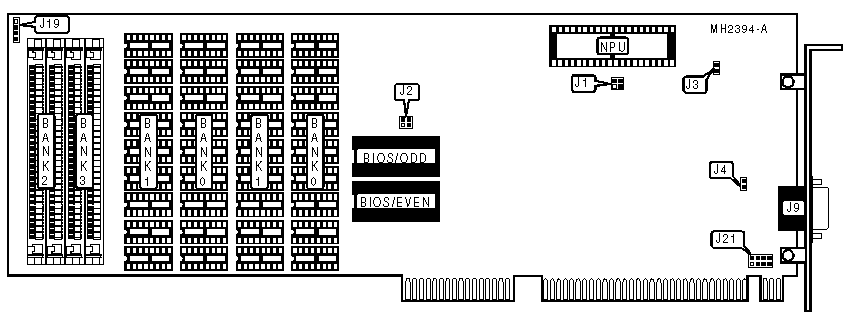

IMG IMG 2
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|---------------------+----------+----------------+----------|
| Keyboard or Serial | J9 | Panel LED | J21 |
|---------------------+----------+----------------+----------|
| Speaker | J19 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|---------------------------------------+---------+----------|
| » | Factory configured - do not alter | J1 | N/A |
|---+-----------------------------------+---------+----------|
| » | Factory configured - do not alter | J2 | N/A |
|---+-----------------------------------+---------+----------|
| » | Factory configured - do not alter | J3 | N/A |
|---+-----------------------------------+---------+----------|
| » | Monitor type select monochrome | J4 | Open |
|---+-----------------------------------+---------+----------|
| | Monitor type select color | J4 | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 | Bank 3 |
|-------+-------------+------------+------------+------------|
| 512KB | (18) 256K x | None | None | None |
| | 1 | | | |
|-------+-------------+------------+------------+------------|
| 640KB | (18) 256K x | (18) 64K x | None | None |
| | 1 | 1 | | |
|-------+-------------+------------+------------+------------|
| 1MB | (18) 256K x | (18) 256K | None | None |
| | 1 | x 1 | | |
|-------+-------------+------------+------------+------------|
| 1.5MB | (18) 256K x | (18) 64K x | (2) 256K x | (2) 256K x |
| | 1 | 1 | 9 | 9 |
|-------+-------------+------------+------------+------------|
| 2MB | (18) 256K x | (18) 256K | (2) 256K x | (2) 256K x |
| | 1 | x 1 | 9 | 9 |
|-------+-------------+------------+------------+------------|
| 4.5MB | (18) 256K x | (18) 64K x | (2) 1M x 9 | (2) 1M x 9 |
| | 1 | 1 | | |
|-------+-------------+------------+------------+------------|
| 5MB | (18) 256K x | (18) 256K | (2) 1M x 9 | (2) 1M x 9 |
| | 1 | x 1 | | |
+------------------------------------------------------------+
