# ADVANCED LOGIC RESEARCH, INC.
VIP286 (MODULAR PROCESSOR SYSTEM)
Processor 80286 (exact location unknown)/80386SX/80386DX
(on CPU cards)
Processor 12/16/20MHz
Speed
Chip Set ALR
Max. Onboard 5(286)/8(SX386)/16(386)MB
DRAM
Cache 16KB
BIOS Phoenix
Dimensions 330mm x 218mm
I/O Options 16-bit external CPU card, floppy drive interface,
embedded AT hard drive interface, serial port
NPU Options 80287/80387 (on CPU cards)

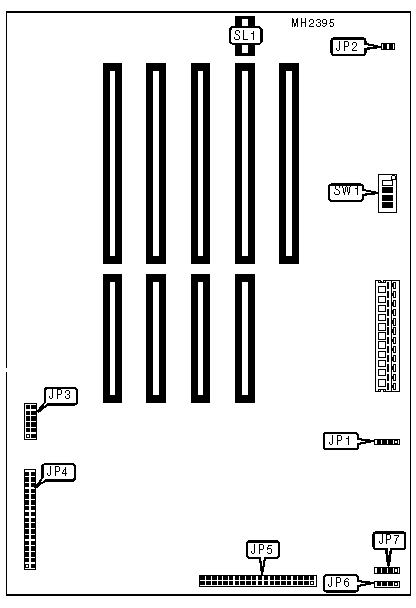

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|---------------+----------+----------------------+----------|
| Speaker | JP1 | Embedded AT hard | JP5 |
| | | drive interface | |
|---------------+----------+----------------------+----------|
| Reset switch | JP2 | Hard drive LED | JP6 |
|---------------+----------+----------------------+----------|
| Serial port | JP3 | Panel LED | JP7 |
|---------------+----------+----------------------+----------|
| Floppy drive | JP4 | External CPU card | SL1 |
| interface | | slot | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper/Switch | Position |
|------------------------------+----------------+------------|
| » | Floppy drive interface | SW1/1 | On |
| | enabled | | |
|----+-------------------------+----------------+------------|
| | Floppy drive interface | SW1/1 | Off |
| | disabled | | |
|----+-------------------------+----------------+------------|
| » | COM1 enabled | SW1/2 | On |
|----+-------------------------+----------------+------------|
| | COM1 disabled | SW1/2 | Off |
|----+-------------------------+----------------+------------|
| | COM2 disabled | SW1/3 | Off |
|----+-------------------------+----------------+------------|
| | COM2 enabled | SW1/3 | On |
|----+-------------------------+----------------+------------|
| » | Embedded AT hard drive | SW1/4 | Off |
| | disabled | | |
|----+-------------------------+----------------+------------|
| | Embedded AT hard drive | SW1/4 | On |
| | enabled | | |
|------------------------------------------------------------|
| Note: It is not possible to run COM1 & COM2 at any one |
| time. If SW1/2 is On, SW1/3 MUST be Off, likewise, if |
| SW1/3 is On, SW1/2 MUST be Off. However, both switches may |
| be off. |
+------------------------------------------------------------+

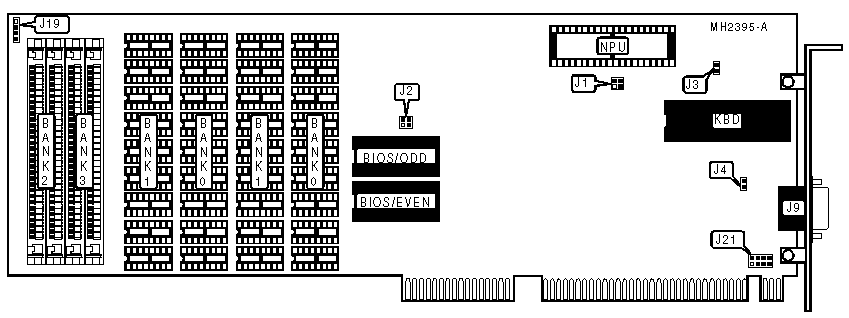

IMG IMG 2
+------------------------------------------------------------+
| CONNECTIONS (286 CPU CARD) |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|---------------------+----------+----------------+----------|
| Keyboard or Serial | J9 | Panel LED | J21 |
|---------------------+----------+----------------+----------|
| Speaker | J19 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS (286 CPU CARD) |
|------------------------------------------------------------|
| Function | Jumper | Position |
|---------------------------------------+---------+----------|
| » | Factory configured - do not alter | J1 | N/A |
|---+-----------------------------------+---------+----------|
| » | Factory configured - do not alter | J2 | N/A |
|---+-----------------------------------+---------+----------|
| » | Factory configured - do not alter | J3 | N/A |
|---+-----------------------------------+---------+----------|
| » | Monitor type select monochrome | J4 | Open |
|---+-----------------------------------+---------+----------|
| | Monitor type select color | J4 | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION (286 CPU CARD) |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 | Bank 3 |
|-------+--------------+-----------+------------+------------|
| 512KB | (18) 256K x | None | None | None |
| | 1 | | | |
|-------+--------------+-----------+------------+------------|
| 1MB | (18) 256K x | (18) 256K | None | None |
| | 1 | x 1 | | |
|-------+--------------+-----------+------------+------------|
| 2MB | (18) 256K x | (18) 256K | (2) 256K x | (2) 256K x |
| | 1 | x 1 | 9 | 9 |
|-------+--------------+-----------+------------+------------|
| 5MB | (18) 256K x | (18) 256K | (2) 1M x 9 | (2) 1M x 9 |
| | 1 | x 1 | | |
+------------------------------------------------------------+

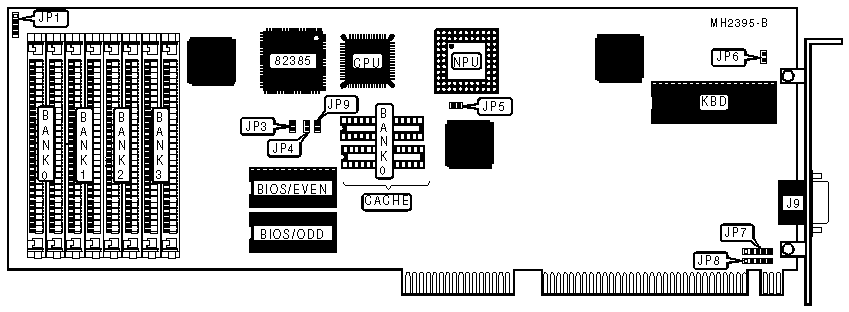

IMG IMG 3
+------------------------------------------------------------+
| CONNECTIONS (SX386 CPU CARD) |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|--------------------+----------+-----------------+----------|
| Serial port | J9 | Keyboard | JP7 |
|--------------------+----------+-----------------+----------|
| Speaker | JP1 | Panel LED | JP8 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS (SX386 CPU CARD) |
|------------------------------------------------------------|
| Function | Jumper | Position |
|---------------------------------------+---------+----------|
| » | Factory configured - do not alter | JP3 | N/A |
|---+-----------------------------------+---------+----------|
| » | Monitor type select monochrome | JP4 | Open |
|---+-----------------------------------+---------+----------|
| | Monitor type select color | JP4 | Closed |
|---+-----------------------------------+---------+----------|
| » | Factory configured - do not alter | JP5 | N/A |
|---+-----------------------------------+---------+----------|
| » | Factory configured - do not alter | JP6 | N/A |
|---+-----------------------------------+---------+----------|
| » | Factory configured - do not alter | JP9 | N/A |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION (SX386 CPU CARD) |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 | Bank 3 |
|-------+-------------+------------+------------+------------|
| 512KB | (2) 256K x | NONE | NONE | NONE |
| | 9 | | | |
|-------+-------------+------------+------------+------------|
| 1MB | (2) 256K x | (2) 256K x | NONE | NONE |
| | 9 | 9 | | |
|-------+-------------+------------+------------+------------|
| 1.5MB | (2) 256K x | (2) 256K x | (2) 256K x | NONE |
| | 9 | 9 | 9 | |
|-------+-------------+------------+------------+------------|
| 2MB | (2) 256K x | (2) 256K x | (2) 256K x | (2) 256K x |
| | 9 | 9 | 9 | 9 |
|-------+-------------+------------+------------+------------|
| 2MB | (2) 1M x 9 | NONE | NONE | NONE |
|-------+-------------+------------+------------+------------|
| 4MB | (2) 1M x 9 | (2) 1M x 9 | NONE | NONE |
|-------+-------------+------------+------------+------------|
| 6MB | (2) 1M x 9 | (2) 1M x 9 | (2) 1M x 9 | NONE |
|-------+-------------+------------+------------+------------|
| 8MB | (2) 1M x 9 | (2) 1M x 9 | (2) 1M x 9 | (2) 1M x 9 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION (SX386 CPU CARD) |
|------------------------------------------------------------|
| Size | Bank 0 |
|----------------------------+-------------------------------|
| 16KB | (2) 8K x 8 |
+------------------------------------------------------------+

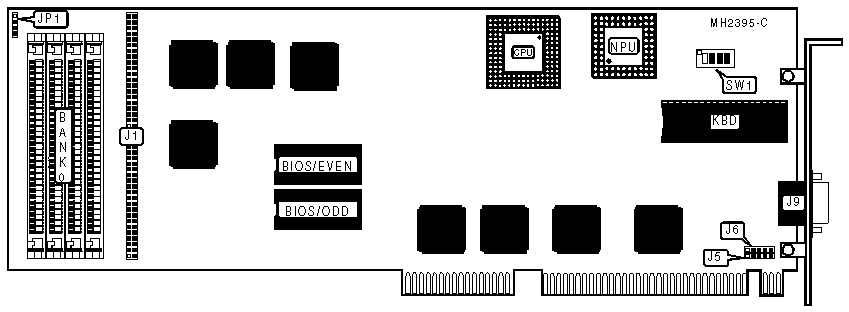

IMG IMG 4
+------------------------------------------------------------+
| CONNECTIONS (386 CPU CARD) |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-------------------+----------+------------------+----------|
| RAMPAK connection | J1 | Keyboard or | J9 |
| | | serial port | |
|-------------------+----------+------------------+----------|
| Panel LED | J5 | Speaker | JP1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS (386 CPU CARD) |
|------------------------------------------------------------|
| Function | Jumper/Switch | Position |
|---------------------------------+---------------+----------|
| » | Factory configured - do not | J6 | N/A |
| | alter | | |
|---+-----------------------------+---------------+----------|
| » | NPU disabled | SW1/1 | Off |
|---+-----------------------------+---------------+----------|
| | NPU enabled | SW1/1 | On |
|---+-----------------------------+---------------+----------|
| » | Factory configured - do not | SW1/2 | N/A |
| | alter | | |
|---+-----------------------------+---------------+----------|
| » | Monitor type select | SW1/3 | Off |
| | monochrome | | |
|---+-----------------------------+---------------+----------|
| | Monitor type select color | SW1/3 | On |
|---+-----------------------------+---------------+----------|
| » | Factory configured - do not | SW1/4 | N/A |
| | alter | | |
+------------------------------------------------------------+

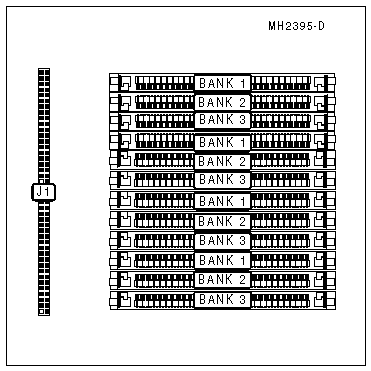

IMG IMG 5
+------------------------------------------------------------+
| CONNECTIONS (RAMPAK) |
|------------------------------------------------------------|
| Purpose | Location |
|-------------------------------+----------------------------|
| 386 CPU card connection | J1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION (386 CPU CARD & RAMPAK) |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 | Bank 3 |
|------+-------------+-------------+------------+------------|
| 1MB | (4) 256K x | NONE | NONE | NONE |
| | 9 | | | |
|------+-------------+-------------+------------+------------|
| 2MB | (4) 256K x | (4) 256K x | NONE | NONE |
| | 9 | 9 | | |
|------+-------------+-------------+------------+------------|
| 4MB | (4) 256K x | (4) 256K x | (4) 256K x | (4) 256K x |
| | 9 | 9 | 9 | 9 |
|------+-------------+-------------+------------+------------|
| 4MB | (4) 1M x 9 | NONE | NONE | NONE |
|------+-------------+-------------+------------+------------|
| 8MB | (4) 1M x 9 | (4) 1M x 9 | NONE | NONE |
|------+-------------+-------------+------------+------------|
| 10MB | (4) 256K x | (4) 256K x | (4) 1M x 9 | (4) 1M x 9 |
| | 9 | 9 | | |
|------+-------------+-------------+------------+------------|
| 16MB | (4) 1M x 9 | (4) 1M x 9 | (4) 1M x 9 | (4) 1M x 9 |
+------------------------------------------------------------+
