# SILICON STAR INTERNATIONAL, INC.
PK5 PCI
Processor Pentium
Processor Speed 75/90/100MHz
Chip Set Unidentified
Max. Onboard DRAM 128MB
Cache 256/512/1024KB
BIOS Award
Dimensions 330mm x 218mm
I/O Options 32-bit PCI bus slots (3), green PC connector
NPU Options None

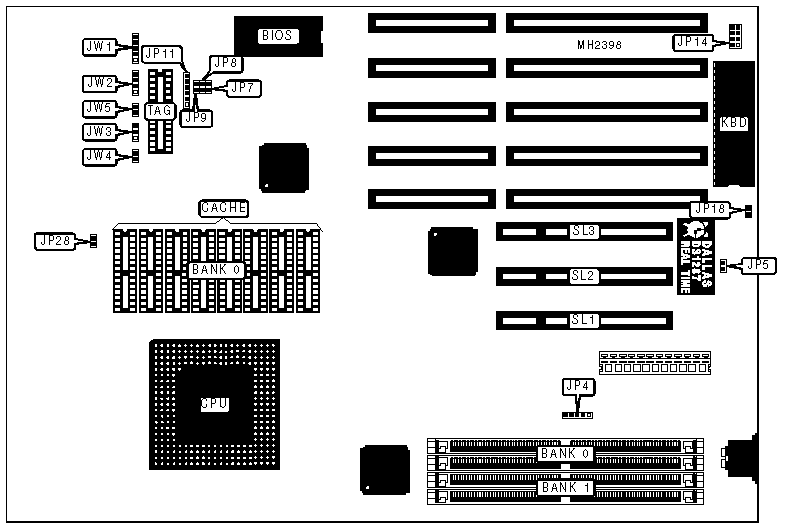

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|--------------------+----------+-----------------+----------|
| Green PC connector | JP14 | Reset switch | JW4 |
|--------------------+----------+-----------------+----------|
| Power LED & | JW1 | Turbo LED | JW5 |
| keylock | | | |
|--------------------+----------+-----------------+----------|
| Speaker | JW2 | 32-bit PCI bus | SL1 - |
| | | slots | SL3 |
|--------------------+----------+-----------------+----------|
| Turbo switch | JW3 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|---------------------------------------+---------+----------|
| » | CMOS memory normal operation | JP5 | Open |
|---+-----------------------------------+---------+----------|
| | CMOS memory clear | JP5 | Closed |
|---+-----------------------------------+---------+----------|
| » | Monitor type select color | JP18 | Closed |
|---+-----------------------------------+---------+----------|
| | Monitor type select monochrome | JP18 | Open |
|---+-----------------------------------+---------+----------|
| » | Factory configured - do not alter | JP28 | Open |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 2MB | (2) 256K x 36 | NONE |
|------------------+--------------------+--------------------|
| 4MB | (2) 512K x 36 | NONE |
|------------------+--------------------+--------------------|
| 4MB | (2) 256K x 36 | (2) 256K x 36 |
|------------------+--------------------+--------------------|
| 6MB | (2) 256K x 36 | (2) 512K x 36 |
|------------------+--------------------+--------------------|
| 8MB | (2) 1M x 36 | NONE |
|------------------+--------------------+--------------------|
| 8MB | (2) 512K x 36 | (2) 512K x 36 |
|------------------+--------------------+--------------------|
| 10MB | (2) 256K x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 12MB | (2) 512K x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 16MB | (2) 2M x 36 | NONE |
|------------------+--------------------+--------------------|
| 16MB | (2) 1M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 18MB | (2) 256K x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 20MB | (1) 512K x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 24MB | (2) 512K x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 32MB | (2) 4M x 36 | NONE |
|------------------+--------------------+--------------------|
| 32MB | (2) 2M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 34MB | (2) 256K x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 36MB | (2) 512K x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 40MB | (2) 1M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 48MB | (2) 2M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 64MB | (2) 8M x 36 | NONE |
|------------------+--------------------+--------------------|
| 64MB | (2) 4M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 66MB | (2) 256K x 36 | (2) 8M x 36 |
|------------------+--------------------+--------------------|
| 68MB | (2) 512K x 36 | (2) 8M x 36 |
|------------------+--------------------+--------------------|
| 72MB | (2) 1M x 36 | (2) 8M x 36 |
|------------------+--------------------+--------------------|
| 80MB | (2) 4M x 36 | (2) 8M x 36 |
|------------------+--------------------+--------------------|
| 96MB | (2) 8M x 36 | NONE |
|------------------+--------------------+--------------------|
| 128MB | (2) 8M x 36 | (2) 8M x 36 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM JUMPER CONFIGURATION |
|------------------------------------------------------------|
| Bank 0 | Bank 1 | JP4 |
|-------------------+-------------------+--------------------|
| Single sided SIMM | Single sided SIMM | pins 1 & 2, 3 & 4 |
| | | closed |
|-------------------+-------------------+--------------------|
| Single sided SIMM | Double sided SIMM | pins 1 & 2, 3 & 4 |
| | | closed |
|-------------------+-------------------+--------------------|
| Double sided SIMM | Double sided SIMM | pins 2 & 3, 4 & 5 |
| | | closed |
|-------------------+-------------------+--------------------|
| Double sided SIMM | Single sided SIMM | pins 2 & 3, 4 & 5 |
| | | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | TAG |
|------------------+--------------------+--------------------|
| 256KB | (8) 32K x 8 | (1) 8K x 8 |
|------------------+--------------------+--------------------|
| 512KB | (8) 64K x 8 | (1) 32K x 8 |
|------------------+--------------------+--------------------|
| 1MB | (8) 128K x 8 | (1) 32K x 8 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE JUMPER CONFIGURATION |
|------------------------------------------------------------|
| Size | JP11 |
|----------------------------+-------------------------------|
| 256KB | pins 2 & 3, 5 & 6 closed |
|----------------------------+-------------------------------|
| 512KB | pins 1 & 2, 5 & 6 closed |
|----------------------------+-------------------------------|
| 1MB | pins 1 & 2, 4 & 5 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED CONFIGURATION |
|------------------------------------------------------------|
| Speed | JP7 | JP8 | JP9 |
|---------------+--------------+--------------+--------------|
| 75MHz | Closed | Open | Open |
|---------------+--------------+--------------+--------------|
| 90MHz | Open | Closed | Open |
|---------------+--------------+--------------+--------------|
| 100MHz | Closed | Open | Closed |
+------------------------------------------------------------+
