# ATEN RESEARCH, INC.
486-KVD
Processor 80486SX/80487SX/80486DX/80486DX2/Pentium
Overdrive
Processor 25/33/40/50(internal)/50/66(internal)MHz
Speed
Chip Set VIA
Max. Onboard 128MB
DRAM
Cache 64/128/256KB
BIOS Award
Dimensions 254mm x 220mm
I/O Options 32-bit VESA local bus slots (2)
NPU Options None

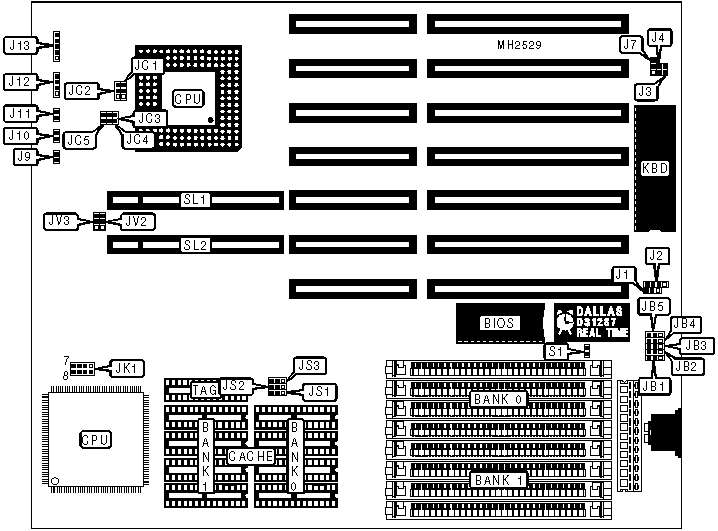

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|------------------+----------+-------------------+----------|
| External battery | J2 | Speaker | J12 |
|------------------+----------+-------------------+----------|
| Turbo LED | J9 | Power LED & | J13 |
| | | keylock | |
|------------------+----------+-------------------+----------|
| Turbo switch | J10 | 32-bit VESA local | SL1 & |
| | | bus slots | SL2 |
|------------------+----------+-------------------+----------|
| Reset switch | J11 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|--------------------------------------+--------+------------|
| » | Battery type select internal | J1 | pins 2 & 3 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | Battery type select external | J1 | pins 1 & 2 |
| | | | closed |
|---+----------------------------------+--------+------------|
| » | Monitor type select | J4 | Open |
| | monochrome/EGA/VGA | | |
|---+----------------------------------+--------+------------|
| | Monitor type select color | J4 | Closed |
|---+----------------------------------+--------+------------|
| » | Password clear Award | J7 | pins 1 & 2 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | Password clear AMI | J7 | pins 2 & 3 |
| | | | closed |
|---+----------------------------------+--------+------------|
| » | Factory configured - do not | JC5 | N/A |
| | alter | | |
|---+----------------------------------+--------+------------|
| » | CMOS memory normal operation | S1 | Open |
|---+----------------------------------+--------+------------|
| | CMOS memory clear | S1 | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 1MB | (4) 256K x 9 | NONE |
|------------------+--------------------+--------------------|
| 2MB | (4) 256K x 9 | (4) 256K x 9 |
|------------------+--------------------+--------------------|
| 4MB | (4) 1M x 9 | NONE |
|------------------+--------------------+--------------------|
| 5MB | (4) 1M x 9 | (4) 256K x 9 |
|------------------+--------------------+--------------------|
| 5MB | (4) 256K x 9 | (4) 1M x 9 |
|------------------+--------------------+--------------------|
| 8MB | (4) 1M x 9 | (4) 1M x 9 |
|------------------+--------------------+--------------------|
| 16MB | (4) 4M x 9 | NONE |
|------------------+--------------------+--------------------|
| 17MB | (4) 4M x 9 | (4) 256K x 9 |
|------------------+--------------------+--------------------|
| 17MB | (4) 256K x 9 | (4) 4M x 9 |
|------------------+--------------------+--------------------|
| 20MB | (4) 4M x 9 | (4) 1M x 9 |
|------------------+--------------------+--------------------|
| 20MB | (4) 1M x 9 | (4) 4M x 9 |
|------------------+--------------------+--------------------|
| 32MB | (4) 4M x 9 | (4) 4M x 9 |
|------------------+--------------------+--------------------|
| 64MB | (4) 16M x 9 | NONE |
|------------------+--------------------+--------------------|
| 65MB | (4) 16M x 9 | (4) 256K x 9 |
|------------------+--------------------+--------------------|
| 65MB | (4) 256K x 9 | (4) 16M x 9 |
|------------------+--------------------+--------------------|
| 68MB | (4) 16M x 9 | (4) 1M x 9 |
|------------------+--------------------+--------------------|
| 68MB | (4) 1M x 9 | (4) 16M x 9 |
|------------------+--------------------+--------------------|
| 80MB | (4) 16M x 9 | (4) 4M x 9 |
|------------------+--------------------+--------------------|
| 80MB | (4) 4M x 9 | (4) 16M x 9 |
|------------------+--------------------+--------------------|
| 128MB | (4) 16M x 9 | (4) 16M x 9 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | TAG |
|------------+---------------+---------------+---------------|
| 64KB | (4) 8K x 8 | (4) 8K x 8 | (1) 8K x 8 |
|------------+---------------+---------------+---------------|
| 128KB | (4) 32K x 8 | NONE | (1) 8K x 8 |
|------------+---------------+---------------+---------------|
| 256KB | (4) 32K x 8 | (4) 32K x 8 | (1) 32K x 8 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE JUMPER CONFIGURATION |
|------------------------------------------------------------|
| Size | JS1 | JS2 | JS3 |
|-------+-----------------+-----------------+----------------|
| 64KB | pins 1 & 2 | pins 1 & 2 | pins 1 & 2 |
| | closed | closed | closed |
|-------+-----------------+-----------------+----------------|
| 128KB | pins 1 & 2 | pins 2 & 3 | pins 2 & 3 |
| | closed | closed | closed |
|-------+-----------------+-----------------+----------------|
| 256KB | pins 2 & 3 | pins 2 & 3 | pins 1 & 2 |
| | closed | closed | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU TYPE CONFIGURATION |
|------------------------------------------------------------|
| Type | JC1 | JC2 | JC3 | JC4 |
|---------+-------------------+------------+--------+--------|
| 80486SX | pins 2 & 3 closed | pins 2 & 3 | Open | Open |
| | | closed | | |
|---------+-------------------+------------+--------+--------|
| 80486DX | pins 1 & 2 closed | pins 1 & 2 | Closed | Closed |
| | | closed | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU CLOCK SPEED CONFIGURATION |
|------------------------------------------------------------|
| Speed | JK1 |
|--------------------------+---------------------------------|
| 25MHz | pins 5 & 6 closed |
|--------------------------+---------------------------------|
| 33MHz | pins 1 & 2 closed |
|--------------------------+---------------------------------|
| 40MHz | pins 1 & 2, 5 & 6, 7 & 8 closed |
|--------------------------+---------------------------------|
| 40MHz | pins 1 & 2, 3 & 4 closed |
|--------------------------+---------------------------------|
| 50iMHz | pins 5 & 6, 7 & 8 closed |
|--------------------------+---------------------------------|
| 50MHz | pins 3 & 4 closed |
|--------------------------+---------------------------------|
| 66MHz | pins 3 & 4, 7 & 8 closed |
|--------------------------+---------------------------------|
| 66iMHz | pins 1 & 2, 7 & 8 closed |
|--------------------------+---------------------------------|
| 80MHz | pins 1 & 2, 3 & 4, 7 & 8 closed |
|--------------------------+---------------------------------|
| Power down | Open |
+------------------------------------------------------------+
+------------------------------------------------------------+
| VESA WAIT STATE CONFIGURATION |
|------------------------------------------------------------|
| Wait states | JV3 |
|----------------------------+-------------------------------|
| 0 wait states | pins 2 & 3 closed |
|----------------------------+-------------------------------|
| 1 wait state | pins 1 & 2 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BUS SPEED CONFIGURATION |
|------------------------------------------------------------|
| CPU speed | JV2 |
|----------------------------+-------------------------------|
| <= 33MHz | pins 2 & 3 closed |
|----------------------------+-------------------------------|
| > 33MHz | pins 1 & 2 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| KEYBOARD CONFIGURATION |
|------------------------------------------------------------|
| Setting | J3 | JB1 | JB2 | JB3 | JB4 | JB5 |
|----------+--------+--------+-------+-------+-------+-------|
| Internal | Open | 2 & 3 | 2 & 3 | 2 & 3 | 2 & 3 | 2 & 3 |
|----------+--------+--------+-------+-------+-------+-------|
| External | Closed | 1 & 2 | 1 & 2 | 1 & 2 | 1 & 2 | 1 & 2 |
|------------------------------------------------------------|
| Note: Pins designated should be in the closed position. |
+------------------------------------------------------------+
