# AQUARIUS SYSTEMS, INC.
ASI-BAT
Processor 80286
Processor Speed 10MHz
Chip Set Unidentified
Max. Onboard DRAM 1MB
Cache None
BIOS AMI
Dimensions 330mm x 218mm
I/O Options None
NPU Options None

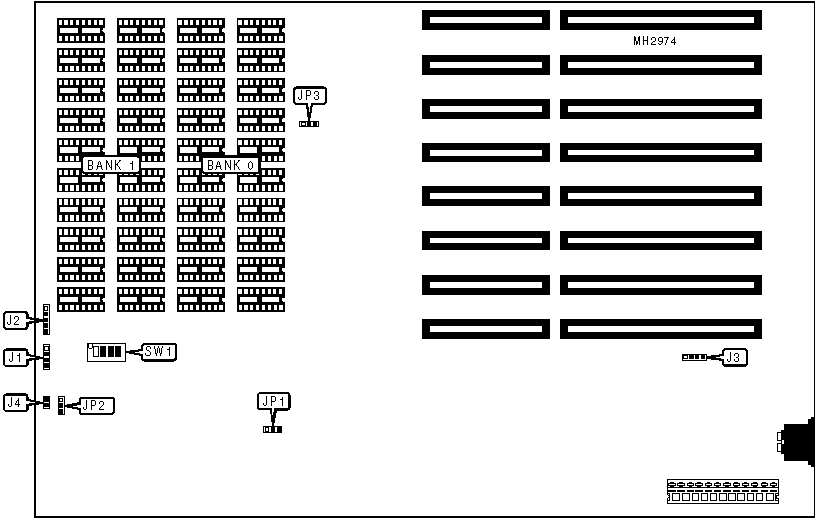

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|----------------------+----------+---------------+----------|
| Speaker | J1 | Reset switch | J4 |
|----------------------+----------+---------------+----------|
| Power LED & keylock | J2 | Turbo LED | JP1 |
|----------------------+----------+---------------+----------|
| External battery | J3 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper/Switch | Position |
|-------------------------------+---------------+------------|
| » | Factory configured - do | JP2 | N/A |
| | not alter | | |
|---+---------------------------+---------------+------------|
| » | BIOS type select 27128 | JP3 | pins 1 & 2 |
| | | | closed |
|---+---------------------------+---------------+------------|
| | BIOS type select 27256 | JP3 | pins 2 & 3 |
| | | | closed |
|---+---------------------------+---------------+------------|
| » | Monitor type select color | SW1/3 | On |
|---+---------------------------+---------------+------------|
| | Monitor type select | SW1/3 | Off |
| | monochrome | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 512KB | (18) 41256 | NONE |
|------------------+--------------------+--------------------|
| 640KB | (18) 41256 | (18) 4164 |
|------------------+--------------------+--------------------|
| 1MB | (18) 41256 | (18) 41256 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM SWITCH CONFIGURATION |
|------------------------------------------------------------|
| Size | SW1/1 | SW1/2 | SW1/4 |
|------------------+-------------+-------------+-------------|
| » | 512KB | Off | On | Off |
|---+--------------+-------------+-------------+-------------|
| » | 640KB | On | Off | Off |
|---+--------------+-------------+-------------+-------------|
| | 1MB | On | Off | On |
+------------------------------------------------------------+
