# ADVANCED LOGIC RESEARCH, INC.
EVOLUTION VQ
Processor Pentium
Processor Speed 60/66MHz
Chip Set Unidentified
Max. Onboard DRAM 1024MB
Cache 512KB
BIOS Unidentified
Dimensions 355mm x 330mm
I/O Options 32-bit VESA local bus slots (3), I/O slot
NPU Options None

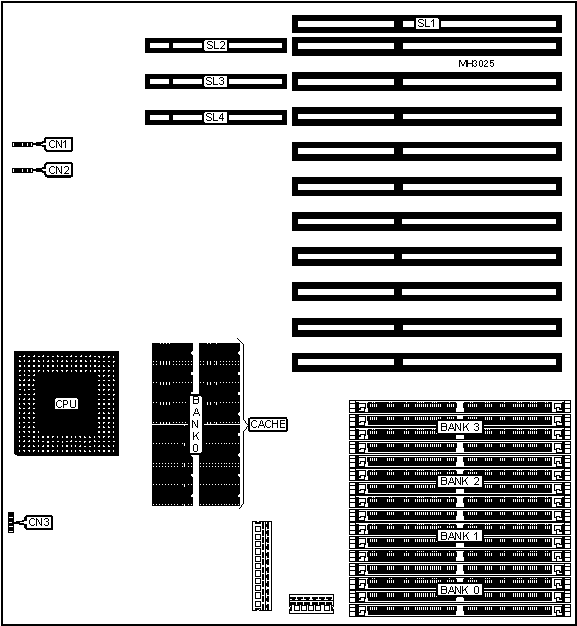

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-------------------+----------+------------------+----------|
| Speaker | CN1 | I/O slot | SL1 |
|-------------------+----------+------------------+----------|
| Chassis fan power | CN2 | 32-bit VESA | SL2 - |
| | | local bus slots | SL3 |
|-------------------+----------+------------------+----------|
| Chassis fan power | CN3 | | |
|------------------------------------------------------------|
| Note: The location of pin 1 is unidentified. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 | Bank 3 |
|--------+------------+------------+------------+------------|
| 4MB | (4) 256K x | NONE | NONE | NONE |
| | 36 | | | |
|--------+------------+------------+------------+------------|
| 8MB | (4) 256K x | (4) 256K x | NONE | NONE |
| | 36 | 36 | | |
|--------+------------+------------+------------+------------|
| 12MB | (4) 256K x | (4) 256K x | (4) 256K x | NONE |
| | 36 | 36 | 36 | |
|--------+------------+------------+------------+------------|
| 16MB | (4) 256K x | (4) 256K x | (4) 256K x | (4) 256K x |
| | 36 | 36 | 36 | 36 |
|--------+------------+------------+------------+------------|
| 16MB | (4) 1M x | NONE | NONE | NONE |
| | 36 | | | |
|--------+------------+------------+------------+------------|
| 20MB | (4) 256K x | (4) 1M x | NONE | NONE |
| | 36 | 36 | | |
|--------+------------+------------+------------+------------|
| 24MB | (4) 256K x | (4) 256K x | (4) 1M x | NONE |
| | 36 | 36 | 36 | |
|--------+------------+------------+------------+------------|
| 28MB | (4) 256K x | (4) 256K x | (4) 256K x | (4) 1M x |
| | 36 | 36 | 36 | 36 |
|--------+------------+------------+------------+------------|
| 32MB | (4) 1M x | (4) 1M x | NONE | NONE |
| | 36 | 36 | | |
|--------+------------+------------+------------+------------|
| 36MB | (4) 256K x | (4) 1M x | (4) 1M x | NONE |
| | 36 | 36 | 36 | |
|--------+------------+------------+------------+------------|
| 40MB | (4) 256K x | (4) 256K x | (4) 1M x | (4) 1M x |
| | 36 | 36 | 36 | 36 |
|--------+------------+------------+------------+------------|
| 48MB | (4) 1M x | (4) 1M x | (4) 1M x | NONE |
| | 36 | 36 | 36 | |
|--------+------------+------------+------------+------------|
| 52MB | (4) 256K x | (4) 1M x | (4) 1M x | (4) 1M x |
| | 36 | 36 | 36 | 36 |
|--------+------------+------------+------------+------------|
| 64MB | (4) 1M x | (4) 1M x | (4) 1M x | (4) 1M x |
| | 36 | 36 | 36 | 36 |
|--------+------------+------------+------------+------------|
| 64MB | (4) 4M x | NONE | NONE | NONE |
| | 36 | | | |
|--------+------------+------------+------------+------------|
| 68MB | (4) 256K x | (4) 4M x | NONE | NONE |
| | 36 | 36 | | |
|--------+------------+------------+------------+------------|
| 80MB | (4) 1M x | (4) 4M x | NONE | NONE |
| | 36 | 36 | | |
|--------+------------+------------+------------+------------|
| 96MB | (4) 1M x | (4) 1M x | (4) 4M x | NONE |
| | 36 | 36 | 36 | |
|--------+------------+------------+------------+------------|
| 112MB | (4) 1M x | (4) 1M x | (4) 1M x | (4) 4M x |
| | 36 | 36 | 36 | 36 |
|--------+------------+------------+------------+------------|
| 128MB | (4) 4M x | (4) 4M x | NONE | NONE |
| | 36 | 36 | | |
|--------+------------+------------+------------+------------|
| 132MB | (4) 256K x | (4) 4M x | (4) 4M x | NONE |
| | 36 | 36 | 36 | |
|--------+------------+------------+------------+------------|
| 144MB | (4) 1M x | (4) 4M x | (4) 4M x | NONE |
| | 36 | 36 | 36 | |
|--------+------------+------------+------------+------------|
| 160MB | (4) 1M x | (4) 1M x | (4) 4M x | (4) 4M x |
| | 36 | 36 | 36 | 36 |
|--------+------------+------------+------------+------------|
| 192MB | (4) 4M x | (4) 4M x | (4) 4M x | NONE |
| | 36 | 36 | 36 | |
|--------+------------+------------+------------+------------|
| 196MB | (4) 256K x | (4) 4M x | (4) 4M x | (4) 4M x |
| | 36 | 36 | 36 | 36 |
|--------+------------+------------+------------+------------|
| 208MB | (4) 1M x | (4) 4M x | (4) 4M x | (4) 4M x |
| | 36 | 36 | 36 | 36 |
|--------+------------+------------+------------+------------|
| 256MB | (4) 4M x | (4) 4M x | (4) 4M x | (4) 4M x |
| | 36 | 36 | 36 | 36 |
|--------+------------+------------+------------+------------|
| 256MB | (4) 16M x | NONE | NONE | NONE |
| | 36 | | | |
|--------+------------+------------+------------+------------|
| 320MB | (4) 4M x | (4) 16M x | NONE | NONE |
| | 36 | 36 | | |
|--------+------------+------------+------------+------------|
| 384MB | (4) 4M x | (4) 4M x | (4) 16M x | NONE |
| | 36 | 36 | 36 | |
|--------+------------+------------+------------+------------|
| 448MB | (4) 4M x | (4) 4M x | (4) 4M x | (4) 16M x |
| | 36 | 36 | 36 | 36 |
|--------+------------+------------+------------+------------|
| 512MB | (4) 16M x | (4) 16M x | NONE | NONE |
| | 36 | 36 | | |
|--------+------------+------------+------------+------------|
| 576MB | (4) 4M x | (4) 16M x | (4) 16M x | NONE |
| | 36 | 36 | 36 | |
|--------+------------+------------+------------+------------|
| 640MB | (4) 4M x | (4) 4M x | (4) 16M x | (4) 16M x |
| | 36 | 36 | 36 | 36 |
|--------+------------+------------+------------+------------|
| 768MB | (4) 16M x | (4) 16M x | (4) 16M x | NONE |
| | 36 | 36 | 36 | |
|--------+------------+------------+------------+------------|
| 832MB | (4) 4M x | (4) 16M x | (4) 16M x | (4) 16M x |
| | 36 | 36 | 36 | 36 |
|--------+------------+------------+------------+------------|
| 1024MB | (4) 16M x | (4) 16M x | (4) 16M x | (4) 16M x |
| | 36 | 36 | 36 | 36 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 |
|---------------------------+--------------------------------|
| 512KB | (16) 32K x 8 |
|------------------------------------------------------------|
| Note: Cache is factory installed and is not configurable. |
+------------------------------------------------------------+
