# AST RESEARCH, INC.
ADVANTAGE! 8000 SERIES P5
(MORRISON) (234250-F01)
Processor Pentium
Processor 75/90/100/120/133MHz
Speed
Chip Set Unidentified
Max. Onboard 128MB
DRAM
Cache None
BIOS Unidentified
Dimensions 254mm x 218mm
I/O Options Floppy drive interface, IDE interfaces (2),
parallel port, PS/2 mouse port, serial ports (2),
8514 video pass through connector, VGA port,
riser slot
NPU Options None

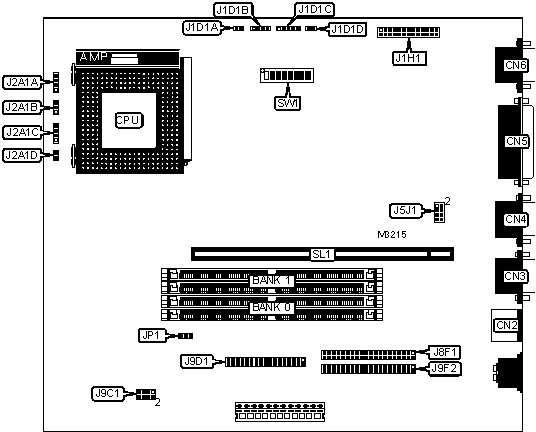

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-----------------+----------+--------------------+----------|
| PS/2 mouse port | CN2 | 8514 video pass | J1H1 |
| | | through connector | |
|-----------------+----------+--------------------+----------|
| Serial port | CN3 | Speaker | J2A1A |
|-----------------+----------+--------------------+----------|
| Serial port | CN4 | Front panel | J2A1B |
| | | connector | |
|-----------------+----------+--------------------+----------|
| Parallel port | CN5 | Chassis fan power | J2A1C |
|-----------------+----------+--------------------+----------|
| VGA port | CN6 | Front panel | J2A1D |
| | | connector | |
|-----------------+----------+--------------------+----------|
| Control console | J1D1A | IDE interface 1 | J8F1 |
| LED | | | |
|-----------------+----------+--------------------+----------|
| Control console | J1D1B | Floppy drive | J9D1 |
| LED | | interface | |
|-----------------+----------+--------------------+----------|
| Control console | J1D1C | IDE interface 2 | J9F2 |
| LED | | | |
|-----------------+----------+--------------------+----------|
| Control console | J1D1D | Riser slot | SL1 |
| LED | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper/Switch | Position |
|-------------------------------+---------------+------------|
| » | Flash BIOS normal | J5J1 | pins 1 & 3 |
| | operation | | closed |
|---+---------------------------+---------------+------------|
| | Flash BIOS force update | J5J1 | pins 1 & 2 |
| | at boot | | closed |
|---+---------------------------+---------------+------------|
| » | Factory configured - do | JP1 | N/A |
| | not alter | | |
|---+---------------------------+---------------+------------|
| » | Factory configured - do | SW1/1 | On |
| | not alter | | |
|---+---------------------------+---------------+------------|
| » | Factory configured - do | SW1/2 | On |
| | not alter | | |
|---+---------------------------+---------------+------------|
| » | Password enabled | SW1/3 | Off |
|---+---------------------------+---------------+------------|
| | Password disabled | SW1/3 | On |
|---+---------------------------+---------------+------------|
| » | CMOS memory normal | SW1/4 | Off |
| | operation | | |
|---+---------------------------+---------------+------------|
| | CMOS memory clear | SW1/4 | On |
|---+---------------------------+---------------+------------|
| » | Setup access enabled | SW1/5 | Off |
|---+---------------------------+---------------+------------|
| | Setup access disabled | SW1/5 | On |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 8MB | (2) 1M x 32 | NONE |
|------------------+--------------------+--------------------|
| 10MB | (2) 1M x 32 | (2) 256K x 32 |
|------------------+--------------------+--------------------|
| 16MB | (2) 1M x 32 | (2) 1M x 32 |
|------------------+--------------------+--------------------|
| 16MB | (2) 2M x 32 | NONE |
|------------------+--------------------+--------------------|
| 24MB | (2) 2M x 32 | (2) 1M x 32 |
|------------------+--------------------+--------------------|
| 32MB | (2) 2M x 32 | (2) 2M x 32 |
|------------------+--------------------+--------------------|
| 32MB | (2) 4M x 32 | NONE |
|------------------+--------------------+--------------------|
| 34MB | (2) 4M x 32 | (2) 256K x 32 |
|------------------+--------------------+--------------------|
| 40MB | (2) 4M x 32 | (2) 1M x 32 |
|------------------+--------------------+--------------------|
| 48MB | (2) 4M x 32 | (2) 2M x 32 |
|------------------+--------------------+--------------------|
| 64MB | (2) 4M x 32 | (2) 4M x 32 |
|------------------+--------------------+--------------------|
| 64MB | (2) 8M x 32 | NONE |
|------------------+--------------------+--------------------|
| 66MB | (2) 8M x 32 | (2) 256K x 32 |
|------------------+--------------------+--------------------|
| 72MB | (2) 8M x 32 | (2) 1M x 32 |
|------------------+--------------------+--------------------|
| 80MB | (2) 8M x 32 | (2) 2M x 32 |
|------------------+--------------------+--------------------|
| 96MB | (2) 8M x 32 | (2) 4M x 32 |
|------------------+--------------------+--------------------|
| 128MB | (2) 8M x 32 | (2) 8M x 32 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU TYPE CONFIGURATION |
|------------------------------------------------------------|
| Type | J5J1 | J9C1 |
|------------+--------------------------+--------------------|
| VR | pins 1 & 3, 5 & 7 closed | pins 1 & 3 closed |
|------------+--------------------------+--------------------|
| VRE | pins 1 & 3, 5 & 7 closed | pins 5 & 7 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED CONFIGURATION |
|------------------------------------------------------------|
| Speed | SW1/6 | SW1/7 | SW1/8 |
|---------------+--------------+--------------+--------------|
| 75MHz | Off | Off | Off |
|---------------+--------------+--------------+--------------|
| 90MHz | Off | On | Off |
|---------------+--------------+--------------+--------------|
| 100MHz | Off | Off | On |
|---------------+--------------+--------------+--------------|
| 120MHz | On | On | Off |
|---------------+--------------+--------------+--------------|
| 133MHz | On | Off | On |
+------------------------------------------------------------+
