# AST RESEARCH, INC.
ADVANTAGE! PLUS SERIES 486 (MYLEX) (202529-000, 006)
Processor 80486SX/80487SX/ODP486/ODPR486/80486DX/80486DX2
Processor 25/33/50(internal)/66(internal)MHz
Speed
Chip Set Unidentified
Max. Onboard 32MB
DRAM
Cache 64/256KB
BIOS AMI
Dimensions 330mm x 218mm
I/O Options Floppy drive interface, IDE interface, parallel
port, serial ports (2)
NPU Options None

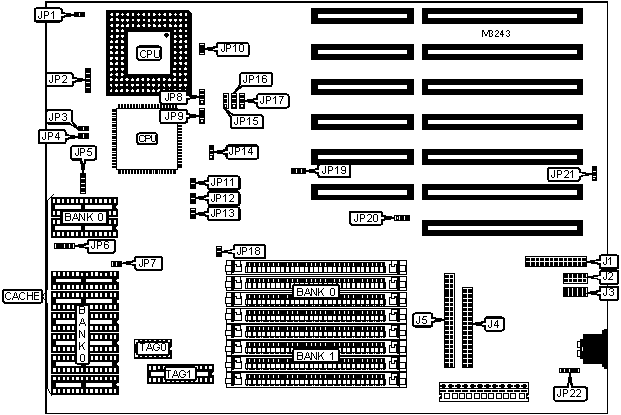

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-------------------+----------+------------------+----------|
| Parallel port | J1 | Turbo LED | JP3 |
|-------------------+----------+------------------+----------|
| Serial port 2 | J2 | Reset switch | JP4 |
|-------------------+----------+------------------+----------|
| Serial port 1 | J3 | Speaker | JP5 |
|-------------------+----------+------------------+----------|
| Floppy drive | J4 | IDE interface | JP6 |
| interface | | LED | |
|-------------------+----------+------------------+----------|
| IDE interface | J5 | External battery | JP22 |
|-------------------+----------+------------------+----------|
| Power LED & | JP2 | | |
| keylock | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|--------------------------------------+--------+------------|
| » | Monitor type select color | JP1 | Closed |
|---+----------------------------------+--------+------------|
| | Monitor type select monochrome | JP1 | Open |
|---+----------------------------------+--------+------------|
| » | Factory configured - do not | JP18 | Open |
| | alter | | |
|---+----------------------------------+--------+------------|
| » | Parallel port IRQ select IRQ7 | JP19 | Pins 2 & 3 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | Parallel port IRQ select IRQ5 | JP19 | Pins 1 & 2 |
| | | | closed |
|---+----------------------------------+--------+------------|
| » | On board I/O enabled | JP20 | Pins 1 & 2 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | On board I/O disabled | JP20 | Pins 2 & 3 |
| | | | closed |
|---+----------------------------------+--------+------------|
| » | Battery type select internal | JP21 | Pins 2 & 3 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | Battery type select external | JP21 | Open |
|---+----------------------------------+--------+------------|
| | CMOS memory clear | JP21 | Pins 1 & 2 |
| | | | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 1MB | (4) 256K x 9 | None |
|------------------+--------------------+--------------------|
| 2MB | (4) 256K x 9 | (4) 256K x 9 |
|------------------+--------------------+--------------------|
| 4MB | (4) 1M x 9 | None |
|------------------+--------------------+--------------------|
| 5MB | (4) 1M x 9 | (4) 256K x 9 |
|------------------+--------------------+--------------------|
| 8MB | (4) 1M x 9 | (4) 1M x 9 |
|------------------+--------------------+--------------------|
| 16MB | (4) 4M x 9 | None |
|------------------+--------------------+--------------------|
| 20MB | (4) 4M x 9 | (4) 1M x 9 |
|------------------+--------------------+--------------------|
| 32MB | (4) 4M x 9 | (4) 4M x 9 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | TAG0 | TAG1 |
|------------+---------------+---------------+---------------|
| 64KB | (8) 8K x 8 | (1) 64K x 1 | (1) 8K x 8 |
|------------+---------------+---------------+---------------|
| 256KB | (8) 32K x 8 | (1) 64K x 1 | (1) 32K x 8 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE JUMPER CONFIGURATION |
|------------------------------------------------------------|
| Size | JP7 | JP11 | JP12 | JP13 |
|-----------+------------+------------+----------+-----------|
| None | Open | Open | Open | Open |
|-----------+------------+------------+----------+-----------|
| 64KB | Open | Open | Open | Open |
|-----------+------------+------------+----------+-----------|
| 256KB | Closed | Closed | Open | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU TYPE CONFIGURATION |
|------------------------------------------------------------|
| Type | JP8 | JP9 | JP10 |
|-----------+-------------------+-------------------+--------|
| 80486SX | Open | Pins 2 & 3 closed | Open |
|-----------+-------------------+-------------------+--------|
| 80487SX | Pins 2 & 3 closed | Pins 1 & 2 closed | Closed |
|-----------+-------------------+-------------------+--------|
| odp486 | Pins 2 & 3 closed | Pins 1 & 2 closed | Closed |
|-----------+-------------------+-------------------+--------|
| odpR486 | Pins 1 & 2 closed | Pins 1 & 2 closed | Closed |
|-----------+-------------------+-------------------+--------|
| 80486DX | Pins 1 & 2 closed | Pins 1 & 2 closed | Closed |
|-----------+-------------------+-------------------+--------|
| 80486DX2 | Pins 1 & 2 closed | Pins 1 & 2 closed | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED CONFIGURATION |
|------------------------------------------------------------|
| Speed | JP14 | JP15 | JP16 | JP17 |
|--------+------------+------------+------------+------------|
| 25MHz | Pins 2 & 3 | Pins 2 & 3 | Pins 1 & 2 | Pins 2 & 3 |
| | closed | closed | closed | closed |
|--------+------------+------------+------------+------------|
| 33MHz | Pins 2 & 3 | Pins 1 & 2 | Pins 1 & 2 | Pins 2 & 3 |
| | closed | closed | closed | closed |
|--------+------------+------------+------------+------------|
| 50iMHz | Pins 2 & 3 | Pins 2 & 3 | Pins 1 & 2 | Pins 2 & 3 |
| | closed | closed | closed | closed |
|--------+------------+------------+------------+------------|
| 66iMHz | Pins 2 & 3 | Pins 1 & 2 | Pins 1 & 2 | Pins 2 & 3 |
| | closed | closed | closed | closed |
+------------------------------------------------------------+
