# AST RESEARCH, INC.
ADVANTAGE! 6000 SERIES P5 (RATTLER) (202653-101, 16)
Processor Pentium
Processor 75/90/100MHz
Speed
Chip Set Unidentified
Max. Onboard 128MB
DRAM
Cache 256KB
BIOS AST
Dimensions 330mm x 218mm
I/O Options Floppy drive interface, IDE interface, parallel
port, PS/2 mouse port, serial ports (2), 8514
video pass through connector, VGA port, riser
slot
NPU Options None

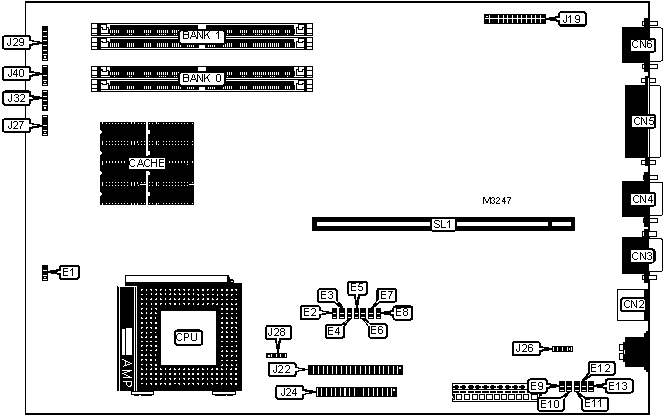

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-------------------+----------+------------------+----------|
| PS/2 mouse port | CN2 | External battery | J26 |
|-------------------+----------+------------------+----------|
| Serial port | CN3 | Speaker | J27 |
|-------------------+----------+------------------+----------|
| Serial port | CN4 | Chassis fan | J28 |
| | | power | |
|-------------------+----------+------------------+----------|
| Parallel port | CN5 | Front panel | J29 |
| | | connector | |
|-------------------+----------+------------------+----------|
| VGA port | CN6 | Chassis fan | J32 |
| | | power | |
|-------------------+----------+------------------+----------|
| 8514 video pass | J19 | IDE interface | J40 |
| through connector | | LED | |
|-------------------+----------+------------------+----------|
| IDE interface | J22 | Riser slot | SL1 |
|-------------------+----------+------------------+----------|
| Floppy drive | J24 | | |
| interface | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|----------------------------------------+--------+----------|
| » | Factory configured - do not alter | E4 | Open |
| | (model extension # -301) | | |
|---+------------------------------------+--------+----------|
| | Cache installed (model extension # | E4 | Closed |
| | -302) | | |
|---+------------------------------------+--------+----------|
| | Cache not installed (model | E4 | Open |
| | extension # -302) | | |
|---+------------------------------------+--------+----------|
| » | Factory configured - do not alter | E5 | Open |
| | (model extension # -301) | | |
|---+------------------------------------+--------+----------|
| » | Factory configured - do not alter | E5 | Closed |
| | (model extension # -302) | | |
|---+------------------------------------+--------+----------|
| » | Factory configured - do not alter | E6 | Open |
|---+------------------------------------+--------+----------|
| | Cache not installed (model | E6 | Closed |
| | extension # -302) | | |
|---+------------------------------------+--------+----------|
| | Cache installed (model extension # | E6 | Open |
| | -302) | | |
|---+------------------------------------+--------+----------|
| » | Factory configured - do not alter | E8 | Open |
|---+------------------------------------+--------+----------|
| » | Monitor type select color | E9 | Closed |
|---+------------------------------------+--------+----------|
| | Monitor type select monochrome | E9 | Open |
|---+------------------------------------+--------+----------|
| » | Setup access enabled | E10 | Closed |
|---+------------------------------------+--------+----------|
| | Setup access disabled | E10 | Open |
|---+------------------------------------+--------+----------|
| » | On board video enabled | E11 | Closed |
|---+------------------------------------+--------+----------|
| | On board video disabled | E11 | Open |
|---+------------------------------------+--------+----------|
| » | Password enabled | E12 | Closed |
|---+------------------------------------+--------+----------|
| | Password disabled | E12 | Open |
|---+------------------------------------+--------+----------|
| » | Flash BIOS normal operation | E13 | Closed |
|---+------------------------------------+--------+----------|
| | Flash BIOS force update at boot | E13 | Open |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 8MB | (2) 1M x 32 | None |
|------------------+--------------------+--------------------|
| 10MB | (2) 1M x 32 | (2) 256K x 32 |
|------------------+--------------------+--------------------|
| 16MB | (2) 2M x 32 | None |
|------------------+--------------------+--------------------|
| 16MB | (2) 1M x 32 | (2) 1M x 32 |
|------------------+--------------------+--------------------|
| 18MB | (2) 2M x 32 | (2) 256K x 32 |
|------------------+--------------------+--------------------|
| 18MB | (2) 256K x 32 | (2) 2M x 32 |
|------------------+--------------------+--------------------|
| 24MB | (2) 2M x 32 | (2) 1M x 32 |
|------------------+--------------------+--------------------|
| 32MB | (2) 4M x 32 | None |
|------------------+--------------------+--------------------|
| 32MB | (2) 2M x 32 | (2) 2M x 32 |
|------------------+--------------------+--------------------|
| 34MB | (2) 4M x 32 | (2) 256K x 32 |
|------------------+--------------------+--------------------|
| 40MB | (2) 4M x 32 | (2) 1M x 32 |
|------------------+--------------------+--------------------|
| 48MB | (2) 4M x 32 | (2) 2M x 32 |
|------------------+--------------------+--------------------|
| 64MB | (2) 8M x 32 | None |
|------------------+--------------------+--------------------|
| 64MB | (2) 4M x 32 | (2) 4M x 32 |
|------------------+--------------------+--------------------|
| 66MB | (2) 8M x 32 | (2) 256K x 32 |
|------------------+--------------------+--------------------|
| 68MB | (2) 8M x 32 | (2) 512K x 32 |
|------------------+--------------------+--------------------|
| 72MB | (2) 8M x 32 | (2) 1M x 32 |
|------------------+--------------------+--------------------|
| 80MB | (2) 8M x 32 | (2) 2M x 32 |
|------------------+--------------------+--------------------|
| 96MB | (2) 8M x 32 | (2) 4M x 32 |
|------------------+--------------------+--------------------|
| 128MB | (2) 8M x 32 | (2) 8M x 32 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Note: 256KB cache is factory installed and is not |
| configurable. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED CONFIGURATION (IMI415) |
|------------------------------------------------------------|
| Speed | E1 | E2 | E3 | E7 |
|----------+-------------------+---------+---------+---------|
| 75MHz | Pins 2 & 3 closed | Open | Closed | Closed |
|----------+-------------------+---------+---------+---------|
| 90MHz | Pins 2 & 3 closed | Open | Closed | Open |
|----------+-------------------+---------+---------+---------|
| 100MHz | Pins 2 & 3 closed | Closed | Closed | Open |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED CONFIGURATION (IMI470) |
|------------------------------------------------------------|
| Speed | E1 | E2 | E3 | E7 |
|----------+-------------------+---------+---------+---------|
| 75MHz | Pins 2 & 3 closed | Open | Closed | Open |
|----------+-------------------+---------+---------+---------|
| 90MHz | Pins 2 & 3 closed | Open | Closed | Closed |
|----------+-------------------+---------+---------+---------|
| 100MHz | Pins 2 & 3 closed | Closed | Closed | Closed |
+------------------------------------------------------------+
