# AT & T
MODEL 6386E/33 WGS (FM-0589-10)
MODEL 6386E/33S WGS (FM-0589-11)
Processor 80386
Processor Speed 33MHz
Chip Set Unidentified
Video Chip Set None
Maximum Onboard 8MB (16MB on external memory card)
Memory
Maximum Video None
Memory
Cache 64KB
BIOS Unidentified
Dimensions 355mm x 304mm
I/O Options External memory cards (2), PS/2 mouse port,
parallel port, serial ports (2)
NPU Options 80387/3167

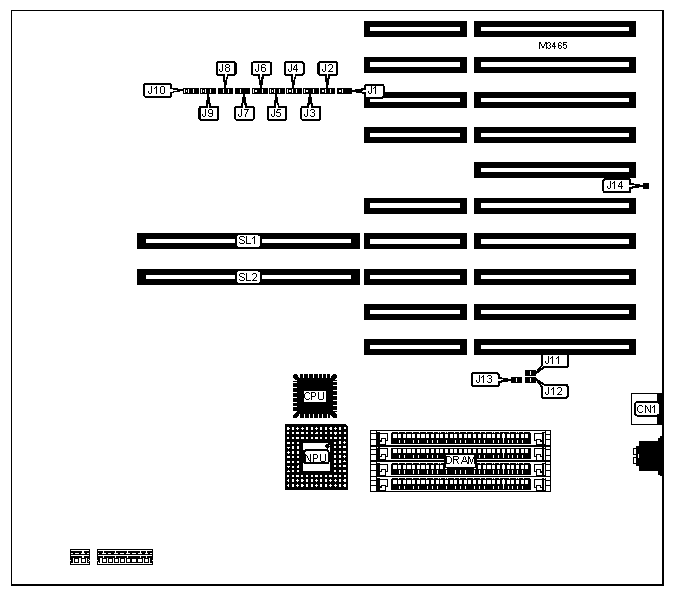

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|------------------+----------+-------------------+----------|
| PS/2 mouse port | CN1 | External memory | SL1 & |
| | | cards | SL2 |
|------------------+----------+-------------------+----------|
| Remote reset | J14 | | |
| switch | | | |
|------------------------------------------------------------|
| Note: Mainboard has 2 serial ports and 1 parallel port. |
| The location is unidentified. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|-------------------------------------+-------+--------------|
| » | Password normal operation | J1 | Pins 2 & 3 |
| | | | closed |
|---+---------------------------------+-------+--------------|
| | Password clear | J1 | Pins 1 & 2 |
| | | | closed |
|---+---------------------------------+-------+--------------|
| | Monitor type select color | J6 | Pins 1 & 2 |
| | | | closed |
|---+---------------------------------+-------+--------------|
| | Monitor type select monochrome | J6 | Pins 2 & 3 |
| | | | closed |
|---+---------------------------------+-------+--------------|
| | Jumper information unavailable | J7 | Unidentified |
|---+---------------------------------+-------+--------------|
| | Jumper information unavailable | J8 | Unidentified |
|---+---------------------------------+-------+--------------|
| | Printer acknowledge signal edge | J9 | Pins 2 & 3 |
| | leading edge | | closed |
|---+---------------------------------+-------+--------------|
| | Printer acknowledge signal edge | J9 | Pins 1 & 2 |
| | trailing edge | | closed |
|---+---------------------------------+-------+--------------|
| | BIOS type select 64KB | J10 | Pins 2 & 3 |
| | | | closed |
|---+---------------------------------+-------+--------------|
| | BIOS type select 128KB | J10 | Pins 1 & 2 |
| | | | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 4MB | (2) 1M x 9 | (2) 1M x 9 |
|------------------+--------------------+--------------------|
| 8MB | (2) 4M x 9 | None |
|------------------------------------------------------------|
| Note: The location of banks 0 & 1 are unidentified. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM JUMPER CONFIGURATION |
|------------------------------------------------------------|
| Size | J11 | J12 | J13 |
|-------------+---------------+---------------+--------------|
| 4MB | Closed | Open | Closed |
|-------------+---------------+---------------+--------------|
| 8MB | Closed | Closed | Open |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Note: The location of the 64KB cache is unidentified. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| PARALLEL PORT ADDRESS SELECTION |
|------------------------------------------------------------|
| Setting | J2 | J3 |
|------------------+--------------------+--------------------|
| LPT1 (378h) | Pins 2 & 3 closed | Pins 1 & 2 closed |
|------------------+--------------------+--------------------|
| LPT2 (278h) | Pins 1 & 2 closed | Pins 2 & 3 closed |
|------------------+--------------------+--------------------|
| Disabled | Pins 1 & 2 closed | Pins 1 & 2 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SERIAL PORT 1 ADDRESS SELECTION |
|------------------------------------------------------------|
| Setting | J4 |
|----------------------------+-------------------------------|
| COM1 (3F8h) | Pins 2 & 3 closed |
|----------------------------+-------------------------------|
| Disabled | Pins 1 & 2 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SERIAL PORT 2 ADDRESS SELECTION |
|------------------------------------------------------------|
| Setting | J5 |
|----------------------------+-------------------------------|
| COM2 (2F8h) | Pins 2 & 3 closed |
|----------------------------+-------------------------------|
| Disabled | Pins 1 & 2 closed |
+------------------------------------------------------------+

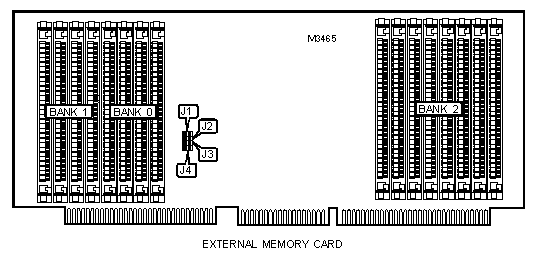

IMG IMG 2
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 |
|------------+---------------+---------------+---------------|
| 4MB | (4) 1M x 9 | None | None |
|------------+---------------+---------------+---------------|
| 8MB | (4) 1M x 9 | (4) 1M x 9 | None |
|------------+---------------+---------------+---------------|
| 16MB | (4) 1M x 9 | (4) 1M x 9 | (8) 1M x 9 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM JUMPER CONFIGURATION |
|------------------------------------------------------------|
| Size | J1 | J2 | J3 | J4 |
|----------+------------+------------+-----------+-----------|
| 4MB | Closed | Open | Open | Closed |
|----------+------------+------------+-----------+-----------|
| 8MB | Open | Closed | Closed | Open |
|----------+------------+------------+-----------+-----------|
| 16MB | Closed | Closed | Open | Open |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MISCELLANEOUS TECHINCAL NOTE |
|------------------------------------------------------------|
| Don’t remove jumper from pins E52 and E53. The location of |
| these pins are unidentified. |
+------------------------------------------------------------+
