# ADVANCED INTEGRATION RESEARCH, INC.
54CDP (REV. 1.10)
Processor Pentium
Processor Speed 90/100MHz
Chip Set Intel
Video Chip Set None
Maximum Onboard 512MB
Memory
Maximum Video None
Memory
Cache 256/512KB
BIOS AMI
Dimensions 332mm x 221mm
I/O Options 32-bit PCI slots (3), floppy drive interface,
SCSI interfaces (2), parallel port, serial
ports (2)
NPU Options None

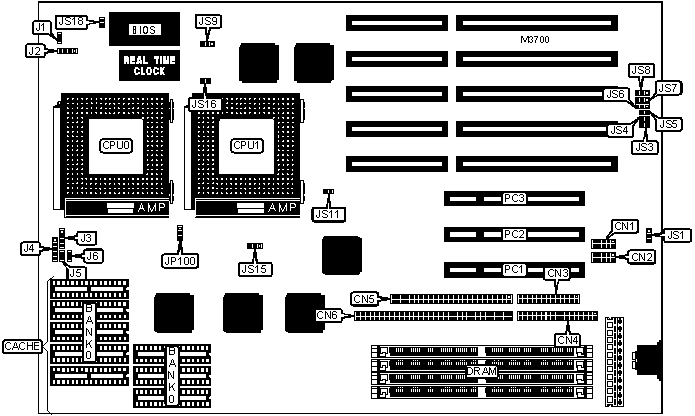

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-------------------+----------+------------------+----------|
| Serial port | CN1 | Speaker | J2 |
|-------------------+----------+------------------+----------|
| Serial port | CN2 | SCSI interface | J3 |
| | | LED | |
|-------------------+----------+------------------+----------|
| Parallel port | CN3 | Power LED & | J4 |
| | | keylock | |
|-------------------+----------+------------------+----------|
| Floppy drive | CN4 | Turbo switch | J5 |
| interface | | | |
|-------------------+----------+------------------+----------|
| SCSI-2 interface | CN5 | Turbo LED | J6 |
|-------------------+----------+------------------+----------|
| Wide SCSI-2 | CN6 | 32-bit PCI slots | PC1 - |
| interface | | | PC3 |
|-------------------+----------+------------------+----------|
| Reset switch | J1 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|---------------------------------------+-------+------------|
| » | CMOS memory normal operation | JS3 | Open |
|---+-----------------------------------+-------+------------|
| | CMOS memory clear | JS3 | Closed |
|---+-----------------------------------+-------+------------|
| » | Parallel port IRQ select IRQ7 | JS6 | Pins 2 & 3 |
| | | | closed |
|---+-----------------------------------+-------+------------|
| | Parallel port IRQ select IRQ5 | JS6 | Pins 1 & 2 |
| | | | closed |
|---+-----------------------------------+-------+------------|
| » | Flash BIOS normal operation | JS9 | Pins 2 & 3 |
| | | | closed |
|---+-----------------------------------+-------+------------|
| | Flash BIOS programming mode | JS9 | Pins 1 & 2 |
| | | | closed |
|---+-----------------------------------+-------+------------|
| » | Monitor type select | JS16 | Closed |
| | monochrome/EGA/VGA | | |
|---+-----------------------------------+-------+------------|
| | Monitor type select CGA | JS16 | Open |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 2MB | (2) 256K x 36 | None |
|------------------+--------------------+--------------------|
| 4MB | (2) 256K x 36 | (2) 256K x 36 |
|------------------+--------------------+--------------------|
| 4MB | (2) 512K x 36 | None |
|------------------+--------------------+--------------------|
| 6MB | (2) 256K x 36 | (2) 512K x 36 |
|------------------+--------------------+--------------------|
| 8MB | (2) 512K x 36 | (2) 512K x 36 |
|------------------+--------------------+--------------------|
| 8MB | (2) 1M x 36 | None |
|------------------+--------------------+--------------------|
| 10MB | (2) 256K x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 12MB | (2) 512K x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 16MB | (2) 1M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 16MB | (2) 2M x 36 | None |
|------------------+--------------------+--------------------|
| 18MB | (2) 256K x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 20MB | (2) 512K x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 24MB | (2) 1M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 32MB | (2) 2M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 32MB | (2) 4M x 36 | None |
|------------------+--------------------+--------------------|
| 34MB | (2) 256K x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 36MB | (2) 512K x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 40MB | (2) 1M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 48MB | (2) 2M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 64MB | (2) 4M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 64MB | (2) 8M x 36 | None |
|------------------+--------------------+--------------------|
| 64MB | (2) 8M x 36 | None |
|------------------+--------------------+--------------------|
| 66MB | (2) 256K x 36 | (2) 8M x 36 |
|------------------+--------------------+--------------------|
| 68MB | (2) 512K x 36 | (2) 8M x 36 |
|------------------+--------------------+--------------------|
| 72MB | (2) 1M x 36 | (2) 8M x 36 |
|------------------+--------------------+--------------------|
| 80MB | (2) 2M x 36 | (2) 8M x 36 |
|------------------+--------------------+--------------------|
| 96MB | (2) 4M x 36 | (2) 8M x 36 |
|------------------+--------------------+--------------------|
| 128MB | (2) 8M x 36 | (2) 8M x 36 |
|------------------+--------------------+--------------------|
| 128MB | (2) 16M x 36 | None |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION (CON'T) |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 160MB | (2) 16M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 192MB | (2) 16M x 36 | (2) 8M x 36 |
|------------------+--------------------+--------------------|
| 256MB | (2) 16M x 36 | (2) 16M x 36 |
|------------------+--------------------+--------------------|
| 256MB | (2) 32M x 36 | None |
|------------------+--------------------+--------------------|
| 512MB | (2) 32M x 36 | (2) 32M x 36 |
|------------------------------------------------------------|
| Note: The location of banks 0 & 1 are unidentified. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 |
|----------------------------+-------------------------------|
| 256KB | (8) 32K x 8 |
|----------------------------+-------------------------------|
| 512KB | (8) 64K x 8 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE JUMPER CONFIGURATION |
|------------------------------------------------------------|
| Size | JS15 |
|----------------------------+-------------------------------|
| 256KB | Pins 1 & 2 closed |
|----------------------------+-------------------------------|
| 512KB | Pins 2 & 3 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED SELECTION |
|------------------------------------------------------------|
| CPU speed | Clock speed | Multiplier | JS18 |
|---------------+---------------+---------------+------------|
| 90MHz | 60MHz | 1.5x | Open |
|---------------+---------------+---------------+------------|
| 100MHz | 66MHz | 1.5x | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU TYPE SELECTION |
|------------------------------------------------------------|
| Type | JP100 |
|-----------------------------+------------------------------|
| » | VR (3.37v) | Pins 2 & 3 closed |
|---+-------------------------+------------------------------|
| | VRE (3.53v) | Pins 1 & 2 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DMA CHANNEL SELECTION |
|------------------------------------------------------------|
| Channel | JS5 | JS7 | JS8 |
|-----------------+--------+----------------+----------------|
| » | Normal mode | Open | Open | Open |
|---+-------------+--------+----------------+----------------|
| | 1 | Closed | Pins 1 & 2 | Pins 1 & 2 |
| | | | closed | closed |
|---+-------------+--------+----------------+----------------|
| | 3 | Closed | Pins 2 & 3 | Pins 2 & 3 |
| | | | closed | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| FLOPPY DRIVE SELECTION |
|------------------------------------------------------------|
| Setting | JS1 | JS4 |
|----------------------+----------------+--------------------|
| » | Normal | Open | Open |
|---+------------------+----------------+--------------------|
| | Enhanced | Closed | Pins 2 & 3 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SCSI SELECTION |
|------------------------------------------------------------|
| Setting | JS11 |
|-----------------------------------+------------------------|
| » | 8-bit Fast | Open |
|---+-------------------------------+------------------------|
| | 8-bit/16-bit Fast-Wide | Closed |
|---+-------------------------------+------------------------|
| | 16-bit Fast Wide | Closed |
+------------------------------------------------------------+
