# AST RESEARCH, INC.
BRAVO MS-T (VIXEN)
PREMIUM III + (CHINA) (VIXEN)
Processor Pentium
Processor Speed 75/90/100/120/133/150/166/200MHz
Chip Set Unidentified
Video Chip Set ATI
Maximum Onboard 192MB
Memory
Maximum Video 2MB
Memory
Cache 256/512KB
BIOS Unidentified
Dimensions 254mm x 218mm
I/O Options CD-ROM interface, floppy drive interface, IDE
interfaces (2), parallel port, PS/2 mouse
port, serial ports (2), VGA port, riser slot,
cache slot, modem audio connector, audio out
connector, microphone in connector, ATI media
connector, power supply remote connector
NPU Options None

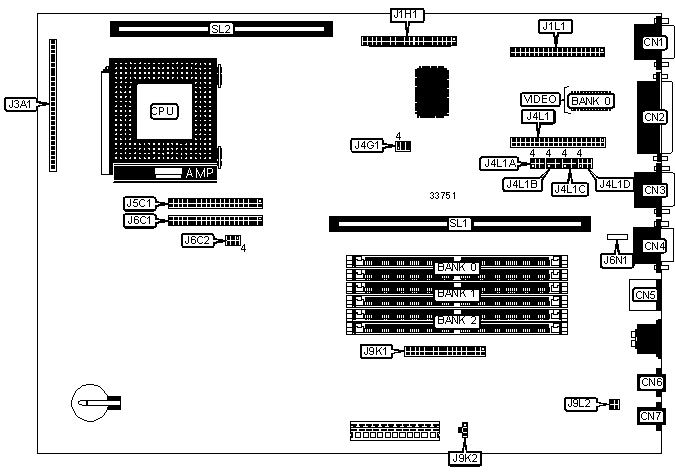

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-------------------+----------+------------------+----------|
| VGA port | CN1 | IDE interface 2 | J5C1 |
|-------------------+----------+------------------+----------|
| Parallel port | CN2 | IDE interface 1 | J6C1 |
|-------------------+----------+------------------+----------|
| Serial port | CN3 | CD-ROM audio | J6N1 |
| | | connector | |
|-------------------+----------+------------------+----------|
| Serial port | CN4 | Floppy drive | J9K1 |
| | | interface | |
|-------------------+----------+------------------+----------|
| PS/2 mouse port | CN5 | Power supply | J9K2 |
| | | connector | |
|-------------------+----------+------------------+----------|
| Microphone in | CN6 | Modem audio | J9L2 |
| connector | | connector | |
|-------------------+----------+------------------+----------|
| Audio out | CN7 | Riser slot | SL1 |
| connector | | | |
|-------------------+----------+------------------+----------|
| ATI media | J1H1 | Cache slot | SL2 |
| connector | | | |
|-------------------+----------+------------------+----------|
| Front panel | J3A1 | | |
| connector | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|---------------------------------------+-------+------------|
| » | CMOS memory normal operation | J4L1A | Pins 4 & 5 |
| | | | closed |
|---+-----------------------------------+-------+------------|
| | CMOS memory clear | J4L1A | Pins 5 & 6 |
| | | | closed |
|---+-----------------------------------+-------+------------|
| » | Password enabled | J4L1A | Pins 1 & 2 |
| | | | closed |
|---+-----------------------------------+-------+------------|
| | Password disabled | J4L1A | Pins 2 & 3 |
| | | | closed |
|---+-----------------------------------+-------+------------|
| » | Setup access enabled | J4L1B | Pins 1 & 2 |
| | | | closed |
|---+-----------------------------------+-------+------------|
| | Setup access disabled | J4L1B | Pins 2 & 3 |
| | | | closed |
|---+-----------------------------------+-------+------------|
| » | Factory configured - do not alter | J4L1B | Pins 4 & 5 |
| | | | closed |
|---+-----------------------------------+-------+------------|
| » | Factory configured - do not alter | J6C2 | Pins 1 & 2 |
| | | | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 |
|------------+---------------+---------------+---------------|
| 8MB | (2) 1M x 36 | None | None |
|------------+---------------+---------------+---------------|
| 16MB | (2) 1M x 36 | (2) 1M x 36 | None |
|------------+---------------+---------------+---------------|
| 16MB | (2) 2M x 36 | None | None |
|------------+---------------+---------------+---------------|
| 24MB | (2) 2M x 36 | (2) 1M x 36 | None |
|------------+---------------+---------------+---------------|
| 24MB | (2) 1M x 36 | (2) 1M x 36 | (2) 1M x 36 |
|------------+---------------+---------------+---------------|
| 32MB | (2) 4M x 36 | None | None |
|------------+---------------+---------------+---------------|
| 32MB | (2) 2M x 36 | (2) 2M x 36 | None |
|------------+---------------+---------------+---------------|
| 40MB | (2) 4M x 36 | (2) 1M x 36 | None |
|------------+---------------+---------------+---------------|
| 48MB | (2) 4M x 36 | (2) 2M x 36 | None |
|------------+---------------+---------------+---------------|
| 48MB | (2) 4M x 36 | (2) 1M x 36 | (2) 1M x 36 |
|------------+---------------+---------------+---------------|
| 64MB | (2) 8M x 36 | None | None |
|------------+---------------+---------------+---------------|
| 64MB | (2) 4M x 36 | (2) 4M x 36 | None |
|------------+---------------+---------------+---------------|
| 80MB | (2) 8M x 36 | (2) 2M x 36 | None |
|------------+---------------+---------------+---------------|
| 80MB | (2) 8M x 36 | (2) 1M x 36 | (2) 1M x 36 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION (CON’T) |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 |
|------------+---------------+---------------+---------------|
| 88MB | (2) 8M x 36 | (2) 2M x 36 | (2) 1M x 36 |
|------------+---------------+---------------+---------------|
| 96MB | (2) 8M x 36 | (2) 4M x 36 | None |
|------------+---------------+---------------+---------------|
| 96MB | (2) 4M x 36 | (2) 4M x 36 | (2) 4M x 36 |
|------------+---------------+---------------+---------------|
| 96MB | (2) 8M x 36 | (2) 2M x 36 | (2) 2M x 36 |
|------------+---------------+---------------+---------------|
| 128MB | (2) 8M x 36 | (2) 4M x 36 | (2) 4M x 36 |
|------------+---------------+---------------+---------------|
| 128MB | (2) 8M x 36 | (2) 8M x 36 | None |
|------------+---------------+---------------+---------------|
| 128MB | (2) 8M x 36 | (2) 8M x 36 | None |
|------------+---------------+---------------+---------------|
| 136MB | (2) 8M x 36 | (2) 8M x 36 | (2) 1M x 36 |
|------------+---------------+---------------+---------------|
| 144MB | (2) 8M x 36 | (2) 8M x 36 | (2) 2M x 36 |
|------------+---------------+---------------+---------------|
| 160MB | (2) 8M x 36 | (2) 8M x 36 | (2) 4M x 36 |
|------------+---------------+---------------+---------------|
| 192MB | (2) 8M x 36 | (2) 8M x 36 | (2) 8M x 36 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Size | SL2 |
|----------------------------+-------------------------------|
| 256KB | 256KB module installed |
|----------------------------+-------------------------------|
| 512KB | 512KB module installed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| VIDEO MEMORY CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | J1L1/J4L1 |
|--------------+---------------+-----------------------------|
| 1MB | 1MB | Not installed |
|--------------+---------------+-----------------------------|
| 2MB | 1MB | 1MB module installed |
|------------------------------------------------------------|
| Note: Bank 0 is factory installed and is not configurable. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED SELECTION |
|------------------------------------------------------------|
| CPU speed | Clock | Multiplier | J4L1C | J4L1D |
| | speed | | | |
|------------+----------+------------+------------+----------|
| 75MHz | 50MHz | 1.5x | 2 & 3, 5 & | 1 & 2, 4 |
| | | | 6 | & 5 |
|------------+----------+------------+------------+----------|
| 90MHz | 60MHz | 1.5x | 2 & 3, 4 & | 1 & 2, 4 |
| | | | 5 | & 5 |
|------------+----------+------------+------------+----------|
| 100MHz | 66MHz | 1.5x | 1 & 2, 5 & | 1 & 2, 4 |
| | | | 6 | & 5 |
|------------+----------+------------+------------+----------|
| 120MHz | 60MHz | 2x | 2 & 3, 4 & | 2 & 3, 4 |
| | | | 5 | & 5 |
|------------+----------+------------+------------+----------|
| 133MHz | 66MHz | 2x | 1 & 2, 5 & | 2 & 3, 4 |
| | | | 6 | & 5 |
|------------+----------+------------+------------+----------|
| 150MHz | 60MHz | 2.5x | 2 & 3, 4 & | 2 & 3, 5 |
| | | | 5 | & 6 |
|------------+----------+------------+------------+----------|
| 166MHz | 66MHz | 2.5x | 1 & 2, 5 & | 2 & 3, 5 |
| | | | 6 | & 6 |
|------------+----------+------------+------------+----------|
| 200MHz | 66MHz | 3x | 1 & 2, 5 & | 1 & 2, 4 |
| | | | 6 | & 5 |
|------------------------------------------------------------|
| Note: Pins designated should be in the closed position. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU TYPE SELECTION |
|------------------------------------------------------------|
| Type | J6C2 |
|-----------------------------+------------------------------|
| Standard (3.3v) | Pins 5 & 6 closed |
|-----------------------------+------------------------------|
| VRE (3.6v) | Pins 4 & 5 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| PCI SLOT SELECTION |
|------------------------------------------------------------|
| Setting | J4G1 |
|-------------------------------+----------------------------|
| » | Riser card with 2 slots | Pins 1 & 2, 4 & 5 closed |
|---+---------------------------+----------------------------|
| | Riser card with 3 slots | Pins 2 & 3, 5 & 6 closed |
+------------------------------------------------------------+
