# BIOSTAR MICROTECH INTERNATIONAL CORPORATION
MB-8600TTX-A (REV. 1.0)
Processor Pentium Pro
Processor Speed 133/150/166/180/200/233MHz
Chip Set Intel
Video Chip Set None
Maximum Onboard 128MB (EDO supported)
Memory
Maximum Video None
Memory
Cache 256/512KB (located on Pentium Pro CPU)
BIOS AMI
Dimensions 305mm x 243mm
I/O Options 32-bit PCI slots (4), floppy drive interface,
green PC connector, IDE interfaces (2),
parallel port, PS/2 mouse port, serial ports
(2), IR connector, USB connectors (2), ATX
power connector, power on connector
NPU Options None

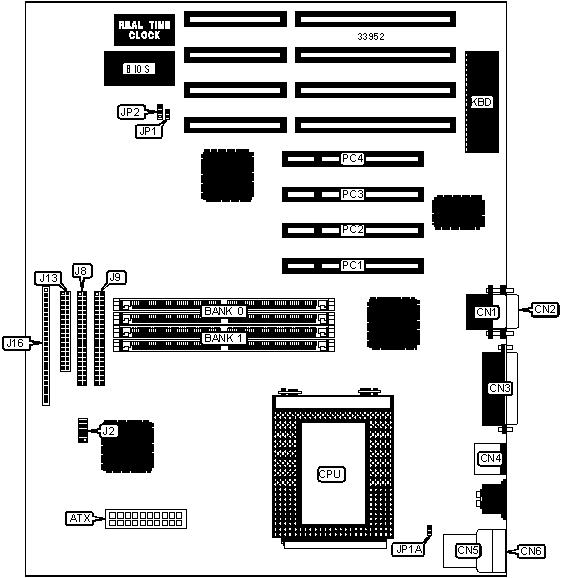

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-----------------+----------+------------------+------------|
| ATX power | ATX | Floppy drive | J13 |
| connector | | interface | |
|-----------------+----------+------------------+------------|
| Serial port 1 | CN1 | Speaker | J16 pins 1 |
| | | | - 4 |
|-----------------+----------+------------------+------------|
| Serial port 2 | CN2 | Reset switch | J16 pins 5 |
| | | | & 6 |
|-----------------+----------+------------------+------------|
| Parallel port | CN3 | Power LED | J16 pins 8 |
| | | | - 10 |
|-----------------+----------+------------------+------------|
| PS/2 mouse port | CN4 | IDE interface | J16 pins |
| | | LED | 12 - 15 |
|-----------------+----------+------------------+------------|
| USB connector | CN5 | IR connector | J16 pins |
| | | | 17 - 21 |
|-----------------+----------+------------------+------------|
| USB connector | CN6 | Green PC | J16 pins |
| | | connector | 23 & 24 |
|-----------------+----------+------------------+------------|
| IDE interface 1 | J8 | Power on | J16 pins |
| | | connector | 25 & 26 |
|-----------------+----------+------------------+------------|
| IDE interface 2 | J9 | 32-bit PCI slots | PC1 - PC4 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|-----------------------------------+-------+----------------|
| ยป | CMOS memory normal operation | JP1 | Open |
|---+-------------------------------+-------+----------------|
| | CMOS memory clear | JP2 | Closed |
|---+-------------------------------+-------+----------------|
| | Flash BIOS voltage select 12v | JP2 | Pins 2 & 3 |
| | | | closed |
|---+-------------------------------+-------+----------------|
| | Flash BIOS voltage select 5v | JP2 | Pins 1 & 2 |
| | | | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 8MB | (2) 1M x 36 | None |
|------------------+--------------------+--------------------|
| 16MB | (2) 2M x 36 | None |
|------------------+--------------------+--------------------|
| 16MB | (2) 1M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 24MB | (2) 2M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 32MB | (2) 4M x 36 | None |
|------------------+--------------------+--------------------|
| 32MB | (2) 2M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 40MB | (2) 4M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 48MB | (2) 4M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 64MB | (2) 8M x 36 | None |
|------------------+--------------------+--------------------|
| 64MB | (2) 4M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 72MB | (2) 8M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 80MB | (2) 8M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 96MB | (2) 8M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 128MB | (2) 8M x 36 | (2) 8M x 36 |
|------------------------------------------------------------|
| Note: Board accepts EDO memory. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Note: 256KB/512KB cache is located on the Pentium Pro CPU. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED SELECTION |
|------------------------------------------------------------|
| CPU speed | J2 |
|------------------+-----------------------------------------|
| 133MHz | Pins 1 & 2, 5 & 6, 7 & 8, 9 & 10 closed |
|------------------+-----------------------------------------|
| 150MHz | Pins 3 & 4, 7 & 8, 9 & 10 closed |
|------------------+-----------------------------------------|
| 166MHz | Pins 1 & 2, 7 & 8, 9 & 10 closed |
|------------------+-----------------------------------------|
| 180MHz | Pins 3 & 4, 5 & 6, 9 & 10 closed |
|------------------+-----------------------------------------|
| 200MHz | Pins 1 & 2, 5 & 6, 9 & 10 closed |
|------------------+-----------------------------------------|
| 233MHz | Pins 1 & 2, 9 & 10 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU VOLTAGE SELECTION |
|------------------------------------------------------------|
| Voltage | JP1A |
|-------------------------------+----------------------------|
| 2.9v | Open |
|-------------------------------+----------------------------|
| 3.1v | Closed |
+------------------------------------------------------------+
