# BJMT TECHNOLOGY CORPORATION
INTEL 82440FX
Processor Pentium Pro
Processor Speed 150/166/180/200MHz
Chip Set Intel
Video Chip Set None
Maximum Onboard 128MB (EDO supported)
Memory
Maximum Video None
Memory
Cache 256/512KB (located on Pentium Pro CPU)
BIOS Award
Dimensions 330mm x 218mm
I/O Options 32-bit PCI slots (4), floppy drive interface,
green PC connector, IDE interfaces (2),
parallel port, PS/2 mouse interface, serial
ports (2), IR connector, USB connector
NPU Options None
IMG IMG 1
+------------------------------------------------------------+

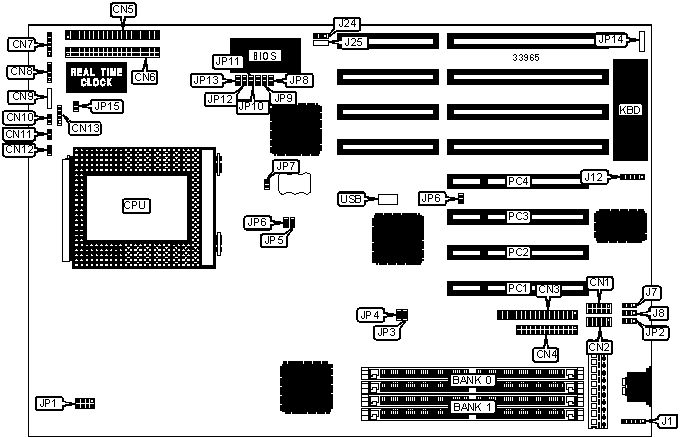

| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-------------------+----------+------------------+----------|
| Serial port 1 | CN1 | Turbo LED | CN10 |
|-------------------+----------+------------------+----------|
| Serial port 2 | CN2 | Reset switch | CN11 |
|-------------------+----------+------------------+----------|
| Floppy drive | CN3 | Green PC | CN12 |
| interface | | connector | |
|-------------------+----------+------------------+----------|
| Parallel port | CN4 | IDE interface | CN13 |
| | | LED | |
|-------------------+----------+------------------+----------|
| IDE interface 2 | CN5 | PS/2 mouse | J1 |
| | | interface | |
|-------------------+----------+------------------+----------|
| IDE interface 1 | CN6 | IR connector | J12 |
|-------------------+----------+------------------+----------|
| Power LED & | CN7 | 32-bit PCI slots | PC1 - |
| keylock | | | PC4 |
|-------------------+----------+------------------+----------|
| Speaker | CN8 | USB connector | USB |
|-------------------+----------+------------------+----------|
| Turbo switch | CN9 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|-------------------------------------+-------+--------------|
| | Flash BIOS voltage select 12v | J24 | Pins 2 & 3 |
| | | | closed |
|---+---------------------------------+-------+--------------|
| | Flash BIOS voltage select 5v | J24 | Pins 1 & 2 |
| | | | closed |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | J25 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | JP7 | Open |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | JP1 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | JP2 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | JP6 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | JP8 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | JP9 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | JP14 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | CMOS memory normal operation | JP15 | Open |
|---+---------------------------------+-------+--------------|
| | CMOS memory clear | JP15 | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|----------------+---------------------+---------------------|
| 8MB | (2) 1M x 36 | None |
|----------------+---------------------+---------------------|
| 16MB | (2) 2M x 36 | None |
|----------------+---------------------+---------------------|
| 16MB | (2) 1M x 36 | (2) 1M x 36 |
|----------------+---------------------+---------------------|
| 24MB | (2) 2M x 36 | (2) 1M x 36 |
|----------------+---------------------+---------------------|
| 32MB | (2) 4M x 36 | None |
|----------------+---------------------+---------------------|
| 32MB | (2) 2M x 36 | (2) 2M x 36 |
|----------------+---------------------+---------------------|
| 40MB | (2) 4M x 36 | (2) 1M x 36 |
|----------------+---------------------+---------------------|
| 48MB | (2) 4M x 36 | (2) 2M x 36 |
|----------------+---------------------+---------------------|
| 64MB | (2) 8M x 36 | None |
|----------------+---------------------+---------------------|
| 64MB | (2) 4M x 36 | (2) 4M x 36 |
|----------------+---------------------+---------------------|
| 72MB | (2) 8M x 36 | (2) 1M x 36 |
|----------------+---------------------+---------------------|
| 80MB | (2) 8M x 36 | (2) 2M x 36 |
|----------------+---------------------+---------------------|
| 96MB | (2) 8M x 36 | (2) 4M x 36 |
|----------------+---------------------+---------------------|
| 128MB | (2) 8M x 36 | (2) 8M x 36 |
|------------------------------------------------------------|
| Note: Board accepts EDO memory. Banks are interchangeable. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Note: 256KB/512KB cache is located on the Pentium Pro CPU. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED SELECTION |
|------------------------------------------------------------|
|CPU speed|Clock speed|Multiplier| JP3 | JP4 | JP5 | JP6 |
|---------+-----------+----------+------+------+------+------|
| 150MHz | 60MHz | 2.5x |Closed| Open | Open |Closed|
|---------+-----------+----------+------+------+------+------|
| 166MHz | 66MHz | 2.5x | Open |Closed|Closed| Open |
|---------+-----------+----------+------+------+------+------|
| 180MHz | 60MHz | 3x |Closed| Open | Open |Closed|
|---------+-----------+----------+------+------+------+------|
| 200MHz | 66MHz | 3x | Open |Closed|Closed| Open |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED SELECTION (CON'T) |
|------------------------------------------------------------|
|CPU speed|Clock speed|Multiplier| JP10 | JP11 | JP12 | JP13 |
|---------+-----------+----------+------+------+------+------|
| 150MHz | 60MHz | 2.5x |Closed|Closed|Closed| Open |
|---------+-----------+----------+------+------+------+------|
| 166MHz | 66MHz | 2.5x |Closed|Closed|Closed| Open |
|---------+-----------+----------+------+------+------+------|
| 180MHz | 60MHz | 3x |Closed|Closed| Open |Closed|
|---------+-----------+----------+------+------+------+------|
| 200MHz | 66MHz | 3x |Closed|Closed| Open |Closed|
+------------------------------------------------------------+
+------------------------------------------------------------+
| SERIAL PORT SELECTION |
|------------------------------------------------------------|
| Setting | J7 | J8 |
|------------------------+-----------------+-----------------|
| » | Used as COM2 | Pins 1 & 2 | Pins 1 & 2 |
| | | closed | closed |
|---+--------------------+-----------------+-----------------|
| | Used as IR | Pins 2 & 3 | Pins 2 & 3 |
| | connector | closed | closed |
+------------------------------------------------------------+
