# ADAPTIVE SOLUTIONS, INC.
CNAPS/PCI-XL
Card Type Transputer
Processor CNAPS-1016, CNAPS-1064-32, CNAPS-1064 (up to
256 processors total)
Processor Speed 20/25/30MHz
Chip Set Adaptive Solutions, Inc., Xilinx
Maximum Onboard 32MB DRAM, 512KB SRAM
Memory
Cache None
BIOS None
Dimensions 110.5mm x 312mm
I/O Options DC power in
NPU Options None

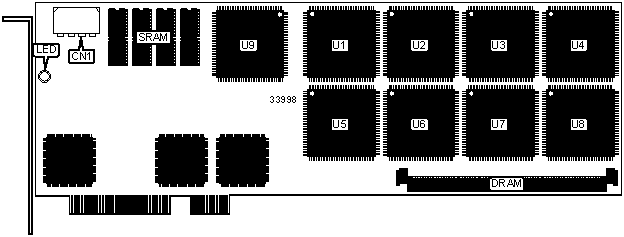

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label |
|-------------------------------+----------------------------|
| DC power in | CN1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Setting | DRAM |
|----------------------------+-------------------------------|
| 4MB | (1) 1M x 32 |
|----------------------------+-------------------------------|
| 8MB | (1) 2M x 32 |
|----------------------------+-------------------------------|
| 16MB | (1) 4M x 32 |
|----------------------------+-------------------------------|
| 32MB | (1) 8M x 32 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| PROCESSOR CONFIGURATION |
|------------------------------------------------------------|
| Processors | U1-U8 |
|--------------------------+---------------------------------|
| 64 | (4) CNAPS 1016 |
|--------------------------+---------------------------------|
| 128 | (8) CNAPS 1016 |
|--------------------------+---------------------------------|
| 128 | (4) CNAPS 1064-32 |
|--------------------------+---------------------------------|
| 256 | (8) CNAPS 1064-32 |
|--------------------------+---------------------------------|
| 256 | (4) CNAPS 1064-64 |
|------------------------------------------------------------|
| Note:The processors are installed at the factory and are |
| not user configurable. Other processor configurations may |
| exist for this board, but the board may not contain more |
| than 256 processors total. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|-----+------------+--------+--------------------------------|
| LED | Red or | On | Controller chip U9 is running |
| | green | | |
|-----+------------+--------+--------------------------------|
| LED | Red or | Off | Controller chip U9 is not |
| | green | | running |
+------------------------------------------------------------+
