# SILICON STAR INTERNATIONAL, INC.
SM5-A
Processor CX M1/AM K5/Pentium
Processor Speed 75/90/100/120/133/150/166/180/200MHz
Chip Set Intel
Video Chip Set None
Maximum Onboard 128MB (EDO supported)
Memory
Maximum Video None
Memory
Cache 256/512KB
BIOS Award
Dimensions 254mm x 218mm
I/O Options 32-bit PCI slots (3), floppy drive interface,
green PC connector, IDE interfaces (2),
parallel port, PS/2 mouse interface, serial
ports (2), IR connector, USB connector
NPU Options None

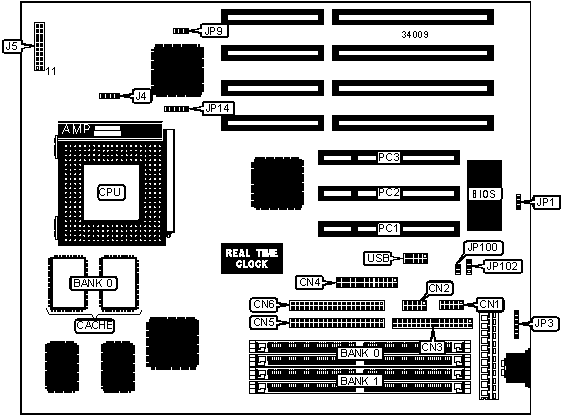

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-------------------+----------+------------------+----------|
| Serial port 1 | CN1 | Speaker | J5 pins |
| | | | 11 - 14 |
|-------------------+----------+------------------+----------|
| Serial port 2 | CN2 | Power LED & | J5 pins |
| | | keylock | 16 - 20 |
|-------------------+----------+------------------+----------|
| Floppy drive | CN3 | PS/2 mouse | JP3 |
| interface | | interface | |
|-------------------+----------+------------------+----------|
| Parallel port | CN4 | Chassis fan | JP9 |
| | | power | |
|-------------------+----------+------------------+----------|
| IDE interface 1 | CN5 | IR connector | JP14 |
|-------------------+----------+------------------+----------|
| IDE interface 2 | CN6 | Green PC | JP100 |
| | | connector | |
|-------------------+----------+------------------+----------|
| IDE interface LED | J4 | Power control | JP102 |
| | | connector | |
|-------------------+----------+------------------+----------|
| Reset switch | J5 pins | 32-bit PCI slots | PC1 – |
| | 1 & 2 | | PC3 |
|-------------------+----------+------------------+----------|
| Green PC | J5 pins | USB connector | USB |
| connector | 6 & 7 | | |
|-------------------+----------+------------------+----------|
| Turbo LED | J5 pins | | |
| | 8 & 9 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|----------------------------------+-------+-----------------|
| ? | CMOS memory normal operation | JP1 | Pins 1 & 2 |
| | | | closed |
|---+------------------------------+-------+-----------------|
| | CMOS memory clear | JP1 | Pins 2 & 3 |
| | | | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 8MB | (2) 1M x 32 | None |
|------------------+--------------------+--------------------|
| 16MB | (2) 2M x 32 | None |
|------------------+--------------------+--------------------|
| 16MB | (2) 1M x 32 | (2) 1M x 32 |
|------------------+--------------------+--------------------|
| 24MB | (2) 2M x 32 | (2) 1M x 32 |
|------------------+--------------------+--------------------|
| 32MB | (2) 4M x 32 | None |
|------------------+--------------------+--------------------|
| 32MB | (2) 2M x 32 | (2) 2M x 32 |
|------------------+--------------------+--------------------|
| 40MB | (2) 4M x 32 | (2) 1M x 32 |
|------------------+--------------------+--------------------|
| 48MB | (2) 4M x 32 | (2) 2M x 32 |
|------------------+--------------------+--------------------|
| 64MB | (2) 8M x 32 | None |
|------------------+--------------------+--------------------|
| 64MB | (2) 4M x 32 | (2) 4M x 32 |
|------------------+--------------------+--------------------|
| 72MB | (2) 8M x 32 | (2) 1M x 32 |
|------------------+--------------------+--------------------|
| 80MB | (2) 8M x 32 | (2) 2M x 32 |
|------------------+--------------------+--------------------|
| 96MB | (2) 8M x 32 | (2) 4M x 32 |
|------------------+--------------------+--------------------|
| 128MB | (2) 8M x 32 | (2) 8M x 32 |
|------------------------------------------------------------|
| Note: Board accepts EDO memory. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 |
|----------------------------+-------------------------------|
| 256KB | (2) 32K x 32 |
|----------------------------+-------------------------------|
| 512KB | (2) 64K x 32 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SELECTION |
|------------------------------------------------------------|
| Note: CPU speed and voltage are set through CPU Soft menu. |
| The menu is accessed through the BIOS. |
+------------------------------------------------------------+
