# ADVANCED INTEGRATION RESEARCH, INC.
P6NDI
Processor Pentium Pro
Processor Speed 150/180/200MHz
Chip Set Intel
Video Chip Set None
Maximum Onboard 1GB (EDO supported)
Memory
Maximum Video None
Memory
Cache 256/512/1024KB (located on Pentium Pro CPU)
BIOS AMI
Dimensions 305mm x 244mm
I/O Options 32-bit PCI slots (5), floppy drive interface,
green PC connector, IDE interfaces (2),
parallel port, PS/2 mouse port, serial ports
(2), IR connector, ATX power connector
NPU Options None

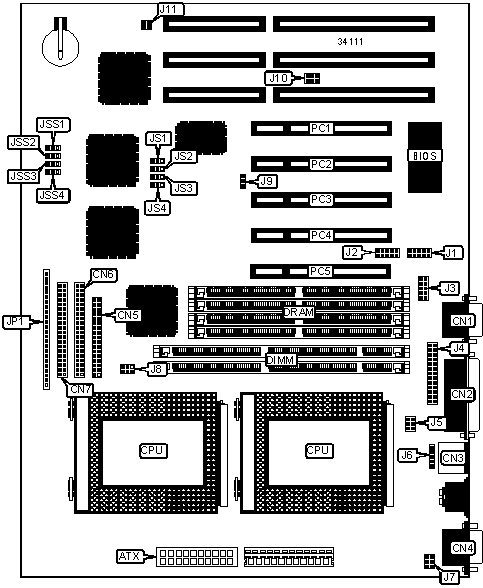

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|--------------------+-----------+---------------+-----------|
| ATX power | ATX | Turbo LED | JP1 pins |
| connector | | | 3 & 4 |
|--------------------+-----------+---------------+-----------|
| Serial port 2 | CN1 | Power LED & | JP1 pins |
| | | keylock | 5 - 9 |
|--------------------+-----------+---------------+-----------|
| Parallel port | CN2 | IDE interface | JP1 pins |
| | | LED | 10 - 13 |
|--------------------+-----------+---------------+-----------|
| PS/2 mouse port | CN3 | Speaker | JP1 pins |
| | | | 14 - 17 |
|--------------------+-----------+---------------+-----------|
| Serial port 1 | CN4 | Reset switch | JP1 pins |
| | | | 18 & 19 |
|--------------------+-----------+---------------+-----------|
| Floppy drive | CN5 | Green PC | JP1 pins |
| interface | | connector | 20 & 21 |
|--------------------+-----------+---------------+-----------|
| IDE interface 1 | CN6 | IR connector | JP1 pins |
| | | | 22 - 26 |
|--------------------+-----------+---------------+-----------|
| IDE interface 2 | CN7 | 32-bit PCI | PC1 - PC5 |
| | | slots | |
|--------------------+-----------+---------------+-----------|
| Soft on power | JP1 pins | | |
| supply | 1 & 2 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|-------------------------------------+-------+--------------|
| » | Factory configured - do not | J1 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | J2 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | J3 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | J4 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | J5 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | J6 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | J7 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | J8 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | J9 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | J10 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | J11 | Unidentified |
| | alter | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIMM/DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 | Bank 3 |
|-------+-------------+------------+------------+------------|
| 8MB | (2) 1M x 36 | None | None | None |
|-------+-------------+------------+------------+------------|
| 16MB | (2) 1M x 36 | (2) 1M x | None | None |
| | | 36 | | |
|-------+-------------+------------+------------+------------|
| 16MB | (2) 2M x 36 | None | None | None |
|-------+-------------+------------+------------+------------|
| 24MB | (2) 1M x 36 | (2) 1M x | (1) 1M x | None |
| | | 36 | 64 | |
|-------+-------------+------------+------------+------------|
| 32MB | (2) 1M x 36 | (2) 1M x | (1) 1M x | (1) 1M x |
| | | 36 | 64 | 64 |
|-------+-------------+------------+------------+------------|
| 32MB | (2) 2M x 36 | (2) 2M x | None | None |
| | | 36 | | |
|-------+-------------+------------+------------+------------|
| 32MB | (2) 4M x 36 | None | None | None |
|-------+-------------+------------+------------+------------|
| 48MB | (2) 2M x 36 | (2) 2M x | (1) 2M x | None |
| | | 36 | 64 | |
|-------+-------------+------------+------------+------------|
| 64MB | (2) 2M x 36 | (2) 2M x | (1) 2M x | (1) 2M x |
| | | 36 | 64 | 64 |
|-------+-------------+------------+------------+------------|
| 64MB | (2) 4M x 36 | (2) 4M x | None | None |
| | | 36 | | |
|-------+-------------+------------+------------+------------|
| 64MB | (2) 8M x 36 | None | None | None |
|-------+-------------+------------+------------+------------|
| 96MB | (2) 4M x 36 | (2) 4M x | (1) 4M x | None |
| | | 36 | 64 | |
|-------+-------------+------------+------------+------------|
| 128MB | (2) 4M x 36 | (2) 4M x | (1) 4M x | (1) 4M x |
| | | 36 | 64 | 64 |
|-------+-------------+------------+------------+------------|
| 128MB | (2) 8M x 36 | (2) 8M x | None | None |
| | | 36 | | |
|-------+-------------+------------+------------+------------|
| 128MB | (2) 16M x | None | None | None |
| | 36 | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIMM/DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 | Bank 3 |
|---------+--------------+-----------+-----------+-----------|
| 192MB | (2) 8M x 36 | (2) 8M x | (1) 8M x | None |
| | | 36 | 64 | |
|---------+--------------+-----------+-----------+-----------|
| 256MB | (2) 8M x 36 | (2) 8M x | (1) 8M x | (1) 8M x |
| | | 36 | 64 | 64 |
|---------+--------------+-----------+-----------+-----------|
| 256MB | (2) 16M x 36 | (2) 16M x | None | None |
| | | 36 | | |
|---------+--------------+-----------+-----------+-----------|
| 256MB | (2) 32M x 36 | None | None | None |
|---------+--------------+-----------+-----------+-----------|
| 384MB | (2) 16M x 36 | (2) 16M x | (1) 16M x | None |
| | | 36 | 64 | |
|---------+--------------+-----------+-----------+-----------|
| 512MB | (2) 16M x 36 | (2) 16M x | (1) 16M x | (1) 16M x |
| | | 36 | 64 | 64 |
|---------+--------------+-----------+-----------+-----------|
| 512MB | (2) 32M x 36 | (2) 32M x | None | None |
| | | 36 | | |
|---------+--------------+-----------+-----------+-----------|
| 768MB | (2) 32M x 36 | (2) 32M x | (1) 32M x | None |
| | | 36 | 64 | |
|---------+--------------+-----------+-----------+-----------|
| 1GB | (2) 32M x 36 | (2) 32M x | (1) 32M x | (1) 32M x |
| | | 36 | 64 | 64 |
|------------------------------------------------------------|
| Note: Board accepts EDO memory. Board also accepts x 32 |
| SIMMs and x 72 DIMMs. The location of the banks are |
| unidentified. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Note: 256KB/512KB/1MB cache is located on the Pentium Pro |
| CPU. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED SELECTION |
|------------------------------------------------------------|
| Speed | JS1 | JS2 | JS3 | JS4 | JSS1 | JSS2 | JSS3 | JSS4 |
|--------+-----+-----+-----+-----+------+------+------+------|
| 150MHz | 1 & | 1 & | 1 & | 1 & | 2 & | 1 & | 1 & | 1 & |
| | 2 | 2 | 2 | 2 | 3 | 2 | 2 | 2 |
|--------+-----+-----+-----+-----+------+------+------+------|
| 180MHz | 1 & | 1 & | 1 & | 1 & | 1 & | 2 & | 1 & | 1 & |
| | 2 | 2 | 2 | 2 | 2 | 3 | 2 | 2 |
|--------+-----+-----+-----+-----+------+------+------+------|
| 200MHz | 2 & | 2 & | 2 & | 2 & | 1 & | 2 & | 1 & | 1 & |
| | 3 | 3 | 3 | 3 | 2 | 3 | 2 | 2 |
|------------------------------------------------------------|
| Note: Pins designated should be in the closed position. |
+------------------------------------------------------------+
