# ADVANCED INTEGRATION RESEARCH, INC.
P6NPI
Processor Pentium Pro
Processor Speed 133/150/166/180/200MHz
Chip Set Intel
Video Chip Set None
Maximum Onboard 512MB (EDO supported)
Memory
Maximum Video None
Memory
Cache 256/512KB (located on Pentium Pro CPU)
BIOS AMI
Dimensions 305mm x 244mm
I/O Options 32-bit PCI slots (4), floppy drive interface,
green PC connector, IDE interfaces (2), Ultra
Wide SCSI interface, Fast SCSI interface,
parallel port, PS/2 mouse port, serial ports
(2), IR connector, ATX power connector
NPU Options None

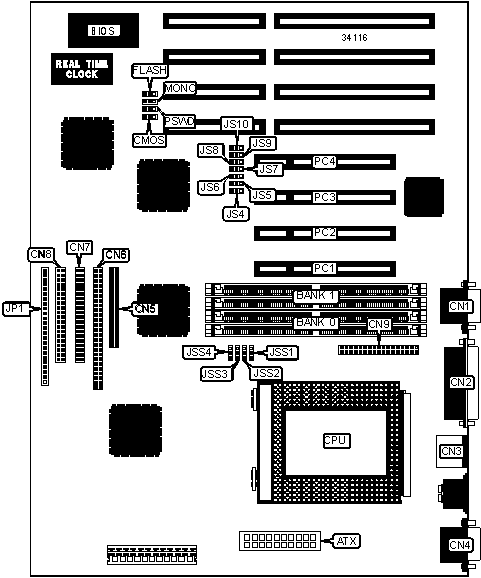

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|------------------+----------+------------------+-----------|
| ATX power | ATX | Soft on power | JP1 pins |
| connector | | | 1 & 2 |
|------------------+----------+------------------+-----------|
| Serial port 2 | CN1 | Turbo LED | JP1 pins |
| | | | 3 & 4 |
|------------------+----------+------------------+-----------|
| Parallel port | CN2 | Power LED & | JP1 pins |
| | | keylock | 5 - 9 |
|------------------+----------+------------------+-----------|
| PS/2 mouse port | CN3 | IDE interface | JP1 pins |
| | | LED | 10 - 13 |
|------------------+----------+------------------+-----------|
| Serial port 1 | CN4 | Speaker | JP1 pins |
| | | | 14 - 17 |
|------------------+----------+------------------+-----------|
| Ultra Wide SCSI | CN5 | Reset switch | JP1 pins |
| interface | | | 18 & 19 |
|------------------+----------+------------------+-----------|
| Fast SCSI | CN6 | Green PC | JP1 pins |
| interface | | connector | 20 & 21 |
|------------------+----------+------------------+-----------|
| IDE interface 1 | CN7 | IR connector | JP1 pins |
| | | | 22 - 26 |
|------------------+----------+------------------+-----------|
| IDE interface 2 | CN8 | 32-bit PCI slots | PC1 - PC4 |
|------------------+----------+------------------+-----------|
| Floppy drive | CN9 | | |
| interface | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|---------------------------------------+-------+------------|
| » | SCSI high byte termination select | JS8 | Pins 1 & 2 |
| | auto | | closed |
|---+-----------------------------------+-------+------------|
| | SCSI high byte termination select | JS8 | Pins 2 & 3 |
| | always | | closed |
|---+-----------------------------------+-------+------------|
| » | RAID support select normal | JS9 | Pins 1 & 2 |
| | | | closed |
|---+-----------------------------------+-------+------------|
| | RAID support select ARO-1130 RAID | JS9 | Pins 2 & 3 |
| | card installed | | closed |
|---+-----------------------------------+-------+------------|
| » | SCSI data bus width select Fast | JS10 | Pins 1 & 2 |
| | 8-bit | | closed |
|---+-----------------------------------+-------+------------|
| | SCSI data bus width select Fast | JS10 | Pins 2 & 3 |
| | and Wide 16-bit | | closed |
|---+-----------------------------------+-------+------------|
| | Flash BIOS voltage select 12v | FLASH | Pins 1 & 2 |
| | | | closed |
|---+-----------------------------------+-------+------------|
| | Flash BIOS voltage select 5v | FLASH | Pins 2 & 3 |
| | | | closed |
|---+-----------------------------------+-------+------------|
| » | CMOS memory normal operation | CMOS | Pins 1 & 2 |
| | | | closed |
|---+-----------------------------------+-------+------------|
| | CMOS memory clear | CMOS | Pins 2 & 3 |
| | | | closed |
|---+-----------------------------------+-------+------------|
| » | Monitor type select color | MONO | Pins 1 & 2 |
| | | | closed |
|---+-----------------------------------+-------+------------|
| | Monitor type select monochrome | MONO | Pins 2 & 3 |
| | | | closed |
|---+-----------------------------------+-------+------------|
| » | Password normal operation | PSWD | Pins 1 & 2 |
| | | | closed |
|---+-----------------------------------+-------+------------|
| | Password clear | PSWD | Pins 2 & 3 |
| | | | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 4MB | (2) 512K x 36 | None |
|------------------+--------------------+--------------------|
| 8MB | (2) 512K x 36 | (2) 512K x 36 |
|------------------+--------------------+--------------------|
| 8MB | (2) 1M x 36 | None |
|------------------+--------------------+--------------------|
| 16MB | (2) 2M x 36 | None |
|------------------+--------------------+--------------------|
| 16MB | (2) 1M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 32MB | (2) 4M x 36 | None |
|------------------+--------------------+--------------------|
| 32MB | (2) 2M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 64MB | (2) 8M x 36 | None |
|------------------+--------------------+--------------------|
| 64MB | (2) 4M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 128MB | (2) 8M x 36 | (2) 8M x 36 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION (CON'T) |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|----------------+---------------------+---------------------|
| 128MB | (2) 16M x 36 | None |
|----------------+---------------------+---------------------|
| 256MB | (2) 16M x 36 | (2) 16M x 36 |
|----------------+---------------------+---------------------|
| 256MB | (2) 32M x 36 | None |
|----------------+---------------------+---------------------|
| 512MB | (2) 32M x 36 | (2) 32M x 36 |
|------------------------------------------------------------|
| Note: Board accepts EDO memory. Board also accepts x 32 |
| SIMMs. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Note: 256KB/512KB cache is located on the Pentium Pro CPU. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED SELECTION |
|------------------------------------------------------------|
| CPU | Clock | Multiplier | JS4 | JS5 | JS6 | JS7 |
| speed | speed | | | | | |
|--------+--------+------------+-------+-------+------+------|
| 133MHz | 66MHz | 2x | 2 & 3 | 2 & 3 | 2 & | 2 & |
| | | | | | 3 | 3 |
|--------+--------+------------+-------+-------+------+------|
| 150MHz | 60MHz | 2.5x | 1 & 2 | 1 & 2 | 1 & | 1 & |
| | | | | | 2 | 2 |
|--------+--------+------------+-------+-------+------+------|
| 166MHz | 66MHz | 2.5x | 2 & 3 | 2 & 3 | 2 & | 2 & |
| | | | | | 3 | 3 |
|--------+--------+------------+-------+-------+------+------|
| 180MHz | 60MHz | 3x | 1 & 2 | 1 & 2 | 1 & | 1 & |
| | | | | | 2 | 2 |
|--------+--------+------------+-------+-------+------+------|
| 200MHz | 66MHz | 3x | 2 & 3 | 2 & 3 | 2 & | 2 & |
| | | | | | 3 | 3 |
|------------------------------------------------------------|
| Note: Pins designated should be in the closed position. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED SELECTION (CON'T) |
|------------------------------------------------------------|
| CPU | Clock | Multiplier | JSS1 | JSS2 | JSS3 | JSS4 |
| speed | speed | | | | | |
|--------+--------+------------+-------+-------+------+------|
| 133MHz | 66MHz | 2x | 1 & 2 | 1 & 2 | 1 & | 1 & |
| | | | | | 2 | 2 |
|--------+--------+------------+-------+-------+------+------|
| 150MHz | 60MHz | 2.5x | 1 & 2 | 1 & 2 | 1 & | 2 & |
| | | | | | 2 | 3 |
|--------+--------+------------+-------+-------+------+------|
| 166MHz | 66MHz | 2.5x | 1 & 2 | 1 & 2 | 1 & | 2 & |
| | | | | | 2 | 3 |
|--------+--------+------------+-------+-------+------+------|
| 180MHz | 60MHz | 3x | 1 & 2 | 1 & 2 | 2 & | 1 & |
| | | | | | 3 | 2 |
|--------+--------+------------+-------+-------+------+------|
| 200MHz | 66MHz | 3x | 1 & 2 | 1 & 2 | 2 & | 1 & |
| | | | | | 3 | 2 |
|------------------------------------------------------------|
| Note: Pins designated should be in the closed position. |
+------------------------------------------------------------+
