# AMPTRON INTERNATIONAL, INC.
PM-PRO1000
Processor Pentium Pro
Processor Speed 150/166/180/200MHz
Chip Set Intel
Video Chip Set None
Maximum Onboard 1GB (EDO supported)
Memory
Maximum Video None
Memory
Cache 256/512KB (located on Pentium Pro CPU)
BIOS Award
Dimensions 280mm x 220mm
I/O Options 32-bit PCI slots (4), floppy drive interface,
green PC connector, IDE interfaces (2),
parallel port, serial ports (2), VRM
connector, USB connector
NPU Options None

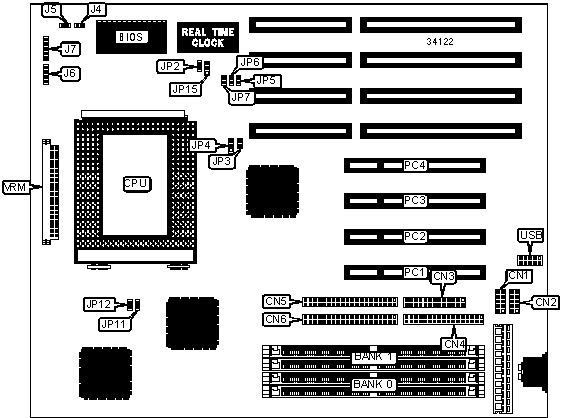

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-------------------+----------+------------------+----------|
| Serial port 2 | CN1 | Reset switch | J5 |
|-------------------+----------+------------------+----------|
| Serial port 1 | CN2 | Speaker | J6 |
|-------------------+----------+------------------+----------|
| Parallel port | CN3 | Power LED & | J7 |
| | | keylock | |
|-------------------+----------+------------------+----------|
| Floppy drive | CN4 | Green PC | JP3 |
| interface | | connector | |
|-------------------+----------+------------------+----------|
| IDE interface 2 | CN5 | 32-bit PCI slots | PC1 – |
| | | | PC4 |
|-------------------+----------+------------------+----------|
| IDE interface 1 | CN6 | USB connector | USB |
|-------------------+----------+------------------+----------|
| IDE interface LED | J4 | VRM connector | VRM |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|-----------------------------------+-------+----------------|
| | Flash BIOS voltage select 12v | JP2 | Pins 2 & 3 |
| | | | closed |
|---+-------------------------------+-------+----------------|
| | Flash BIOS voltage select 5v | JP2 | Pins 1 & 2 |
| | | | closed |
|---+-------------------------------+-------+----------------|
| » | CMOS memory normal operation | JP15 | Open |
|---+-------------------------------+-------+----------------|
| | CMOS memory clear | JP15 | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 8MB | (2) 1M x 36 | None |
|------------------+--------------------+--------------------|
| 16MB | (2) 2M x 36 | None |
|------------------+--------------------+--------------------|
| 16MB | (2) 1M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 24MB | (2) 2M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 32MB | (2) 4M x 36 | None |
|------------------+--------------------+--------------------|
| 32MB | (2) 2M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 40MB | (2) 4M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 48MB | (2) 4M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 64MB | (2) 8M x 36 | None |
|------------------+--------------------+--------------------|
| 64MB | (2) 4M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 72MB | (2) 8M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 80MB | (2) 8M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 96MB | (2) 8M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 128MB | (2) 8M x 36 | (2) 8M x 36 |
|------------------+--------------------+--------------------|
| 128MB | (2) 16M x 36 | None |
|------------------+--------------------+--------------------|
| 136MB | (2) 16M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 144MB | (2) 16M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 160MB | (2) 16M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 192MB | (2) 16M x 36 | (2) 8M x 36 |
|------------------+--------------------+--------------------|
| 256MB | (2) 16M x 36 | (2) 16M x 36 |
|------------------+--------------------+--------------------|
| 256MB | (2) 32M x 36 | None |
|------------------+--------------------+--------------------|
| 264MB | (2) 32M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 272MB | (2) 32M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 288MB | (2) 32M x 36 | (2) 4M x 36 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION (CON’T) |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|---------------+----------------------+---------------------|
| 320MB | (2) 32M x 36 | (2) 8M x 36 |
|---------------+----------------------+---------------------|
| 384MB | (2) 32M x 36 | (2) 16M x 36 |
|---------------+----------------------+---------------------|
| 512MB | (2) 32M x 36 | (2) 32M x 36 |
|---------------+----------------------+---------------------|
| 512MB | (2) 64M x 36 | None |
|---------------+----------------------+---------------------|
| 520MB | (2) 64M x 36 | (2) 1M x 36 |
|---------------+----------------------+---------------------|
| 528MB | (2) 64M x 36 | (2) 2M x 36 |
|---------------+----------------------+---------------------|
| 544MB | (2) 64M x 36 | (2) 4M x 36 |
|---------------+----------------------+---------------------|
| 576MB | (2) 64M x 36 | (2) 8M x 36 |
|---------------+----------------------+---------------------|
| 640MB | (2) 64M x 36 | (2) 16M x 36 |
|---------------+----------------------+---------------------|
| 768MB | (2) 64M x 36 | (2) 32M x 36 |
|---------------+----------------------+---------------------|
| 1GB | (2) 64M x 36 | (2) 64M x 36 |
|------------------------------------------------------------|
| Note: Board accepts EDO memory. Banks are interchangeable. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Note: 256KB/512KB cache is located on the Pentium Pro CPU. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED SELECTION |
|------------------------------------------------------------|
| CPU | Clock | Multiplier | JP4 | JP5 | JP6 |
| speed | speed | | | | |
|----------+----------+------------+-------+--------+--------|
| 150MHz | 60MHz | 2.5x | 2 & 3 | Open | Closed |
|----------+----------+------------+-------+--------+--------|
| 166MHz | 66MHz | 2.5x | 1 & 2 | Open | Closed |
|----------+----------+------------+-------+--------+--------|
| 180MHz | 60MHz | 3x | 1 & 2 | Closed | Open |
|----------+----------+------------+-------+--------+--------|
| 200MHz | 66MHz | 3x | 1 & 2 | Closed | Open |
|------------------------------------------------------------|
| Note: Pins designated should be in the closed position. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED SELECTION (CON’T) |
|------------------------------------------------------------|
| CPU | Clock | Multiplier | JP7 | JP11 | JP12 |
| speed | speed | | | | |
|---------+----------+------------+--------+--------+--------|
| 150MHz | 60MHz | 2.5x | Closed | Closed | Open |
|---------+----------+------------+--------+--------+--------|
| 166MHz | 66MHz | 2.5x | Closed | Open | Closed |
|---------+----------+------------+--------+--------+--------|
| 180MHz | 60MHz | 3x | Closed | Closed | Open |
|---------+----------+------------+--------+--------+--------|
| 200MHz | 66MHz | 3x | Closed | Open | Closed |
+------------------------------------------------------------+
