       # ACER, INC.

          V20L-486 ALL IN ONE

       Processor  AM486SX/80486SX/AM486DX/80486DX/CX486DX2/AM486DX2/
                  80486DX2/80486DX4/P24D/P24T
       Processor  25/33/40/50(internal)/50/66(internal)/75(internal)/100(internal)MHz
       Speed
       Chip Set   ALI
       Video Chip None
       Set
       Maximum    Unidentified
       Onboard
       Memory
       Maximum    None
       Video
       Memory
       Cache      128/256/512KB
       BIOS       Unidentified
       Dimensions 330mm x 218mm
       I/O        32-bit VESA local bus slot, floppy drive interface, green PC
       Options    connector, IDE interfaces (2), parallel port, PS/2 mouse port,
                  serial ports (2)
       NPU        None
       Options

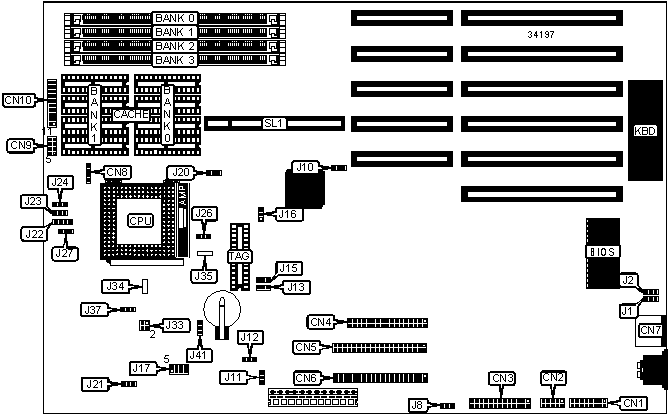

   IMG IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          | Purpose        | Location | Purpose          |  Location   |
          |----------------+----------+------------------+-------------|
          | Serial port 2  |   CN1    | Power LED &      | CN9/pins 1  |
          |                |          | keylock          |     - 4     |
          |----------------+----------+------------------+-------------|
          | Serial port 1  |   CN2    | Reset switch     | CN9/pins 7  |
          |                |          |                  |     & 8     |
          |----------------+----------+------------------+-------------|
          | Parallel port  |   CN3    | Power LED &      | CN10/pins 1 |
          |                |          | keylock          |     - 5     |
          |----------------+----------+------------------+-------------|
          | Floppy drive   |   CN4    | Speaker          | CN10/pins 7 |
          | interface      |          |                  |    - 10     |
          |----------------+----------+------------------+-------------|
          | IDE interface  |   CN5    | Turbo LED        |  CN10/pins  |
          | 1              |          |                  |   12 & 13   |
          |----------------+----------+------------------+-------------|
          | IDE interface  |   CN6    | Turbo switch     |  CN10/pins  |
          | 2              |          |                  |   15 - 17   |
          |----------------+----------+------------------+-------------|
          | PS/2 mouse     |   CN7    | Reset switch     |  CN10/pins  |
          | port           |          |                  |   19 & 20   |
          |----------------+----------+------------------+-------------|
          | IDE interface  |   CN8    | 32-bit VESA      |     SL1     |
          | LED            |          | local bus slot   |             |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 USER CONFIGURABLE SETTINGS                 |
          |------------------------------------------------------------|
          |              Function               | Label |   Position   |
          |-------------------------------------+-------+--------------|
          | » | Password disabled               |  J1   |  Pins 2 & 3  |
          |   |                                 |       |    closed    |
          |---+---------------------------------+-------+--------------|
          |   | Password enabled                |  J1   |  Pins 1 & 2  |
          |   |                                 |       |    closed    |
          |---+---------------------------------+-------+--------------|
          | » | Factory configured - do not     |  J2   |  Pins 2 & 3  |
          |   | alter (OEM BIOS enabled)        |       |    closed    |
          |---+---------------------------------+-------+--------------|
          | » | M5115 I/O enabled               |  J8   |  Pins 1 & 2  |
          |   |                                 |       |    closed    |
          |---+---------------------------------+-------+--------------|
          |   | M5115 I/O disabled              |  J8   |  Pins 2 & 3  |
          |   |                                 |       |    closed    |
          |---+---------------------------------+-------+--------------|
          | » | Factory configured - do not     |  J10  | Unidentified |
          |   | alter                           |       |              |
          |---+---------------------------------+-------+--------------|
          | » | Local bus IDE I/O address       |  J11  |  Pins 1 & 2  |
          |   | select 0FXH                     |       |    closed    |
          |---+---------------------------------+-------+--------------|
          |   | Local bus IDE I/O address       |  J11  |  Pins 2 & 3  |
          |   | select 07XH                     |       |    closed    |
          |---+---------------------------------+-------+--------------|
          | » | Local bus IDE enabled           |  J12  |  Pins 2 & 3  |
          |   |                                 |       |    closed    |
          |---+---------------------------------+-------+--------------|
          |   | Local bus IDE disabled          |  J12  |  Pins 1 & 2  |
          |   |                                 |       |    closed    |
          |---+---------------------------------+-------+--------------|
          | » | Factory configured - do not     |  J22  | Unidentified |
          |   | alter                           |       |              |
          |---+---------------------------------+-------+--------------|
          |   | Reset switch enabled            |  J23  |  Pins 1 & 2  |
          |   |                                 |       |    closed    |
          |---+---------------------------------+-------+--------------|
          |   | Reset switch disabled           |  J23  |  Pins 2 & 3  |
          |   |                                 |       |    closed    |
          |---+---------------------------------+-------+--------------|
          |   | Green PC connector enabled      |  J24  |  Pins 1 & 2  |
          |   |                                 |       |    closed    |
          |---+---------------------------------+-------+--------------|
          |   | Green PC connector disabled     |  J24  |  Pins 2 & 3  |
          |   |                                 |       |    closed    |
          |---+---------------------------------+-------+--------------|
          |   | Factory configured - do not     |  J41  |  Pins 2 & 3  |
          |   | alter                           |       |    closed    |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     DRAM CONFIGURATION                     |
          |------------------------------------------------------------|
          | Note: The maximum amount of memory is unidentified.        |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                    CACHE CONFIGURATION                     |
          |------------------------------------------------------------|
          |    Size    |    Bank 0     |    Bank 1     |      TAG      |
          |------------+---------------+---------------+---------------|
          |   128KB    |  (4) 32K x 8  |     None      |  (1) 32K x 8  |
          |------------+---------------+---------------+---------------|
          |   256KB    |  (4) 32K x 8  |  (4) 32K x 8  |  (1) 32K x 8  |
          |------------+---------------+---------------+---------------|
          |   512KB    | (4) 128K x 8  |     None      |  (1) 32K x 8  |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 CACHE JUMPER CONFIGURATION                 |
          |------------------------------------------------------------|
          | Size  |       J13       |       J15       |      J16       |
          |-------+-----------------+-----------------+----------------|
          | 128KB |   Pins 2 & 3    |   Pins 2 & 3    |   Pins 1 & 2   |
          |       |     closed      |     closed      |     closed     |
          |-------+-----------------+-----------------+----------------|
          | 256KB |   Pins 2 & 3    |   Pins 1 & 2    |   Pins 2 & 3   |
          |       |     closed      |     closed      |     closed     |
          |-------+-----------------+-----------------+----------------|
          | 512KB |   Pins 1 & 2    |   Pins 1 & 2    |   Pins 1 & 2   |
          |       |     closed      |     closed      |     closed     |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                    CPU SPEED SELECTION                     |
          |------------------------------------------------------------|
          |      Speed       |        JP17        |        JP21        |
          |------------------+--------------------+--------------------|
          |      25MHz       | Pins 1 & 5 closed  | Pins 2 & 3 closed  |
          |------------------+--------------------+--------------------|
          |      33MHz       | Pins 2 & 6 closed  | Pins 2 & 3 closed  |
          |------------------+--------------------+--------------------|
          |      40MHz       | Pins 3 & 7 closed  | Pins 1 & 2 closed  |
          |------------------+--------------------+--------------------|
          |      50iMHz      | Pins 1 & 5 closed  | Pins 2 & 3 closed  |
          |------------------+--------------------+--------------------|
          |      50MHz       | Pins 4 & 8 closed  | Pins 1 & 2 closed  |
          |------------------+--------------------+--------------------|
          |      66iMHz      | Pins 2 & 6 closed  | Pins 2 & 3 closed  |
          |------------------+--------------------+--------------------|
          |      75iMHz      | Pins 1 & 5 closed  | Pins 2 & 3 closed  |
          |------------------+--------------------+--------------------|
          |     100iMHz      | Pins 2 & 6 closed  | Pins 2 & 3 closed  |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     CPU TYPE SELECTION                     |
          |------------------------------------------------------------|
          |   Type   | J20  | J26  |  J27  | J33  | J34  | J35  | J37  |
          |----------+------+------+-------+------+------+------+------|
          | AM486SX  | 1 &  | 1 &  | 1 & 2 | 1 &  | 2 &  | 2 &  | 2 &  |
          |          |  2   |  2   |       |  3   |  3   |  3   |  3   |
          |----------+------+------+-------+------+------+------+------|
          | 80486SX  | 1 &  | 2 &  | 2 & 3 | 1 &  | 2 &  | 2 &  | 2 &  |
          |          |  2   |  3   |       |  3   |  3   |  3   |  3   |
          |----------+------+------+-------+------+------+------+------|
          | AM486DX  | 1 &  | 1 &  | 1 & 2 | 1 &  | 2 &  | 2 &  | 2 &  |
          |          |  2   |  2   |       |  3   |  3   |  3   |  3   |
          |----------+------+------+-------+------+------+------+------|
          | 80486DX  | 1 &  | 2 &  | 2 & 3 | 1 &  | 2 &  | 2 &  | 2 &  |
          |          |  2   |  3   |       |  3   |  3   |  3   |  3   |
          |----------+------+------+-------+------+------+------+------|
          | CX486DX2 | 1 &  | 2 &  | Open  | 2 &  | 1 &  | 2 &  | 1 &  |
          |          |  2   |  3   |       |  4   |  2   |  3   |  2   |
          |----------+------+------+-------+------+------+------+------|
          | AM486DX2 | 1 &  | 1 &  | 1 & 2 | 1 &  | 2 &  | 2 &  | 2 &  |
          |          |  2   |  2   |       |  3   |  3   |  3   |  3   |
          |----------+------+------+-------+------+------+------+------|
          | 80486DX2 | 1 &  | 2 &  | 2 & 3 | 1 &  | 2 &  | 2 &  | 2 &  |
          |          |  2   |  3   |       |  3   |  3   |  3   |  3   |
          |----------+------+------+-------+------+------+------+------|
          | 80486DX4 | 1 &  | 2 &  | 2 & 3 | 1 &  | 2 &  | 2 &  | 2 &  |
          |          |  2   |  3   |       |  3   |  3   |  3   |  3   |
          |----------+------+------+-------+------+------+------+------|
          |   P24D   | 2 &  | 2 &  | 2 & 3 | 1 &  | 2 &  | 1 &  | 2 &  |
          |          |  3   |  3   |       |  3   |  3   |  2   |  3   |
          |----------+------+------+-------+------+------+------+------|
          |   P24T   | 2 &  | 2 &  | 2 & 3 | 1 &  | 2 &  | 1 &  | 2 &  |
          |          |  3   |  3   |       |  3   |  3   |  2   |  3   |
          |------------------------------------------------------------|
          | Note: Pins designated should be in the closed position.    |
          +------------------------------------------------------------+
