# ACER, INC.
AP65
Processor Pentium Pro
Processor Speed 150/166/180/200MHz
Chip Set Unidentified
Video Chip Set None
Maximum Onboard 512MB (EDO supported)
Memory
Maximum Video None
Memory
Cache 256/512KB (located on Pentium Pro CPU)
BIOS Unidentified
Dimensions 330mm x 218mm
I/O Options 32-bit PCI slots (4), floppy drive interface,
green PC connector, IDE interfaces (2),
parallel port, PS/2 mouse interface, serial
ports (2), IR connector, VRM connector, USB
connector
NPU Options None

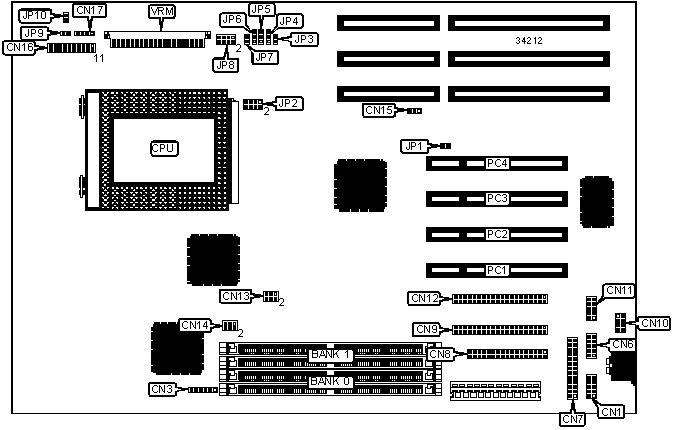

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|------------------+----------+----------------+-------------|
| Serial port 1 | CN1 | Power LED & | CN16/pins 1 |
| | | keylock | - 5 |
|------------------+----------+----------------+-------------|
| IR connector | CN3 | Speaker | CN16/pins 7 |
| | | | - 10 |
|------------------+----------+----------------+-------------|
| Serial port 2 | CN6 | Green PC LED | CN16/pins |
| | | | 12 & 13 |
|------------------+----------+----------------+-------------|
| Parallel port | CN7 | Green PC | CN16/pins |
| | | connector | 15 - 17 |
|------------------+----------+----------------+-------------|
| Floppy drive | CN8 | Reset switch | CN16/pins |
| interface | | | 19 & 20 |
|------------------+----------+----------------+-------------|
| IDE interface 1 | CN9 | IDE interface | CN17 |
| | | LED | |
|------------------+----------+----------------+-------------|
| PS/2 mouse | CN10 | Chassis fan | JP10 |
| interface | | power | |
|------------------+----------+----------------+-------------|
| USB connector | CN11 | 32-bit PCI | PC1 – PC4 |
| | | slots | |
|------------------+----------+----------------+-------------|
| IDE interface 2 | CN12 | VRM connector | VRM |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|-------------------------------------+-------+--------------|
| » | Keyboard clock speed select | CN15 | Pins 1 & 2 |
| | 8MHz | | closed |
|---+---------------------------------+-------+--------------|
| | Keyboard clock speed select | CN15 | Pins 2 & 3 |
| | 16MHz | | closed |
|---+---------------------------------+-------+--------------|
| » | CMOS memory normal operation | JP1 | Open |
|---+---------------------------------+-------+--------------|
| | CMOS memory clear | JP1 | Closed |
|---+---------------------------------+-------+--------------|
| » | PS/2 mouse enabled | JP3 | Closed |
|---+---------------------------------+-------+--------------|
| | PS/2 mouse disabled | JP3 | Open |
|---+---------------------------------+-------+--------------|
| » | On board I/O enabled | JP6 | Pins 1 & 2 |
| | | | closed |
|---+---------------------------------+-------+--------------|
| | On board I/O disabled | JP6 | Pins 2 & 3 |
| | | | closed |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | JP9 | Unidentified |
| | alter | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 8MB | (2) 1M x 36 | None |
|------------------+--------------------+--------------------|
| 16MB | (2) 2M x 36 | None |
|------------------+--------------------+--------------------|
| 16MB | (2) 1M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 24MB | (2) 1M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 32MB | (2) 4M x 36 | None |
|------------------+--------------------+--------------------|
| 32MB | (2) 2M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 40MB | (2) 1M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 48MB | (2) 2M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 64MB | (2) 8M x 36 | None |
|------------------+--------------------+--------------------|
| 64MB | (2) 4M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 72MB | (2) 1M x 36 | (2) 8M x 36 |
|------------------+--------------------+--------------------|
| 80MB | (2) 2M x 36 | (2) 8M x 36 |
|------------------+--------------------+--------------------|
| 96MB | (2) 4M x 36 | (2) 8M x 36 |
|------------------+--------------------+--------------------|
| 128MB | (2) 8M x 36 | (2) 8M x 36 |
|------------------+--------------------+--------------------|
| 128MB | (2) 16M x 36 | None |
|------------------+--------------------+--------------------|
| 136MB | (2) 1M x 36 | (2) 16M x 36 |
|------------------+--------------------+--------------------|
| 144MB | (2) 2M x 36 | (2) 16M x 36 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION (CON’T) |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 160MB | (2) 4M x 36 | (2) 16M x 36 |
|------------------+--------------------+--------------------|
| 192MB | (2) 8M x 36 | (2) 16M x 36 |
|------------------+--------------------+--------------------|
| 256MB | (2) 16M x 36 | (2) 16M x 36 |
|------------------+--------------------+--------------------|
| 256MB | (2) 32M x 36 | None |
|------------------+--------------------+--------------------|
| 264MB | (2) 1M x 36 | (2) 32M x 36 |
|------------------+--------------------+--------------------|
| 272MB | (2) 2M x 36 | (2) 32M x 36 |
|------------------+--------------------+--------------------|
| 288MB | (2) 4M x 36 | (2) 32M x 36 |
|------------------+--------------------+--------------------|
| 320MB | (2) 8M x 36 | (2) 32M x 36 |
|------------------+--------------------+--------------------|
| 384MB | (2) 16M x 36 | (2) 32M x 36 |
|------------------+--------------------+--------------------|
| 512MB | (2) 32M x 36 | (2) 32M x 36 |
|------------------------------------------------------------|
| Note: Board accepts EDO memory. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Note: 256KB/512KB cache is located on the Pentium Pro CPU. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED SELECTION |
|------------------------------------------------------------|
| Speed | CN13 | CN14 | JP2 |
|--------+--------------+--------------+---------------------|
| 150MHz | 2 & 4, 3 & 5 | 2 & 4, 3 & 5 | 3 & 4, 5 & 6, 7 & 8 |
|--------+--------------+--------------+---------------------|
| 166MHz | 1 & 3, 4 & 6 | 1 & 3, 4 & 6 | 3 & 4, 5 & 6, 7 & 8 |
|--------+--------------+--------------+---------------------|
| 180MHz | 2 & 4, 3 & 5 | 2 & 4, 3 & 5 | 1 & 2, 5 & 6, 7 & 8 |
|--------+--------------+--------------+---------------------|
| 200MHz | 1 & 3, 4 & 6 | 1 & 3, 4 & 6 | 1 & 2, 5 & 6, 7 & 8 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU TYPE SELECTION |
|------------------------------------------------------------|
| Type | JP7 |
|-------------------------------+----------------------------|
| Standard | Open |
|-------------------------------+----------------------------|
| Overdrive | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU VOLTAGE SELECTION |
|------------------------------------------------------------|
| Voltage | JP8 |
|-------------------+----------------------------------------|
| » | Auto detect | Open |
|---+---------------+----------------------------------------|
| | 2.1v | Pins 1 & 2 closed |
|---+---------------+----------------------------------------|
| | 2.2v | Pins 3 & 4 closed |
|---+---------------+----------------------------------------|
| | 2.3v | Pins 1 & 2, 3 & 4 closed |
|---+---------------+----------------------------------------|
| | 2.4v | Pins 5 & 6 closed |
|---+---------------+----------------------------------------|
| | 2.5v | Pins 1 & 2, 5 & 6 closed |
|---+---------------+----------------------------------------|
| | 2.6v | Pins 3 & 4, 5 & 6 closed |
|---+---------------+----------------------------------------|
| | 2.7v | Pins 1 & 2, 3 & 4, 5 & 6 closed |
|---+---------------+----------------------------------------|
| | 2.8v | Pins 7 & 8 closed |
|---+---------------+----------------------------------------|
| | 2.9v | Pins 1 & 2, 7 & 8 closed |
|---+---------------+----------------------------------------|
| | 3.0v | Pins 3 & 4, 7 & 8 closed |
|---+---------------+----------------------------------------|
| | 3.1v | Pins 1 & 2, 3 & 4, 7 & 8 closed |
|---+---------------+----------------------------------------|
| | 3.2v | Pins 5 & 6, 7 & 8 closed |
|---+---------------+----------------------------------------|
| | 3.3v | Pins 1 & 2, 5 & 6, 7 & 8 closed |
|---+---------------+----------------------------------------|
| | 3.4v | Pins 3 & 4, 5 & 6, 7 & 8 closed |
|---+---------------+----------------------------------------|
| | 3.5v | Pins 1 & 2, 3 & 4, 5 & 6, 7 & 8 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DMA CHANNEL SELECTION |
|------------------------------------------------------------|
| Channel | JP4 | JP5 |
|------------------+--------------------+--------------------|
| | 1 | Pins 2 & 3 closed | Pins 2 & 3 closed |
|----+-------------+--------------------+--------------------|
| » | 3 | Pins 1 & 2 closed | Pins 1 & 2 closed |
+------------------------------------------------------------+
