# ALPHA MICROSYSTEMS
AM-319 (20)
Processor None
Processor Speed None
Chip Set Unidentified
Video Chip Set None
Maximum Onboard None
Memory
Maximum Video None
Memory
Cache None
BIOS Unidentified
Dimensions 330mm x 218mm
I/O Options Ethernet 10BaseT connector, AUI connector,
floppy drive interface, UPS connector, SIO
expansion connectors (2), X-bus connectors
(2), PIO connectors (4), serial port, X-bus
connectors (2)
NPU Options None

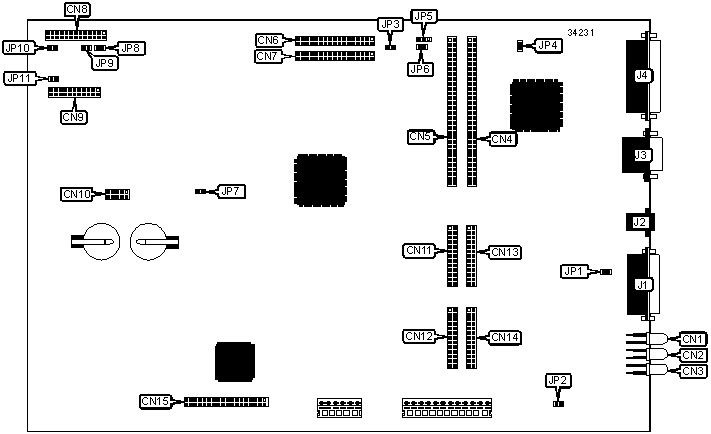

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-------------------+----------+------------------+----------|
| Activity LED | CN1 | PIO connector | CN11 |
|-------------------+----------+------------------+----------|
| Activity LED | CN2 | PIO connector | CN12 |
|-------------------+----------+------------------+----------|
| Activity LED | CN3 | PIO connector | CN13 |
|-------------------+----------+------------------+----------|
| SIO expansion | CN4 | PIO connector | CN14 |
| connector | | | |
|-------------------+----------+------------------+----------|
| SIO expansion | CN5 | Floppy drive | CN15 |
| connector | | interface | |
|-------------------+----------+------------------+----------|
| X-bus connector | CN6 | AUI connector | J1 |
|-------------------+----------+------------------+----------|
| X-bus connector | CN7 | Ethernet 10BaseT | J2 |
| | | connector | |
|-------------------+----------+------------------+----------|
| 990 display panel | CN8 | UPS connector | J3 |
|-------------------+----------+------------------+----------|
| Eagle display | CN9 | Serial port (4 | J4 |
| panel | | RJ-45 ports) | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|---------------------------------------+-------+------------|
| » | Factory configured - do not alter | CN10 | Open |
|---+-----------------------------------+-------+------------|
| » | Factory configured - do not alter | JP1 | Open |
|---+-----------------------------------+-------+------------|
| » | Factory configured - do not alter | JP2 | Closed |
|---+-----------------------------------+-------+------------|
| » | Factory configured - do not alter | JP3 | Closed |
|---+-----------------------------------+-------+------------|
| » | Factory configured - do not alter | JP4 | Closed |
|---+-----------------------------------+-------+------------|
| » | Factory configured - do not alter | JP5 | Pins 2 & 3 |
| | | | closed |
|---+-----------------------------------+-------+------------|
| » | Factory configured - do not alter | JP6 | Closed |
|---+-----------------------------------+-------+------------|
| » | Remote reset disabled | JP7 | Open |
|---+-----------------------------------+-------+------------|
| | Remote reset enabled | JP7 | Closed |
|---+-----------------------------------+-------+------------|
| » | Factory configured - do not alter | JP8 | Open |
|---+-----------------------------------+-------+------------|
| » | Factory configured - do not alter | JP9 | Open |
|---+-----------------------------------+-------+------------|
| » | Factory configured - do not alter | JP10 | Open |
|---+-----------------------------------+-------+------------|
| » | Factory configured - do not alter | JP11 | Open |
+------------------------------------------------------------+
