# ADVANCED INTEGRATION RESEARCH, INC.
P6NDP (AT VERSION)
Processor Pentium Pro
Processor Speed 150/180/200MHz
Chip Set Intel
Video Chip Set None
Maximum Onboard 1GB (EDO supported)
Memory
Maximum Video None
Memory
Cache 256/512KB (located on Pentium Pro CPU)
BIOS AMI
Dimensions 355mm x 304mm
I/O Options 32-bit PCI slots (4), floppy drive interface,
green PC connector, Ultra Wide SCSI
interface, Fast SCSI interface, PS/2 mouse
interface, serial ports (2), IR connector,
VRM connector, ATX power connector, RAID slot
NPU Options None

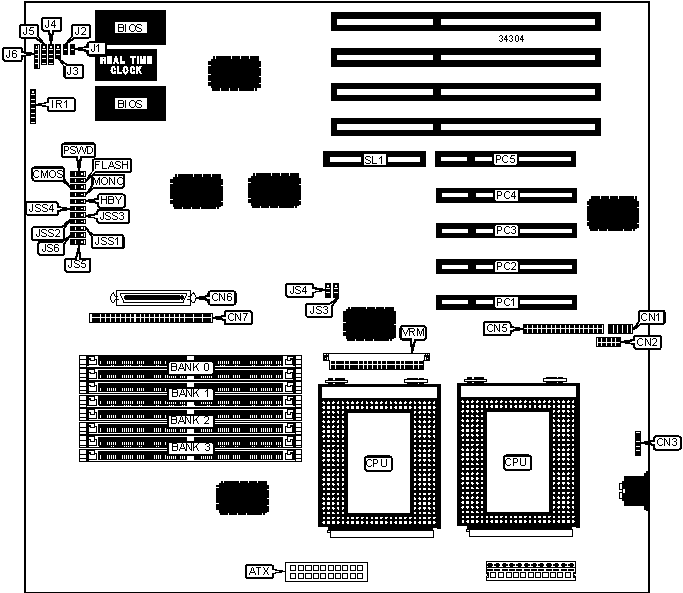

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-------------------+----------+------------------+----------|
| ATX power | ATX | Green PC | J2 |
| connector | | connector | |
|-------------------+----------+------------------+----------|
| Serial port 2 | CN1 | Turbo LED | J3 |
|-------------------+----------+------------------+----------|
| Serial port 1 | CN2 | SCSI interface | J4 |
| | | LED | |
|-------------------+----------+------------------+----------|
| PS/2 mouse | CN3 | Speaker | J5 |
| interface | | | |
|-------------------+----------+------------------+----------|
| Floppy drive | CN5 | Power LED & | J6 |
| interface | | keylock | |
|-------------------+----------+------------------+----------|
| Ultra Wide SCSI | CN6 | 32-bit PCI slots | PC1 - |
| interface | | | PC5 |
|-------------------+----------+------------------+----------|
| Fast SCSI | CN7 | RAID slot | SL1 |
| interface | | | |
|-------------------+----------+------------------+----------|
| IR connector | IR1 | VRM connector | VRM |
|-------------------+----------+------------------+----------|
| Reset switch | J1 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|------------------------------------+-------+---------------|
| » | CMOS memory normal operation | CMOS | Pins 1 & 2 |
| | | | closed |
|---+--------------------------------+-------+---------------|
| | CMOS memory clear | CMOS | Pins 2 & 3 |
| | | | closed |
|---+--------------------------------+-------+---------------|
| » | Flash BIOS voltage select 5v | FLASH | Pins 2 & 3 |
| | | | closed |
|---+--------------------------------+-------+---------------|
| | Flash BIOS voltage select 12v | FLASH | Pins 1 & 2 |
| | | | closed |
|---+--------------------------------+-------+---------------|
| » | SCSI high byte select always | HBY | Pins 1 & 2 |
| | | | closed |
|---+--------------------------------+-------+---------------|
| | SCSI high byte select auto | HBY | Pins 2 & 3 |
| | | | closed |
|---+--------------------------------+-------+---------------|
| » | Monitor type select color | MONO | Pins 1 & 2 |
| | | | closed |
|---+--------------------------------+-------+---------------|
| | Monitor type select monochrome | MONO | Pins 2 & 3 |
| | | | closed |
|---+--------------------------------+-------+---------------|
| » | Password normal operation | PSWD | Pins 1 & 2 |
| | | | closed |
|---+--------------------------------+-------+---------------|
| | Password clear | PSWD | Pins 2 & 3 |
| | | | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 | Bank 3 |
|-------+-------------+------------+------------+------------|
| 8MB | (2) 1M x 36 | None | None | None |
|-------+-------------+------------+------------+------------|
| 16MB | (2) 1M x 36 | (2) 1M x | None | None |
| | | 36 | | |
|-------+-------------+------------+------------+------------|
| 16MB | (2) 2M x 36 | None | None | None |
|-------+-------------+------------+------------+------------|
| 24MB | (2) 1M x 36 | (2) 1M x | (2) 1M x | None |
| | | 36 | 36 | |
|-------+-------------+------------+------------+------------|
| 32MB | (2) 1M x 36 | (2) 1M x | (2) 1M x | (2) 1M x |
| | | 36 | 36 | 36 |
|-------+-------------+------------+------------+------------|
| 32MB | (2) 2M x 36 | (2) 2M x | None | None |
| | | 36 | | |
|-------+-------------+------------+------------+------------|
| 32MB | (2) 4M x 36 | None | None | None |
|-------+-------------+------------+------------+------------|
| 48MB | (2) 2M x 36 | (2) 2M x | (2) 2M x | None |
| | | 36 | 36 | |
|-------+-------------+------------+------------+------------|
| 64MB | (2) 2M x 36 | (2) 2M x | (2) 2M x | (2) 2M x |
| | | 36 | 36 | 36 |
|-------+-------------+------------+------------+------------|
| 64MB | (2) 4M x 36 | (2) 4M x | None | None |
| | | 36 | | |
|-------+-------------+------------+------------+------------|
| 64MB | (2) 8M x 36 | None | None | None |
|-------+-------------+------------+------------+------------|
| 96MB | (2) 4M x 36 | (2) 4M x | (2) 4M x | None |
| | | 36 | 36 | |
|-------+-------------+------------+------------+------------|
| 128MB | (2) 4M x 36 | (2) 4M x | (2) 4M x | (2) 4M x |
| | | 36 | 36 | 36 |
|-------+-------------+------------+------------+------------|
| 128MB | (2) 8M x 36 | (2) 8M x | None | None |
| | | 36 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION (CON'T) |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 | Bank 3 |
|-------+-------------+------------+------------+------------|
| 128MB | (2) 16M x | None | None | None |
| | 36 | | | |
|-------+-------------+------------+------------+------------|
| 192MB | (2) 8M x 36 | (2) 8M x | (2) 8M x | None |
| | | 36 | 36 | |
|-------+-------------+------------+------------+------------|
| 256MB | (2) 8M x 36 | (2) 8M x | (2) 8M x | (2) 8M x |
| | | 36 | 36 | 36 |
|-------+-------------+------------+------------+------------|
| 256MB | (2) 16M x | (2) 16M x | None | None |
| | 36 | 36 | | |
|-------+-------------+------------+------------+------------|
| 256MB | (2) 32M x | None | None | None |
| | 36 | | | |
|-------+-------------+------------+------------+------------|
| 384MB | (2) 16M x | (2) 16M x | (2) 16M x | None |
| | 36 | 36 | 36 | |
|-------+-------------+------------+------------+------------|
| 512MB | (2) 16M x | (2) 16M x | (2) 16M x | (2) 16M x |
| | 36 | 36 | 36 | 36 |
|-------+-------------+------------+------------+------------|
| 512MB | (2) 32M x | (2) 32M x | None | None |
| | 36 | 36 | | |
|-------+-------------+------------+------------+------------|
| 768MB | (2) 32M x | (2) 32M x | (2) 32M x | None |
| | 36 | 36 | 36 | |
|-------+-------------+------------+------------+------------|
| 1GB | (2) 32M x | (2) 32M x | (2) 32M x | (2) 32M x |
| | 36 | 36 | 36 | 36 |
|------------------------------------------------------------|
| Note: Board accepts EDO memory. Board also accepts x 32 |
| SIMMs. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Note: 256KB/512KB cache is located on the Pentium Pro CPU. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED SELECTION |
|------------------------------------------------------------|
| CPU | Clock | Multiplier | JS3 | JS4 | JS5 | JS6 |
| speed | speed | | | | | |
|--------+--------+------------+-------+-------+------+------|
| 150MHz | 60MHz | 2.5x | 1 & 2 | 1 & 2 | 1 & | 1 & |
| | | | | | 2 | 2 |
|--------+--------+------------+-------+-------+------+------|
| 180MHz | 60MHz | 3x | 1 & 2 | 1 & 2 | 1 & | 1 & |
| | | | | | 2 | 2 |
|--------+--------+------------+-------+-------+------+------|
| 200MHz | 66MHz | 3x | 2 & 3 | 2 & 3 | 2 & | 2 & |
| | | | | | 3 | 3 |
|------------------------------------------------------------|
| Note: Pins designated should be in the closed position. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED SELECTION (CON'T) |
|------------------------------------------------------------|
| CPU | Clock | Multiplier | JSS1 | JSS2 | JSS3 | JSS4 |
| speed | speed | | | | | |
|--------+--------+------------+-------+-------+------+------|
| 150MHz | 60MHz | 2.5x | 1 & 2 | 1 & 2 | 1 & | 2 & |
| | | | | | 2 | 3 |
|--------+--------+------------+-------+-------+------+------|
| 180MHz | 60MHz | 3x | 1 & 2 | 1 & 2 | 2 & | 1 & |
| | | | | | 3 | 2 |
|--------+--------+------------+-------+-------+------+------|
| 200MHz | 66MHz | 3x | 1 & 2 | 1 & 2 | 2 & | 1 & |
| | | | | | 3 | 2 |
|------------------------------------------------------------|
| Note: Pins designated should be in the closed position. |
+------------------------------------------------------------+
