# A-TREND TECHNOLOGY CORPORATION
ATC-6100 R1
Processor Pentium II
Processor Speed 233/266/300/333MHz
Chip Set Intel
Video Chip Set None
Maximum Onboard 768MB (EDO supported)
Memory
Maximum Video None
Memory
Cache 256/512KB (located on Pentium II CPU)
BIOS Award
Dimensions 305mm x 245mm
I/O Options 32-bit PCI slots (4), floppy drive interface,
green PC connector, IDE interfaces (2),
parallel port, PS/2 mouse port, serial ports
(2), IR connector, USB connector, CPU Slot 1
NPU Options None

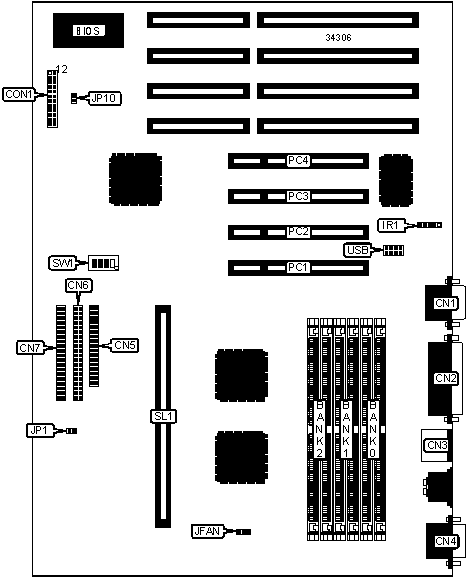

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-----------------+-------------+---------------+------------|
| Serial port 2 | CN1 | IDE interface | CON1/pins |
| | | LED | 10 & 11 |
|-----------------+-------------+---------------+------------|
| Parallel port | CN2 | Speaker | CON1/pins |
| | | | 12 - 15 |
|-----------------+-------------+---------------+------------|
| PS/2 mouse port | CN3 | Power LED | CON1/pins |
| | | | 17 - 20 |
|-----------------+-------------+---------------+------------|
| Serial port 1 | CN4 | IR connector | IR1 |
|-----------------+-------------+---------------+------------|
| Floppy drive | CN5 | Chassis fan | JFAN |
| interface | | power | |
|-----------------+-------------+---------------+------------|
| IDE interface 2 | CN6 | Soft off | JP1 |
| | | power supply | |
|-----------------+-------------+---------------+------------|
| IDE interface 1 | CN7 | 32-bit PCI | PC1 – PC4 |
| | | slots | |
|-----------------+-------------+---------------+------------|
| Reset switch | CON1/pins 1 | CPU Slot 1 | SL1 |
| | & 2 | | |
|-----------------+-------------+---------------+------------|
| Green PC | CON1/pins 4 | USB connector | USB |
| connector | & 5 | | |
|-----------------+-------------+---------------+------------|
| Turbo LED | CON1/pins 7 | | |
| | & 8 | | |
|------------------------------------------------------------|
| Note: The location of JFAN may not be exact. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|-------------------------------------+---------+------------|
| » | CMOS memory normal operation | JP10 | Open |
|---+---------------------------------+---------+------------|
| | CMOS memory clear | JP10 | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 |
|------------+---------------+---------------+---------------|
| 8MB | (2) 1M x 36 | None | None |
|------------+---------------+---------------+---------------|
| 16MB | (2) 1M x 36 | (2) 1M x 36 | None |
|------------+---------------+---------------+---------------|
| 16MB | (2) 2M x 36 | None | None |
|------------+---------------+---------------+---------------|
| 24MB | (2) 1M x 36 | (2) 1M x 36 | (2) 1M x 36 |
|------------+---------------+---------------+---------------|
| 24MB | (2) 1M x 36 | (2) 2M x 36 | None |
|------------+---------------+---------------+---------------|
| 32MB | (2) 2M x 36 | (2) 1M x 36 | (2) 1M x 36 |
|------------+---------------+---------------+---------------|
| 32MB | (2) 2M x 36 | (2) 2M x 36 | None |
|------------+---------------+---------------+---------------|
| 32MB | (2) 4M x 36 | None | None |
|------------+---------------+---------------+---------------|
| 40MB | (2) 1M x 36 | (2) 2M x 36 | (2) 2M x 36 |
|------------+---------------+---------------+---------------|
| 40MB | (2) 4M x 36 | (2) 1M x 36 | None |
|------------+---------------+---------------+---------------|
| 48MB | (2) 2M x 36 | (2) 2M x 36 | (2) 2M x 36 |
|------------+---------------+---------------+---------------|
| 48MB | (2) 4M x 36 | (2) 1M x 36 | (2) 1M x 36 |
|------------+---------------+---------------+---------------|
| 48MB | (2) 4M x 36 | (2) 2M x 36 | None |
|------------+---------------+---------------+---------------|
| 64MB | (2) 4M x 36 | (2) 2M x 36 | (2) 2M x 36 |
|------------+---------------+---------------+---------------|
| 64MB | (2) 4M x 36 | (2) 4M x 36 | None |
|------------+---------------+---------------+---------------|
| 64MB | (2) 8M x 36 | None | None |
|------------+---------------+---------------+---------------|
| 72MB | (2) 1M x 36 | (2) 4M x 36 | (2) 4M x 36 |
|------------+---------------+---------------+---------------|
| 72MB | (2) 8M x 36 | (2) 1M x 36 | None |
|------------+---------------+---------------+---------------|
| 80MB | (2) 8M x 36 | (2) 1M x 36 | (2) 1M x 36 |
|------------+---------------+---------------+---------------|
| 80MB | (2) 8M x 36 | (2) 2M x 36 | None |
|------------+---------------+---------------+---------------|
| 96MB | (2) 4M x 36 | (2) 4M x 36 | (2) 4M x 36 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION (CON’T) |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 |
|------------+---------------+---------------+---------------|
| 96MB | (2) 8M x 36 | (2) 2M x 36 | (2) 2M x 36 |
|------------+---------------+---------------+---------------|
| 96MB | (2) 8M x 36 | (2) 4M x 36 | None |
|------------+---------------+---------------+---------------|
| 128MB | (2) 8M x 36 | (2) 4M x 36 | (2) 4M x 36 |
|------------+---------------+---------------+---------------|
| 128MB | (2) 8M x 36 | (2) 8M x 36 | None |
|------------+---------------+---------------+---------------|
| 128MB | (2) 16M x 36 | None | None |
|------------+---------------+---------------+---------------|
| 136MB | (2) 16M x 36 | (2) 1M x 36 | None |
|------------+---------------+---------------+---------------|
| 144MB | (2) 16M x 36 | (2) 1M x 36 | (2) 1M x 36 |
|------------+---------------+---------------+---------------|
| 144MB | (2) 16M x 36 | (2) 2M x 36 | None |
|------------+---------------+---------------+---------------|
| 160MB | (2) 16M x 36 | (2) 2M x 36 | (2) 2M x 36 |
|------------+---------------+---------------+---------------|
| 160MB | (2) 16M x 36 | (2) 4M x 36 | None |
|------------+---------------+---------------+---------------|
| 192MB | (2) 8M x 36 | (2) 8M x 36 | (2) 8M x 36 |
|------------+---------------+---------------+---------------|
| 192MB | (2) 16M x 36 | (2) 4M x 36 | (2) 4M x 36 |
|------------+---------------+---------------+---------------|
| 192MB | (2) 16M x 36 | (2) 8M x 36 | None |
|------------+---------------+---------------+---------------|
| 256MB | (2) 32M x 36 | None | None |
|------------+---------------+---------------+---------------|
| 256MB | (2) 16M x 36 | (2) 8M x 36 | (2) 8M x 36 |
|------------+---------------+---------------+---------------|
| 256MB | (2) 16M x 36 | (2) 16M x 36 | None |
|------------+---------------+---------------+---------------|
| 264MB | (2) 32M x 36 | (2) 1M x 36 | None |
|------------+---------------+---------------+---------------|
| 272MB | (2) 32M x 36 | (2) 1M x 36 | (2) 1M x 36 |
|------------+---------------+---------------+---------------|
| 272MB | (2) 32M x 36 | (2) 2M x 36 | None |
|------------+---------------+---------------+---------------|
| 288MB | (2) 32M x 36 | (2) 2M x 36 | (2) 2M x 36 |
|------------+---------------+---------------+---------------|
| 288MB | (2) 32M x 36 | (2) 4M x 36 | None |
|------------+---------------+---------------+---------------|
| 320MB | (2) 32M x 36 | (2) 4M x 36 | (2) 4M x 36 |
|------------+---------------+---------------+---------------|
| 320MB | (2) 32M x 36 | (2) 8M x 36 | None |
|------------+---------------+---------------+---------------|
| 384MB | (2) 32M x 36 | (2) 8M x 36 | (2) 8M x 36 |
|------------+---------------+---------------+---------------|
| 384MB | (2) 32M x 36 | (2) 16M x 36 | None |
|------------+---------------+---------------+---------------|
| 384MB | (2) 16M x 36 | (2) 16M x 36 | (2) 16M x 36 |
|------------+---------------+---------------+---------------|
| 512MB | (2) 32M x 36 | (2) 16M x 36 | (2) 16M x 36 |
|------------+---------------+---------------+---------------|
| 512MB | (2) 32M x 36 | (2) 32M x 36 | None |
|------------+---------------+---------------+---------------|
| 768MB | (2) 32M x 36 | (2) 32M x 36 | (2) 32M x 36 |
|------------------------------------------------------------|
| Note: Board accepts EDO memory. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Note: 256KB/512KB cache is located on the Pentium II CPU. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED SELECTION |
|------------------------------------------------------------|
|CPU speed|Clock speed|Multiplier|SW1/1 |SW1/2 |SW1/3 |SW1/4 |
|---------+-----------+----------+------+------+------+------|
| 233Mhz | 66MHz | 3.5x | Off | Off | Off | Off |
|---------+-----------+----------+------+------+------+------|
| 266MHz | 66MHz | 4x | On | On | On | Off |
|---------+-----------+----------+------+------+------+------|
| 300MHz | 66MHz | 4.5x | Off | On | On | Off |
|---------+-----------+----------+------+------+------+------|
| 333MHz | 66MHz | 5x | On | Off | On | Off |
+------------------------------------------------------------+
