# AMERICAN PREDATOR CORPORATION
HUNTER MIDGET
Processor CX 6X86/AM K5/Pentium
Processor Speed 75/90/100/120/133/150/166/180/200MHz
Chip Set Intel
Video Chip Set None
Maximum Onboard 128MB
Memory
Maximum Video None
Memory
Cache 256KB
BIOS AMI
Dimensions 254mm x 218mm
I/O Options 32-bit PCI slots (4), IDE interfaces (2),
PS/2 mouse interface
NPU Options None

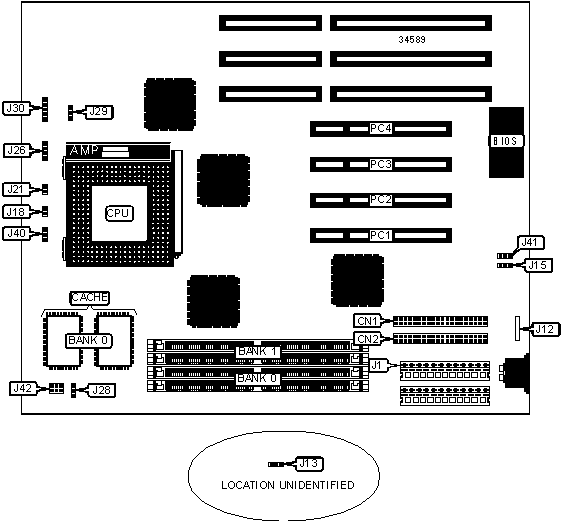

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-------------------+----------+------------------+----------|
| IDE interface 1 | CN1 | IDE interface | J21 |
| | | LED | |
|-------------------+----------+------------------+----------|
| IDE interface 2 | CN2 | Speaker | J26 |
|-------------------+----------+------------------+----------|
| 3.3v power | J1 | Power LED & | J30 |
| | | keylock | |
|-------------------+----------+------------------+----------|
| PS/2 mouse | J12 | CPU fan power | J40 |
| interface | | | |
|-------------------+----------+------------------+----------|
| Reset switch | J18 | 32-bit PCI slots | PC1 – |
| | | | PC4 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|------------------------------------+-------+---------------|
| » | CMOS memory normal operation | J13 | Pins 1 & 2 |
| | | | closed |
|---+--------------------------------+-------+---------------|
| | CMOS memory clear | J13 | Pins 2 & 3 |
| | | | closed |
|---+--------------------------------+-------+---------------|
| » | Monitor type select color | J15 | Pins 2 & 3 |
| | | | closed |
|---+--------------------------------+-------+---------------|
| | Monitor type select monochrome | J15 | Pins 1 & 2 |
| | | | closed |
|---+--------------------------------+-------+---------------|
| » | PS/2 mouse IRQ enabled | J41 | Pins 2 & 3 |
| | | | closed |
|---+--------------------------------+-------+---------------|
| | PS/2 mouse IRQ disabled | J41 | Pins 1 & 2 |
| | | | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SIMM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 2MB | (2) 256K x 36 | None |
|------------------+--------------------+--------------------|
| 4MB | (2) 512K x 36 | None |
|------------------+--------------------+--------------------|
| 4MB | (2) 256K x 36 | (2) 256K x 36 |
|------------------+--------------------+--------------------|
| 6MB | (2) 512K x 36 | (2) 256K x 36 |
|------------------+--------------------+--------------------|
| 8MB | (2) 1M x 36 | None |
|------------------+--------------------+--------------------|
| 8MB | (2) 512K x 36 | (2) 512K x 36 |
|------------------+--------------------+--------------------|
| 10MB | (2) 1M x 36 | (2) 256K x 36 |
|------------------+--------------------+--------------------|
| 12MB | (2) 512K x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 16MB | (2) 2M x 36 | None |
|------------------+--------------------+--------------------|
| 16MB | (2) 1M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 18MB | (2) 2M x 36 | (2) 256K x 36 |
|------------------+--------------------+--------------------|
| 20MB | (2) 512K x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 24MB | (2) 2M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 32MB | (2) 4M x 36 | None |
|------------------+--------------------+--------------------|
| 32MB | (2) 2M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 34MB | (2) 4M x 36 | (2) 256K x 36 |
|------------------+--------------------+--------------------|
| 36MB | (2) 512K x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 40MB | (2) 4M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 48MB | (2) 2M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 64MB | (2) 8M x 36 | None |
|------------------+--------------------+--------------------|
| 64MB | (2) 4M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 66MB | (2) 8M x 36 | (2) 256K x 36 |
|------------------+--------------------+--------------------|
| 68MB | (2) 512K x 36 | (2) 8M x 36 |
|------------------+--------------------+--------------------|
| 72MB | (2) 8M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 80MB | (2) 2M x 36 | (2) 8M x 36 |
|------------------+--------------------+--------------------|
| 96MB | (2) 8M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 128MB | (2) 8M x 36 | (2) 8M x 36 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 |
|----------------------------+-------------------------------|
| 256KB | (2) 32K x 32 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED SELECTION |
|------------------------------------------------------------|
| CPU speed | Clock | Multiplier | J28 | J29 | J42 |
| | speed | | | | |
|------------+----------+------------+-------+-------+-------|
| 75MHz | 50MHz | 1.5x | 1 & 2 | 1 & 2 | 1 & 2 |
|------------+----------+------------+-------+-------+-------|
| 90MHz | 60MHz | 1.5x | 1 & 2 | 1 & 2 | 5 & 6 |
|------------+----------+------------+-------+-------+-------|
| 100MHz | 66MHz | 1.5x | 1 & 2 | 1 & 2 | 3 & 4 |
|------------+----------+------------+-------+-------+-------|
| 120MHz | 60MHz | 2x | 2 & 3 | 1 & 2 | 5 & 6 |
|------------+----------+------------+-------+-------+-------|
| 133MHz | 66MHz | 2x | 2 & 3 | 1 & 2 | 3 & 4 |
|------------+----------+------------+-------+-------+-------|
| 150MHz | 60MHz | 2.5x | 2 & 3 | 2 & 3 | 5 & 6 |
|------------+----------+------------+-------+-------+-------|
| 166MHz | 66MHz | 2.5x | 2 & 3 | 2 & 3 | 3 & 4 |
|------------+----------+------------+-------+-------+-------|
| 180MHz | 60MHz | 3x | 1 & 2 | 2 & 3 | 5 & 6 |
|------------+----------+------------+-------+-------+-------|
| 200MHz | 66MHz | 3x | 1 & 2 | 2 & 3 | 3 & 4 |
|------------------------------------------------------------|
| Note: Pins designated should be in the closed position. |
+------------------------------------------------------------+
