       # AXIOM TECHNOLOGY, INC.

          SBC8251

          Processor        Cyrix/Pentium
          Processor Speed  75/90/100/120/133/150/166/180/200MHz
          Chip Set         Intel
          Video Chip Set   Chips and Technology
          Maximum Onboard  64MB
          Memory
          Maximum Video    2MB
          Memory
          Cache            256/512KB
          BIOS             Unidentified
          Dimensions       185mm x 122mm
          I/O Options      Floppy drive interface, IDE interface,
                           parallel port, PS/2 mouse port, PS/2 mouse
                           interface, serial ports (2), VGA port, PC/104
                           connectors (2)
          NPU Options      None

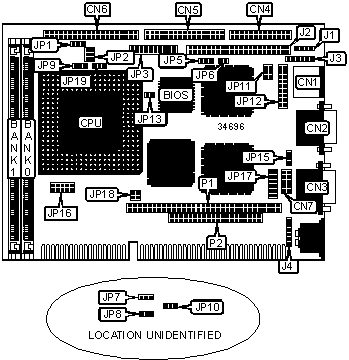

   IMG IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          | Purpose         | Location | Purpose         |  Location   |
          |-----------------+----------+-----------------+-------------|
          | PS/2 mouse port |   CN1    | Internal buzzer |  JP12/pins  |
          |                 |          |                 |    1- 3     |
          |-----------------+----------+-----------------+-------------|
          | VGA port        |   CN2    | Power LED &     | JP12/pins 2 |
          |                 |          | keylock         |    - 10     |
          |-----------------+----------+-----------------+-------------|
          | Serial port 1   |   CN3    | External        | JP12/pins 4 |
          |                 |          | speaker         |     - 7     |
          |-----------------+----------+-----------------+-------------|
          | Parallel port   |   CN4    | Green PC        | JP12/pins 5 |
          |                 |          | connector       |     & 9     |
          |-----------------+----------+-----------------+-------------|
          | Floppy drive    |   CN5    | Reset switch    |  JP12/pins  |
          | interface       |          |                 |   11 & 12   |
          |-----------------+----------+-----------------+-------------|
          | IDE interface   |   CN6    | IDE interface   |  JP12/pins  |
          |                 |          | LED             |   17 & 18   |
          |-----------------+----------+-----------------+-------------|
          | Serial port 2   |   CN7    | Watchdog timer  | JP3/pins 19 |
          |                 |          |                 |    & 20     |
          |-----------------+----------+-----------------+-------------|
          | Power connector |    J1    | PC/104          |     P1      |
          |                 |          | connector       |             |
          |-----------------+----------+-----------------+-------------|
          | Power connector |    J3    | PC/104          |     P2      |
          |                 |          | connector       |             |
          |-----------------+----------+-----------------+-------------|
          | Keyboard, PS/2  |    J4    |                 |             |
          | mouse           |          |                 |             |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 USER CONFIGURABLE SETTINGS                 |
          |------------------------------------------------------------|
          |              Function               | Label |   Position   |
          |-------------------------------------+-------+--------------|
          | » | Factory configured - do not     |  J2   | Unidentified |
          |   | alter                           |       |              |
          |---+---------------------------------+-------+--------------|
          | » | SHFCLK normal operation         |  JP5  |  Pins 2 & 3  |
          |   |                                 |       |    closed    |
          |---+---------------------------------+-------+--------------|
          |   | SHFCLK inverted                 |  JP5  |  Pins 1 & 2  |
          |   |                                 |       |    closed    |
          |---+---------------------------------+-------+--------------|
          |   | Flash BIOS write protect        |  JP7  |  Pins 1 & 2  |
          |   | disabled                        |       |    closed    |
          |---+---------------------------------+-------+--------------|
          |   | Flash BIOS write protect        |  JP7  |  Pins 2 & 3  |
          |   | enabled                         |       |    closed    |
          |---+---------------------------------+-------+--------------|
          | » | CMOS memory normal operation    |  JP8  |  Pins 2 & 3  |
          |   |                                 |       |    closed    |
          |---+---------------------------------+-------+--------------|
          |   | CMOS memory clear               |  JP8  |  Pins 1 & 2  |
          |   |                                 |       |    closed    |
          |---+---------------------------------+-------+--------------|
          |   | Cache type select write back    | JP10  |  Pins 2 & 3  |
          |   |                                 |       |    closed    |
          |---+---------------------------------+-------+--------------|
          |   | Cache type select write through | JP10  |  Pins 1 & 2  |
          |   |                                 |       |    closed    |
          |---+---------------------------------+-------+--------------|
          |   | System clock = PCI clock/4      | JP13  |     Open     |
          |---+---------------------------------+-------+--------------|
          |   | System clock = PCI clock/3      | JP13  |    Closed    |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     SIMM CONFIGURATION                     |
          |------------------------------------------------------------|
          |            Size            |            Bank 0             |
          |----------------------------+-------------------------------|
          |            8MB             |          (2) 1M x 36          |
          |----------------------------+-------------------------------|
          |            16MB            |          (2) 2M x 36          |
          |----------------------------+-------------------------------|
          |            32MB            |          (2) 4M x 36          |
          |----------------------------+-------------------------------|
          |            64MB            |          (2) 8M x 36          |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |              SIMM REFRESH RATE CONFIGURATION               |
          |------------------------------------------------------------|
          |          Setting           |        JP16/pins 1 & 2        |
          |----------------------------+-------------------------------|
          |           60MHz            |            Closed             |
          |----------------------------+-------------------------------|
          |           66MHz            |             Open              |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                    CACHE CONFIGURATION                     |
          |------------------------------------------------------------|
          | Note: The location of the cache is unidentified.           |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 CACHE JUMPER CONFIGURATION                 |
          |------------------------------------------------------------|
          |            Size            |             JP16              |
          |----------------------------+-------------------------------|
          |           256KB            |       Pins 3 & 4 closed       |
          |----------------------------+-------------------------------|
          |           512KB            |       Pins 5 & 6 closed       |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 VIDEO MEMORY CONFIGURATION                 |
          |------------------------------------------------------------|
          | Note: The location of the video memory is unidentified.    |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                  CPU BUS SPEED SELECTION                   |
          |------------------------------------------------------------|
          |           Speed            |             JP18              |
          |----------------------------+-------------------------------|
          |           50MHz            |   Pins 1 & 2, 3 & 4 closed    |
          |----------------------------+-------------------------------|
          |           55MHz            |             Open              |
          |----------------------------+-------------------------------|
          |           60MHz            |       Pins 3 & 4 closed       |
          |----------------------------+-------------------------------|
          |           66MHz            |       Pins 1 & 2 closed       |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                   CPU BUS/CORE SELECTION                   |
          |------------------------------------------------------------|
          |          Bus/Core          |             JP16              |
          |----------------------------+-------------------------------|
          |            2/5             |   Pins 7 & 8, 9 & 10 closed   |
          |----------------------------+-------------------------------|
          |            1/3             |      Pins 9 & 10 closed       |
          |----------------------------+-------------------------------|
          |            1/2             |       Pins 7 & 8closed        |
          |----------------------------+-------------------------------|
          |            2/3             |             Open              |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     CPU TYPE SELECTION                     |
          |------------------------------------------------------------|
          |            Type            |              JP9              |
          |----------------------------+-------------------------------|
          |           Cyrix            |       Pins 1 & 2 closed       |
          |----------------------------+-------------------------------|
          |           Intel            |       Pins 2 & 3 closed       |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |               CPU VOLTAGE SELECTION (SINGLE)               |
          |------------------------------------------------------------|
          |          Voltage           |              JP1              |
          |----------------------------+-------------------------------|
          |            3.3v            |       Pins 1 & 2 closed       |
          |----------------------------+-------------------------------|
          |            3.6v            |       Pins 2 & 3 closed       |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                CPU VOLTAGE SELECTION (DUAL)                |
          |------------------------------------------------------------|
          |          Voltage           |              JP2              |
          |----------------------------+-------------------------------|
          |            2.7v            |       Pins 4 & 6 closed       |
          |----------------------------+-------------------------------|
          |            2.9v            |       Pins 2 & 4 closed       |
          |----------------------------+-------------------------------|
          |            3.3v            |       Pins 1 & 3 closed       |
          |----------------------------+-------------------------------|
          |           3.45v            |       Pins 3 & 5 closed       |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                  SERIAL PORT 2 SELECTION                   |
          |------------------------------------------------------------|
          |   Setting    |   JP11    |              JP17               |
          |--------------+-----------+---------------------------------|
          |    RS232     |   5 & 6   |  3 & 5, 4 & 6, 9 & 11, 10 & 12  |
          |--------------+-----------+---------------------------------|
          |    RS422     |   3 & 4   |   1 & 3, 2 & 4, 7 & 9, 8 & 10   |
          |--------------+-----------+---------------------------------|
          |    RS485     |   1 & 2   |   1 & 3, 2 & 4, 7 & 9, 8 & 10   |
          |------------------------------------------------------------|
          | Note: Pins designated should be in the closed position.    |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |               LCD PANEL INTERFACE SELECTION                |
          |------------------------------------------------------------|
          |      Setting       |       JP6        |        JP15        |
          |--------------------+------------------+--------------------|
          |     3.3v panel     |      Closed      | Pins 1 & 2 closed  |
          |--------------------+------------------+--------------------|
          |      5v panel      |       Open       | Pins 2 & 3 closed  |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                  LCD PANEL TYPE SELECTION                  |
          |------------------------------------------------------------|
          | Note: Pins 9 & 10, 11 & 12, 13 & 14, 15 & 16 on JP3 are    |
          | used to select up to 16 typed of LED BIOS.                 |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |               DISK ON CHIP ADDRESS SELECTION               |
          |------------------------------------------------------------|
          |          Setting           |              JP3              |
          |----------------------------+-------------------------------|
          |       C0000 – C7FFF        |       Pins 1 & 2 closed       |
          |----------------------------+-------------------------------|
          |       C8000 – CFFFF        |       Pins 3 & 4 closed       |
          |----------------------------+-------------------------------|
          |       D0000 – D7FFF        |       Pins 5 & 6 closed       |
          |----------------------------+-------------------------------|
          |       D8000 – DFFFF        |       Pins 7 & 8 closed       |
          +------------------------------------------------------------+
