# ACHME COMPUTER, INC.
MS-5169
Device Type Mainboard
Processor CX 6X86/CX 6X86L/CX 686MX/AM K5/AM K6/Pentium
Processor Speed Unidentified
Chip Set Aladdin
Video Chip Set None
Maximum Onboard 768MB (EDO & SDRAM supported)
Memory
Maximum Video None
Memory
Cache 256/512KB
BIOS Unidentified
Dimensions 300mm x 186mm
I/O Options 32-bit PCI slots (4), floppy drive interface,
green PC connector, IDE interfaces (2),
parallel port, PS/2 mouse port, serial ports
(2), USB connectors (2), ATX power connector,
AGP slot
NPU Options None

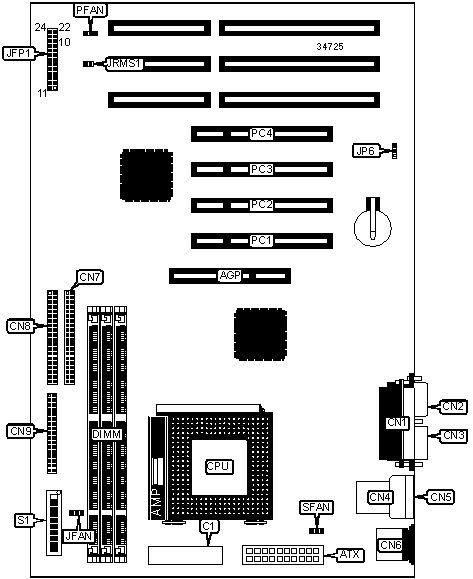

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-----------------+----------+-----------------+-------------|
| AGP slot | AGP | Floppy drive | CN9 |
| | | interface | |
|-----------------+----------+-----------------+-------------|
| ATX power | ATX | Chassis fan | JFAN |
| connector | | power | |
|-----------------+----------+-----------------+-------------|
| Switching | C1 | Power LED & | JFP1/pins 1 |
| regulator | | keylock | - 5 |
|-----------------+----------+-----------------+-------------|
| Parallel port | CN1 | Speaker | JFP1/pins 7 |
| | | | - 10 |
|-----------------+----------+-----------------+-------------|
| Serial port 2 | CN2 | Turbo LED | JFP1/pins |
| | | | 12 & 13 |
|-----------------+----------+-----------------+-------------|
| Serial port 1 | CN3 | Reset switch | JFP1/pins |
| | | | 19 & 20 |
|-----------------+----------+-----------------+-------------|
| USB connector 1 | CN4 | IDE interface | JFP1/pins |
| | | LED | 22 & 24 |
|-----------------+----------+-----------------+-------------|
| USB connector 2 | CN5 | Soft off power | JRMS1 |
| | | supply | |
|-----------------+----------+-----------------+-------------|
| PS/2 mouse port | CN6 | 32-bit PCI | PC1 – PC4 |
| | | slots | |
|-----------------+----------+-----------------+-------------|
| IDE interface | CN7 | Chassis fan | PFAN |
| | | power | |
|-----------------+----------+-----------------+-------------|
| IDE interface | CN8 | Chassis fan | SFAN |
| | | power | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|-------------------------------------+-------+--------------|
| » | Factory configured - do not | JP6 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | S1/6 | Unidentified |
| | alter | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIMM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 |
|------------+---------------+---------------+---------------|
| 8MB | (1) 1M x 64 | None | None |
|------------+---------------+---------------+---------------|
| 16MB | (1) 2M x 64 | None | None |
|------------+---------------+---------------+---------------|
| 16MB | (1) 1M x 64 | (1) 1M x 64 | None |
|------------+---------------+---------------+---------------|
| 24MB | (1) 2M x 64 | (1) 1M x 64 | None |
|------------+---------------+---------------+---------------|
| 24MB | (1) 1M x 64 | (1) 1M x 64 | (1) 1M x 64 |
|------------+---------------+---------------+---------------|
| 32MB | (1) 4M x 64 | None | None |
|------------+---------------+---------------+---------------|
| 32MB | (1) 2M x 64 | (1) 1M x 64 | (1) 1M x 64 |
|------------+---------------+---------------+---------------|
| 32MB | (1) 2M x 64 | (1) 2M x 64 | None |
|------------+---------------+---------------+---------------|
| 40MB | (1) 4M x 64 | (1) 1M x 64 | None |
|------------+---------------+---------------+---------------|
| 40MB | (1) 2M x 64 | (1) 2M x 64 | (1) 1M x 64 |
|------------+---------------+---------------+---------------|
| 48MB | (1) 4M x 64 | (1) 1M x 64 | (1) 1M x 64 |
|------------+---------------+---------------+---------------|
| 48MB | (1) 4M x 64 | (1) 2M x 64 | None |
|------------+---------------+---------------+---------------|
| 48MB | (1) 2M x 64 | (1) 2M x 64 | (1) 2M x 64 |
|------------+---------------+---------------+---------------|
| 56MB | (1) 4M x 64 | (1) 2M x 64 | (1) 1M x 64 |
|------------+---------------+---------------+---------------|
| 64MB | (1) 8M x 64 | None | None |
|------------+---------------+---------------+---------------|
| 64MB | (1) 4M x 64 | (1) 2M x 64 | (1) 2M x 64 |
|------------+---------------+---------------+---------------|
| 64MB | (1) 4M x 64 | (1) 4M x 64 | None |
|------------+---------------+---------------+---------------|
| 72MB | (1) 8M x 64 | (1) 1M x 64 | None |
|------------+---------------+---------------+---------------|
| 72MB | (1) 4M x 64 | (1) 4M x 64 | (1) 1M x 64 |
|------------+---------------+---------------+---------------|
| 80MB | (1) 8M x 64 | (1) 1M x 64 | (1) 1M x 64 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIMM CONFIGURATION (CON’T) |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 |
|------------+---------------+---------------+---------------|
| 80MB | (1) 8M x 64 | (1) 2M x 64 | None |
|------------+---------------+---------------+---------------|
| 80MB | (1) 4M x 64 | (1) 4M x 64 | (1) 2M x 64 |
|------------+---------------+---------------+---------------|
| 88MB | (1) 8M x 64 | (1) 2M x 64 | (1) 1M x 64 |
|------------+---------------+---------------+---------------|
| 96MB | (1) 8M x 64 | (1) 2M x 64 | (1) 2M x 64 |
|------------+---------------+---------------+---------------|
| 96MB | (1) 8M x 64 | (1) 4M x 64 | None |
|------------+---------------+---------------+---------------|
| 96MB | (1) 4M x 64 | (1) 4M x 64 | (1) 4M x 64 |
|------------+---------------+---------------+---------------|
| 104MB | (1) 8M x 64 | (1) 4M x 64 | (1) 1M x 64 |
|------------+---------------+---------------+---------------|
| 112MB | (1) 8M x 64 | (1) 4M x 64 | (1) 2M x 64 |
|------------+---------------+---------------+---------------|
| 128MB | (1) 16M x 64 | None | None |
|------------+---------------+---------------+---------------|
| 128MB | (1) 8M x 64 | (1) 4M x 64 | (1) 4M x 64 |
|------------+---------------+---------------+---------------|
| 128MB | (1) 8M x 64 | (1) 8M x 64 | None |
|------------+---------------+---------------+---------------|
| 136MB | (1) 16M x 64 | (1) 1M x 64 | None |
|------------+---------------+---------------+---------------|
| 136MB | (1) 8M x 64 | (1) 8M x 64 | (1) 1M x 64 |
|------------+---------------+---------------+---------------|
| 144MB | (1) 16M x 64 | (1) 1M x 64 | (1) 1M x 64 |
|------------+---------------+---------------+---------------|
| 144MB | (1) 16M x 64 | (1) 2M x 64 | None |
|------------+---------------+---------------+---------------|
| 144MB | (1) 8M x 64 | (1) 8M x 64 | (1) 2M x 64 |
|------------+---------------+---------------+---------------|
| 152MB | (1) 16M x 64 | (1) 2M x 64 | (1) 1M x 64 |
|------------+---------------+---------------+---------------|
| 160MB | (1) 16M x 64 | (1) 2M x 64 | (1) 2M x 64 |
|------------+---------------+---------------+---------------|
| 160MB | (1) 16M x 64 | (1) 4M x 64 | None |
|------------+---------------+---------------+---------------|
| 160MB | (1) 8M x 64 | (1) 8M x 64 | (1) 4M x 64 |
|------------+---------------+---------------+---------------|
| 168MB | (1) 16M x 64 | (1) 4M x 64 | (1) 1M x 64 |
|------------+---------------+---------------+---------------|
| 176MB | (1) 16M x 64 | (1) 4M x 64 | (1) 2M x 64 |
|------------+---------------+---------------+---------------|
| 192MB | (1) 16M x 64 | (1) 4M x 64 | (1) 4M x 64 |
|------------+---------------+---------------+---------------|
| 192MB | (1) 16M x 64 | (1) 8M x 64 | None |
|------------+---------------+---------------+---------------|
| 192MB | (1) 8M x 64 | (1) 8M x 64 | (1) 8M x 64 |
|------------+---------------+---------------+---------------|
| 200MB | (1) 16M x 64 | (1) 8M x 64 | (1) 1M x 64 |
|------------+---------------+---------------+---------------|
| 208MB | (1) 16M x 64 | (1) 8M x 64 | (1) 2M x 64 |
|------------+---------------+---------------+---------------|
| 224MB | (1) 16M x 64 | (1) 8M x 64 | (1) 4M x 64 |
|------------+---------------+---------------+---------------|
| 256MB | (1) 16M x 64 | (1) 8M x 64 | (1) 8M x 64 |
|------------+---------------+---------------+---------------|
| 384MB | (1) 16M x 64 | (1) 16M x 64 | (1) 16M x 64 |
|------------+---------------+---------------+---------------|
| 512MB | (1) 32M x 64 | (1) 32M x 64 | None |
|------------+---------------+---------------+---------------|
| 768MB | (1) 32M x 64 | (1) 32M x 64 | (1) 32M x 64 |
|------------------------------------------------------------|
| Note: Board accepts EDO & SDRAM memory. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Note: 256KB/512KB cache is factory installed and is not |
| configurable. The location is unidentified. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU CLOCK SPEED SELECTION |
|------------------------------------------------------------|
| CPU speed | S1/4 | S1/5 |
|--------------------+--------------------+------------------|
| 66MHz | Off | On |
|--------------------+--------------------+------------------|
| 75MHz | Off | Off |
|--------------------+--------------------+------------------|
| 83MHz | On | On |
|--------------------+--------------------+------------------|
| 100MHz | On | Off |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU MULTIPLIER SELECTION |
|------------------------------------------------------------|
| Multiplier | S1/1 | S1/2 | S1/3 |
|---------------+--------------+--------------+--------------|
| 1.5x | Off | Off | Off |
|---------------+--------------+--------------+--------------|
| 2x | On | Off | Off |
|---------------+--------------+--------------+--------------|
| 2.5x | On | On | Off |
|---------------+--------------+--------------+--------------|
| 3x | Off | On | Off |
|---------------+--------------+--------------+--------------|
| 3.5x | Off | Off | Off |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU VOLTAGE SELECTION |
|------------------------------------------------------------|
| Voltage | V core | S1/7 | S1/8 | S1/9 | S1/10 |
|----------+----------+---------+---------+--------+---------|
| 3.3v | 2.1v | Off | Off | Off | Off |
|----------+----------+---------+---------+--------+---------|
| 3.3v | 2.2v | On | Off | Off | Off |
|----------+----------+---------+---------+--------+---------|
| 3.3v | 2.3v | Off | On | Off | Off |
|----------+----------+---------+---------+--------+---------|
| 3.3v | 2.4v | On | On | Off | Off |
|----------+----------+---------+---------+--------+---------|
| 3.3v | 2.5v | Off | Off | On | Off |
|----------+----------+---------+---------+--------+---------|
| 3.3v | 2.6v | On | Off | On | Off |
|----------+----------+---------+---------+--------+---------|
| 3.3v | 2.7v | Off | On | On | Off |
|----------+----------+---------+---------+--------+---------|
| 3.3v | 2.8v | On | On | On | Off |
|----------+----------+---------+---------+--------+---------|
| 3.3v | 2.9v | Off | Off | Off | On |
|----------+----------+---------+---------+--------+---------|
| 3.3v | 3.0v | On | Off | Off | On |
|----------+----------+---------+---------+--------+---------|
| 3.3v | 3.1v | Off | On | Off | On |
|----------+----------+---------+---------+--------+---------|
| 3.3v | 3.2v | On | On | Off | On |
|----------+----------+---------+---------+--------+---------|
| 3.3v | 3.3v | Off | Off | On | On |
|----------+----------+---------+---------+--------+---------|
| 3.3v | 3.4v | On | Off | On | On |
|----------+----------+---------+---------+--------+---------|
| 3.5v | 3.5v | Off | On | On | On |
|----------+----------+---------+---------+--------+---------|
| 3.3v | 3.6v | On | On | On | On |
+------------------------------------------------------------+
