# ACHME COMPUTER, INC.
MS-6117
Device Type Mainboard
Processor Pentium II
Processor Speed 200/233/266/300/333MHz
Chip Set Intel
Video Chip Set None
Maximum Onboard 1GB (EDO & SDRAM supported)
Memory
Maximum Video None
Memory
Cache 256/512KB (located on Pentium II CPU)
BIOS Unidentified
Dimensions 305mm x 186mm
I/O Options 32-bit PCI slots (5), floppy drive interface,
green PC connector, IDE interfaces (2),
parallel port, PS/2 mouse port, serial ports
(2), IR connector, USB connectors (2), ATX
power connector, AGP slot
NPU Options None

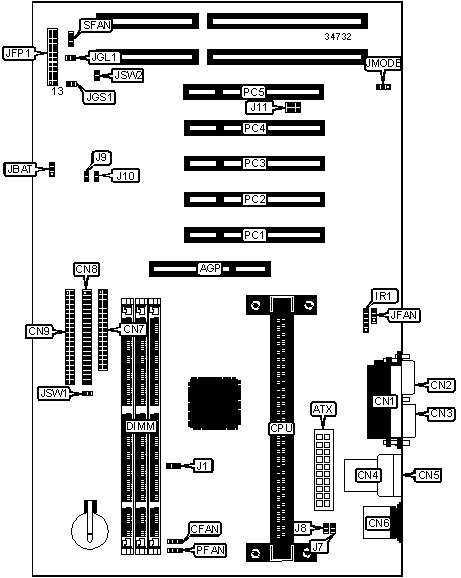

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-----------------+----------+----------------+--------------|
| AGP slot | AGP | Green PC LED | JGL1 |
|-----------------+----------+----------------+--------------|
| ATX power | ATX | Green PC | JGS1 |
| connector | | connector | |
|-----------------+----------+----------------+--------------|
| CPU fan power | CFAN | Turbo LED | JFP1/pins 2 |
| | | | & 3 |
|-----------------+----------+----------------+--------------|
| Parallel port | CN1 | Reset switch | JFP1/pins 9 |
| | | | & 10 |
|-----------------+----------+----------------+--------------|
| Serial port 2 | CN2 | IDE interface | JFP1/pins 12 |
| | | LED | & 24 |
|-----------------+----------+----------------+--------------|
| Serial port 1 | CN3 | Power LED & | JFP1/pins 13 |
| | | keylock | - 17 |
|-----------------+----------+----------------+--------------|
| USB connector 1 | CN4 | Speaker | JFP1/pins 19 |
| | | | - 22 |
|-----------------+----------+----------------+--------------|
| USB connector 2 | CN5 | Chassis fan | JFAN |
| | | power | |
|-----------------+----------+----------------+--------------|
| PS/2 mouse port | CN6 | Soft off power | JSW1 |
| | | supply | |
|-----------------+----------+----------------+--------------|
| Floppy drive | CN7 | Soft off power | JSW2 |
| interface | | supply | |
|-----------------+----------+----------------+--------------|
| IDE interface | CN8 | 32-bit PCI | PC1 – PC5 |
| | | slots | |
|-----------------+----------+----------------+--------------|
| IDE interface | CN9 | Power supply | PFAN |
| | | fan | |
|-----------------+----------+----------------+--------------|
| IR connector | IR1 | Chassis fan | SFAN |
| | | power | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|-------------------------------------+-------+--------------|
| » | Factory configured - do not | J1 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | J11 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | CMOS memory normal operation | JBAT | Pins 1 & 2 |
| | | | closed |
|---+---------------------------------+-------+--------------|
| | CMOS memory clear | JBAT | Pins 2 & 3 |
| | | | closed |
|---+---------------------------------+-------+--------------|
| » | Flash BIOS voltage select 12v | JMODE | Pins 1 & 2 |
| | | | closed |
|---+---------------------------------+-------+--------------|
| | Flash BIOS voltage select 5v | JMODE | Pins 2 & 3 |
| | | | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIMM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 |
|------------+---------------+---------------+---------------|
| 8MB | (1) 1M x 64 | None | None |
|------------+---------------+---------------+---------------|
| 16MB | (1) 2M x 64 | None | None |
|------------+---------------+---------------+---------------|
| 16MB | (1) 1M x 64 | (1) 1M x 64 | None |
|------------+---------------+---------------+---------------|
| 24MB | (1) 2M x 64 | (1) 1M x 64 | None |
|------------+---------------+---------------+---------------|
| 24MB | (1) 1M x 64 | (1) 1M x 64 | (1) 1M x 64 |
|------------+---------------+---------------+---------------|
| 32MB | (1) 4M x 64 | None | None |
|------------+---------------+---------------+---------------|
| 32MB | (1) 2M x 64 | (1) 1M x 64 | (1) 1M x 64 |
|------------+---------------+---------------+---------------|
| 32MB | (1) 2M x 64 | (1) 2M x 64 | None |
|------------+---------------+---------------+---------------|
| 40MB | (1) 4M x 64 | (1) 1M x 64 | None |
|------------+---------------+---------------+---------------|
| 40MB | (1) 2M x 64 | (1) 2M x 64 | (1) 1M x 64 |
|------------+---------------+---------------+---------------|
| 48MB | (1) 4M x 64 | (1) 1M x 64 | (1) 1M x 64 |
|------------+---------------+---------------+---------------|
| 48MB | (1) 4M x 64 | (1) 2M x 64 | None |
|------------+---------------+---------------+---------------|
| 48MB | (1) 2M x 64 | (1) 2M x 64 | (1) 2M x 64 |
|------------+---------------+---------------+---------------|
| 56MB | (1) 4M x 64 | (1) 2M x 64 | (1) 1M x 64 |
|------------+---------------+---------------+---------------|
| 64MB | (1) 8M x 64 | None | None |
|------------+---------------+---------------+---------------|
| 64MB | (1) 4M x 64 | (1) 2M x 64 | (1) 2M x 64 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIMM CONFIGURATION (CON’T) |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 |
|----------+-----------------+---------------+---------------|
| 64MB | (1) 4M x 64 | (1) 4M x 64 | None |
|----------+-----------------+---------------+---------------|
| 72MB | (1) 8M x 64 | (1) 1M x 64 | None |
|----------+-----------------+---------------+---------------|
| 72MB | (1) 4M x 64 | (1) 4M x 64 | (1) 1M x 64 |
|----------+-----------------+---------------+---------------|
| 80MB | (1) 8M x 64 | (1) 1M x 64 | (1) 1M x 64 |
|----------+-----------------+---------------+---------------|
| 80MB | (1) 8M x 64 | (1) 2M x 64 | None |
|----------+-----------------+---------------+---------------|
| 80MB | (1) 4M x 64 | (1) 4M x 64 | (1) 2M x 64 |
|----------+-----------------+---------------+---------------|
| 88MB | (1) 8M x 64 | (1) 2M x 64 | (1) 1M x 64 |
|----------+-----------------+---------------+---------------|
| 96MB | (1) 8M x 64 | (1) 2M x 64 | (1) 2M x 64 |
|----------+-----------------+---------------+---------------|
| 96MB | (1) 8M x 64 | (1) 4M x 64 | None |
|----------+-----------------+---------------+---------------|
| 96MB | (1) 4M x 64 | (1) 4M x 64 | (1) 4M x 64 |
|----------+-----------------+---------------+---------------|
| 104MB | (1) 8M x 64 | (1) 4M x 64 | (1) 1M x 64 |
|----------+-----------------+---------------+---------------|
| 112MB | (1) 8M x 64 | (1) 4M x 64 | (1) 2M x 64 |
|----------+-----------------+---------------+---------------|
| 128MB | (1) 16M x 64 | None | None |
|----------+-----------------+---------------+---------------|
| 128MB | (1) 8M x 64 | (1) 4M x 64 | (1) 4M x 64 |
|----------+-----------------+---------------+---------------|
| 128MB | (1) 8M x 64 | (1) 8M x 64 | None |
|----------+-----------------+---------------+---------------|
| 136MB | (1) 16M x 64 | (1) 1M x 64 | None |
|----------+-----------------+---------------+---------------|
| 136MB | (1) 8M x 64 | (1) 8M x 64 | (1) 1M x 64 |
|----------+-----------------+---------------+---------------|
| 144MB | (1) 16M x 64 | (1) 1M x 64 | (1) 1M x 64 |
|----------+-----------------+---------------+---------------|
| 144MB | (1) 16M x 64 | (1) 2M x 64 | None |
|----------+-----------------+---------------+---------------|
| 144MB | (1) 8M x 64 | (1) 8M x 64 | (1) 2M x 64 |
|----------+-----------------+---------------+---------------|
| 152MB | (1) 16M x 64 | (1) 2M x 64 | (1) 1M x 64 |
|----------+-----------------+---------------+---------------|
| 160MB | (1) 16M x 64 | (1) 2M x 64 | (1) 2M x 64 |
|----------+-----------------+---------------+---------------|
| 160MB | (1) 16M x 64 | (1) 4M x 64 | None |
|----------+-----------------+---------------+---------------|
| 160MB | (1) 8M x 64 | (1) 8M x 64 | (1) 4M x 64 |
|----------+-----------------+---------------+---------------|
| 168MB | (1) 16M x 64 | (1) 4M x 64 | (1) 1M x 64 |
|----------+-----------------+---------------+---------------|
| 176MB | (1) 16M x 64 | (1) 4M x 64 | (1) 2M x 64 |
|----------+-----------------+---------------+---------------|
| 192MB | (1) 16M x 64 | (1) 4M x 64 | (1) 4M x 64 |
|----------+-----------------+---------------+---------------|
| 192MB | (1) 16M x 64 | (1) 8M x 64 | None |
|----------+-----------------+---------------+---------------|
| 192MB | (1) 8M x 64 | (1) 8M x 64 | (1) 8M x 64 |
|----------+-----------------+---------------+---------------|
| 200MB | (1) 16M x 64 | (1) 8M x 64 | (1) 1M x 64 |
|----------+-----------------+---------------+---------------|
| 208MB | (1) 16M x 64 | (1) 8M x 64 | (1) 2M x 64 |
|----------+-----------------+---------------+---------------|
| 224MB | (1) 16M x 64 | (1) 8M x 64 | (1) 4M x 64 |
|----------+-----------------+---------------+---------------|
| 256MB | (1) 16M x 64 | (1) 8M x 64 | (1) 8M x 64 |
|----------+-----------------+---------------+---------------|
| 384MB | (1) 16M x 64 | (1) 16M x 64 | (1) 16M x 64 |
|----------+-----------------+---------------+---------------|
| 512MB | (1) 32M x 64 | (1) 32M x 64 | None |
|----------+-----------------+---------------+---------------|
| 512MB | (1) 64M x 64 | None | None |
|----------+-----------------+---------------+---------------|
| 768MB | (1) 32M x 64 | (1) 32M x 64 | (1) 32M x 64 |
|----------+-----------------+---------------+---------------|
| 1024MB | (1) 64M x 64 | (1) 64M x 64 | None |
|------------------------------------------------------------|
| Note: Board accepts EDO & SDRAM memory. 512MB maximum if |
| using EDO memory. 1024MB maximum if using EDO memory. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Note: 256KB/512KB cache is located on the Pentium II CPU. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED SELECTION |
|------------------------------------------------------------|
| CPU | Clock |Multiplier| J9 |J10 |SW1/1|SW1/2|SW1/3|SW1/4|
| speed | speed | | | | | | | |
|-------+-------+----------+----+----+-----+-----+-----+-----|
|200MHz | 66MHz | 3x |Open|Open| On | On | Off | On |
|-------+-------+----------+----+----+-----+-----+-----+-----|
|233MHz | 66MHz | 3.5x |Open|Open| On | Off | Off | On |
|-------+-------+----------+----+----+-----+-----+-----+-----|
|266MHz | 66MHz | 4x |Open|Open| On | On | On | Off |
|-------+-------+----------+----+----+-----+-----+-----+-----|
|300MHz | 66MHz | 4.5x |Open|Open| On | Off | On | Off |
|-------+-------+----------+----+----+-----+-----+-----+-----|
|333MHz | 66MHz | 5x |Open|Open| On | On | Off | Off |
|------------------------------------------------------------|
|Note: The location of SW1 is unidentified. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| KEYBOARD POWER SELECTION |
|------------------------------------------------------------|
| Voltage | J7 | J8 |
|------------------------+-----------------+-----------------|
| » | 5v | Closed | Open |
|---+--------------------+-----------------+-----------------|
| | 5v standby | Open | Closed |
+------------------------------------------------------------+
