# AMERICAN MEGATRENDS, INC.
EZ-FLEX SERIES 38
Device Type Mainboard
Processor AM386DX/80386DX
Processor Speed 25/33/40MHz
Chip Set Unidentified
Video Chip Set None
Maximum Onboard Memory None
Maximum Video Memory None
Cache 64/256KB
BIOS AMI
Dimensions Unidentified
I/O Options None
NPU Options 80387DX/3167

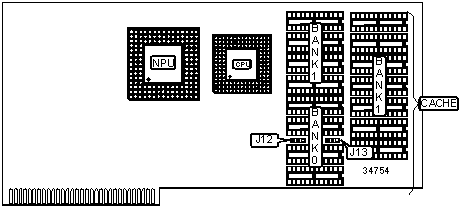

IMG IMG 1
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 64KB | Unidentified | None |
|------------------+--------------------+--------------------|
| 256KB | Unidentified | (11) 64K x 4 |
|------------------------------------------------------------|
| Note: the chip size in bank 0 is unidentified. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE JUMPER CONFIGURATION |
|------------------------------------------------------------|
| Size | J12 | J13 |
|------------------+--------------------+--------------------|
| 64KB | Pins 1 & 2 closed | Pins 1 & 2 closed |
|------------------+--------------------+--------------------|
| 256KB | Pins 2 & 3 closed | Pins 2 & 3 closed |
+------------------------------------------------------------+
