# ASUS COMPUTER INTERNATIONAL
P2L97-DS (REV. 1.03)
Device Type Mainboard
Processor Pentium II
Processor Speed 233/266/300MHz
Chip Set Intel
Video Chip Set None
Maximum Onboard 512MB (EDO & SDRAM supported)
Memory
Maximum Video None
Memory
Cache 256/512KB (located on Pentium II CPU)
BIOS Unidentified
Dimensions 305mm x 244mm
I/O Options 32-bit PCI slots (4), floppy drive interface,
green PC connector, IDE interfaces (2),
Narrow SCSI interface, Wide SCSI interface,
parallel port, PS/2 mouse port, serial ports
(2), IR connector, USB connectors (2), ATX
power connector, AGP slot
NPU Options None

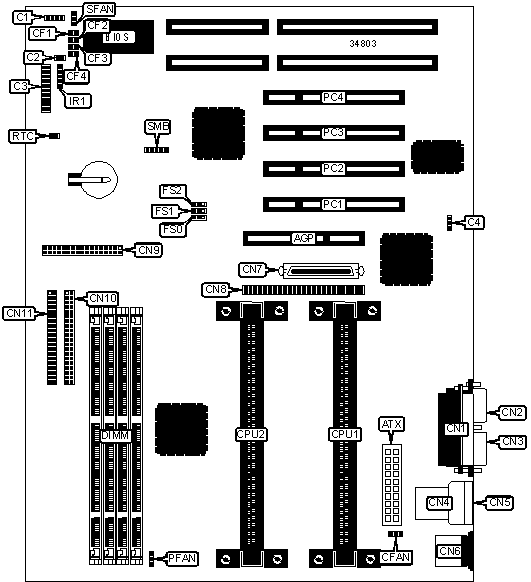

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|------------------+-----------+-----------------+-----------|
| AGP slot | AGP | Serial port 1 | CN3 |
|------------------+-----------+-----------------+-----------|
| ATX power | ATX | USB connector 1 | CN4 |
| connector | | | |
|------------------+-----------+-----------------+-----------|
| Alarm connector | C1 | USB connector 2 | CN5 |
|------------------+-----------+-----------------+-----------|
| IDE interface | C2 | PS/2 mouse port | CN6 |
| LED | | | |
|------------------+-----------+-----------------+-----------|
| Speaker | C3/pins 1 | Wide SCSI | CN7 |
| | – 4 | interface | |
|------------------+-----------+-----------------+-----------|
| Power LED & | C3/pins 6 | Narrow SCSI | CN8 |
| keylock | - 10 | interface | |
|------------------+-----------+-----------------+-----------|
| Reset switch | C3/pins | Floppy drive | CN9 |
| | 11 & 12 | interface | |
|------------------+-----------+-----------------+-----------|
| Soft off power | C3/pins | IDE interface 1 | CN10 |
| supply | 14 & 15 | | |
|------------------+-----------+-----------------+-----------|
| Green PC | C3/pins | IDE interface 2 | CN11 |
| connector | 16 & 17 | | |
|------------------+-----------+-----------------+-----------|
| Turbo LED | C3/pins | IR connector | IR1 |
| | 18 & 19 | | |
|------------------+-----------+-----------------+-----------|
| Wake on LAN | C4 | 32-bit PCI | PC1 – PC4 |
| connector | | slots | |
|------------------+-----------+-----------------+-----------|
| CPU fan power | CFAN | Power supply | PFAN |
| | | fan | |
|------------------+-----------+-----------------+-----------|
| Parallel port | CN1 | Chassis fan | SFAN |
| | | power | |
|------------------+-----------+-----------------+-----------|
| Serial port 2 | CN2 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|-------------------------------------+-------+--------------|
| » | CMOS memory normal operation | RTC | Open |
|---+---------------------------------+-------+--------------|
| | CMOS memory clear | RTC | Closed |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | SMB | Unidentified |
| | alter | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIMM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 | Bank 3 |
|------+-------------+-------------+------------+------------|
| 8MB | (1) 1M x 64 | None | None | None |
|------+-------------+-------------+------------+------------|
| 16MB | (1) 2M x 64 | None | None | None |
|------+-------------+-------------+------------+------------|
| 16MB | (1) 1M x 64 | (1) 1M x 64 | None | None |
|------+-------------+-------------+------------+------------|
| 24MB | (1) 2M x 64 | (1) 1M x 64 | None | None |
|------+-------------+-------------+------------+------------|
| 24MB | (1) 1M x 64 | (1) 1M x 64 | (1) 1M x | None |
| | | | 64 | |
|------+-------------+-------------+------------+------------|
| 32MB | (1) 4M x 64 | None | None | None |
|------+-------------+-------------+------------+------------|
| 32MB | (1) 2M x 64 | (1) 2M x 64 | None | None |
|------+-------------+-------------+------------+------------|
| 32MB | (1) 1M x 64 | (1) 1M x 64 | (1) 1M x | (1) 1M x |
| | | | 64 | 64 |
|------+-------------+-------------+------------+------------|
| 40MB | (1) 4M x 64 | (1) 1M x 64 | None | None |
|------+-------------+-------------+------------+------------|
| 48MB | (1) 4M x 64 | (1) 2M x 64 | None | None |
|------+-------------+-------------+------------+------------|
| 48MB | (1) 2M x 64 | (1) 2M x 64 | (1) 2M x | None |
| | | | 64 | |
|------+-------------+-------------+------------+------------|
| 64MB | (1) 2M x 64 | (1) 2M x 64 | (1) 2M x | (1) 2M x |
| | | | 64 | 64 |
|------+-------------+-------------+------------+------------|
| 64MB | (1) 8M x 64 | None | None | None |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIMM CONFIGURATION (CON’T) |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 | Bank 3 |
|-------+-------------+------------+------------+------------|
| 64MB | (1) 4M x 64 | (1) 4M x | None | None |
| | | 64 | | |
|-------+-------------+------------+------------+------------|
| 72MB | (1) 8M x 64 | (1) 1M x | None | None |
| | | 64 | | |
|-------+-------------+------------+------------+------------|
| 80MB | (1) 8M x 64 | (1) 2M x | None | None |
| | | 64 | | |
|-------+-------------+------------+------------+------------|
| 96MB | (1) 8M x 64 | (1) 4M x | None | None |
| | | 64 | | |
|-------+-------------+------------+------------+------------|
| 96MB | (1) 4M x 64 | (1) 4M x | (1) 4M x | None |
| | | 64 | 64 | |
|-------+-------------+------------+------------+------------|
| 128MB | (1) 16M x | None | None | None |
| | 64 | | | |
|-------+-------------+------------+------------+------------|
| 128MB | (1) 8M x 64 | (1) 8M x | None | None |
| | | 64 | | |
|-------+-------------+------------+------------+------------|
| 128MB | (1) 4M x 64 | (1) 4M x | (1) 4M x | (1) 4M x |
| | | 64 | 64 | 64 |
|-------+-------------+------------+------------+------------|
| 136MB | (1) 16M x | (1) 1M x | None | None |
| | 64 | 64 | | |
|-------+-------------+------------+------------+------------|
| 144MB | (1) 16M x | (1) 2M x | None | None |
| | 64 | 64 | | |
|-------+-------------+------------+------------+------------|
| 152MB | (1) 16M x | (1) 1M x | (1) 1M x | (1) 1M x |
| | 64 | 64 | 64 | 64 |
|-------+-------------+------------+------------+------------|
| 160MB | (1) 16M x | (1) 4M x | None | None |
| | 64 | 64 | | |
|-------+-------------+------------+------------+------------|
| 176MB | (1) 16M x | (1) 2M x | (1) 2M x | (1) 2M x |
| | 64 | 64 | 64 | 64 |
|-------+-------------+------------+------------+------------|
| 192MB | (1) 16M x | (1) 8M x | None | None |
| | 64 | 64 | | |
|-------+-------------+------------+------------+------------|
| 192MB | (1) 8M x 64 | (1) 8M x | (1) 8M x | None |
| | | 64 | 64 | |
|-------+-------------+------------+------------+------------|
| 224MB | (1) 16M x | (1) 4M x | (1) 4M x | (1) 4M x |
| | 64 | 64 | 64 | 64 |
|-------+-------------+------------+------------+------------|
| 256MB | (1) 32M x | None | None | None |
| | 64 | | | |
|-------+-------------+------------+------------+------------|
| 256MB | (1) 16M x | (1) 16M x | None | None |
| | 64 | 64 | | |
|-------+-------------+------------+------------+------------|
| 256MB | (1) 8M x 64 | (1) 8M x | (1) 8M x | (1) 8M x |
| | | 64 | 64 | 64 |
|-------+-------------+------------+------------+------------|
| 272MB | (1) 16M x | (1) 16M x | (1) 1M x | (1) 1M x |
| | 64 | 64 | 64 | 64 |
|-------+-------------+------------+------------+------------|
| 280MB | (1) 32M x | (1) 1M x | (1) 1M x | (1) 1M x |
| | 64 | 64 | 64 | 64 |
|-------+-------------+------------+------------+------------|
| 288MB | (1) 16M x | (1) 16M x | (1) 2M x | (1) 2M x |
| | 64 | 64 | 64 | 64 |
|-------+-------------+------------+------------+------------|
| 304MB | (1) 32M x | (1) 2M x | (1) 2M x | (1) 2M x |
| | 64 | 64 | 64 | 64 |
|-------+-------------+------------+------------+------------|
| 320MB | (1) 16M x | (1) 16M x | (1) 4M x | (1) 4M x |
| | 64 | 64 | 64 | 64 |
|-------+-------------+------------+------------+------------|
| 320MB | (1) 16M x | (1) 8M x | (1) 8M x | (1) 8M x |
| | 64 | 64 | 64 | 64 |
|-------+-------------+------------+------------+------------|
| 352MB | (1) 32M x | (1) 4M x | (1) 4M x | (1) 4M x |
| | 64 | 64 | 64 | 64 |
|-------+-------------+------------+------------+------------|
| 384MB | (1) 16M x | (1) 16M x | (1) 16M x | None |
| | 64 | 64 | 64 | |
|-------+-------------+------------+------------+------------|
| 448MB | (1) 32M x | (1) 8M x | (1) 8M x | (1) 8M x |
| | 64 | 64 | 64 | 64 |
|-------+-------------+------------+------------+------------|
| 512MB | (1) 16M x | (1) 16M x | (1) 16M x | (1) 16M x |
| | 64 | 64 | 64 | 64 |
|------------------------------------------------------------|
| Note: Board accepts EDO & SDRAM memory. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Note: 256KB/512KB cache is located on the Pentium II CPU. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED SELECTION |
|------------------------------------------------------------|
|CPU speed|Clock speed|Multiplier| CF1 | CF2 | CF3 | CF4 |
|---------+-----------+----------+------+------+------+------|
| 233MHz | 66MHz | 3.5x | Open | Open |Closed|Closed|
|---------+-----------+----------+------+------+------+------|
| 266MHz | 66MHz | 4x |Closed|Closed| Open |Closed|
|---------+-----------+----------+------+------+------+------|
| 300MHz | 66MHz | 4.5x | Open |Closed| Open |Closed|
|------------------------------------------------------------|
|Note: Pins designated should be in the closed position. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED SELECTION (CON’T) |
|------------------------------------------------------------|
| CPU speed | Clock | Multiplier | FS0 | FS1 | FS2 |
| | speed | | | | |
|------------+----------+------------+-------+-------+-------|
| 233MHz | 66MHz | 3.5x | 1 & 2 | 1 & 2 | 1 & 2 |
|------------+----------+------------+-------+-------+-------|
| 266MHz | 66MHz | 4x | 1 & 2 | 1 & 2 | 1 & 2 |
|------------+----------+------------+-------+-------+-------|
| 300MHz | 66MHz | 4.5x | 1 & 2 | 1 & 2 | 1 & 2 |
|------------------------------------------------------------|
| Note: Pins designated should be in the closed position. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MISCELLANEOUS TECHINCAL NOTE |
|------------------------------------------------------------|
| If only one CPU is installed, it must be in CPU1. |
+------------------------------------------------------------+
