# ACER INC.
ASPIRE 5000E, V65LA
Device Type Mainboard
Processor Pentium II
Processor Speed 233/266/300/333MHz
Chip Set Unidentified
Video Chip Set None
Maximum Onboard 384MB (SDRAM supported)
Memory
Maximum Video Unidentified
Memory
Cache 256/512KB (located on Pentium II CPU)
BIOS Acer
Dimensions 305mm x 244mm
I/O Options Floppy drive interface, IDE interfaces (2),
parallel port, PS/2 mouse port, serial ports
(2), VGA port, riser slot, IR connector, USB
connectors (3)
NPU Options None

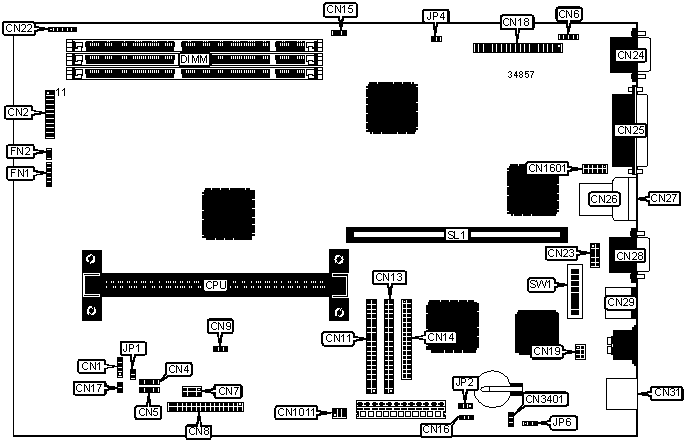

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-------------------+----------+------------------+----------|
| IDE interface LED | CN1 | Parallel port | CN25 |
|-------------------+----------+------------------+----------|
| Front panel | CN2 | USB connector 1 | CN26 |
| connector | | (external) | |
|-------------------+----------+------------------+----------|
| IDE interface 1 | CN11 | USB connector 2 | CN27 |
| | | (external) | |
|-------------------+----------+------------------+----------|
| IDE interface 2 | CN13 | Serial port 1 | CN28 |
|-------------------+----------+------------------+----------|
| Floppy drive | CN14 | PS/2 mouse port | CN29 |
| interface | | | |
|-------------------+----------+------------------+----------|
| Wake on modem | CN15 | Appears off | CN1011 |
| connector | | connector | |
|-------------------+----------+------------------+----------|
| Software shutdown | CN16 | Serial port 2 | CN1601 |
| connector | | | |
|-------------------+----------+------------------+----------|
| Soft off power | CN17 | Wake on LAN | CN3401 |
| supply | | connector | |
|-------------------+----------+------------------+----------|
| ATI AMC connector | CN18 | Chassis fan | FN1 |
| | | power | |
|-------------------+----------+------------------+----------|
| Wake on LAN | CN19 | Chassis fan | FN2 |
| connector | | power | |
|-------------------+----------+------------------+----------|
| USB connector | CN23 | Riser slot | SL1 |
| (internal) | | | |
|-------------------+----------+------------------+----------|
| VGA port | CN24 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|-------------------------------------+-------+--------------|
| » | Factory configured - do not | CN4 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | CN5 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | CN6 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | CN7 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | CN8 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | CN9 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | CN22 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | CN31 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | JP1 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | JP2 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | JP4 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | JP6 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Password disabled | SW1/2 | On |
|---+---------------------------------+-------+--------------|
| | Password enabled | SW1/2 | Off |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | SW1/3 | On |
| | alter (Acer BIOS) | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | SW1/4 | Unidentified |
| | alter | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIMM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 |
|-------------+---------------+---------------+--------------|
| 16MB | (1) 2M x 64 | None | None |
|-------------+---------------+---------------+--------------|
| 32MB | (1) 4M x 64 | None | None |
|-------------+---------------+---------------+--------------|
| 32MB | (1) 2M x 64 | (1) 2M x 64 | None |
|-------------+---------------+---------------+--------------|
| 48MB | (1) 4M x 64 | (1) 2M x 64 | None |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIMM CONFIGURATION (CON'T) |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 |
|------------+---------------+---------------+---------------|
| 48MB | (1) 2M x 64 | (1) 2M x 64 | (1) 2M x 64 |
|------------+---------------+---------------+---------------|
| 64MB | (1) 8M x 64 | None | None |
|------------+---------------+---------------+---------------|
| 64MB | (1) 4M x 64 | (1) 2M x 64 | (1) 2M x 64 |
|------------+---------------+---------------+---------------|
| 64MB | (1) 4M x 64 | (1) 4M x 64 | None |
|------------+---------------+---------------+---------------|
| 80MB | (1) 8M x 64 | (1) 2M x 64 | None |
|------------+---------------+---------------+---------------|
| 80MB | (1) 4M x 64 | (1) 4M x 64 | (1) 2M x 64 |
|------------+---------------+---------------+---------------|
| 96MB | (1) 8M x 64 | (1) 2M x 64 | (1) 2M x 64 |
|------------+---------------+---------------+---------------|
| 96MB | (1) 8M x 64 | (1) 4M x 64 | None |
|------------+---------------+---------------+---------------|
| 96MB | (1) 4M x 64 | (1) 4M x 64 | (1) 4M x 64 |
|------------+---------------+---------------+---------------|
| 112MB | (1) 8M x 64 | (1) 4M x 64 | (1) 2M x 64 |
|------------+---------------+---------------+---------------|
| 128MB | (1) 16M x 64 | None | None |
|------------+---------------+---------------+---------------|
| 128MB | (1) 8M x 64 | (1) 4M x 64 | (1) 4M x 64 |
|------------+---------------+---------------+---------------|
| 128MB | (1) 8M x 64 | (1) 8M x 64 | None |
|------------+---------------+---------------+---------------|
| 144MB | (1) 16M x 64 | (1) 2M x 64 | None |
|------------+---------------+---------------+---------------|
| 144MB | (1) 8M x 64 | (1) 8M x 64 | (1) 2M x 64 |
|------------+---------------+---------------+---------------|
| 160MB | (1) 16M x 64 | (1) 2M x 64 | (1) 2M x 64 |
|------------+---------------+---------------+---------------|
| 160MB | (1) 16M x 64 | (1) 4M x 64 | None |
|------------+---------------+---------------+---------------|
| 160MB | (1) 8M x 64 | (1) 8M x 64 | (1) 4M x 64 |
|------------+---------------+---------------+---------------|
| 176MB | (1) 16M x 64 | (1) 4M x 64 | (1) 2M x 64 |
|------------+---------------+---------------+---------------|
| 192MB | (1) 16M x 64 | (1) 4M x 64 | (1) 4M x 64 |
|------------+---------------+---------------+---------------|
| 192MB | (1) 16M x 64 | (1) 8M x 64 | None |
|------------+---------------+---------------+---------------|
| 192MB | (1) 8M x 64 | (1) 8M x 64 | (1) 8M x 64 |
|------------+---------------+---------------+---------------|
| 208MB | (1) 16M x 64 | (1) 8M x 64 | (1) 2M x 64 |
|------------+---------------+---------------+---------------|
| 224MB | (1) 16M x 64 | (1) 8M x 64 | (1) 4M x 64 |
|------------+---------------+---------------+---------------|
| 256MB | (1) 16M x 64 | (1) 8M x 64 | (1) 8M x 64 |
|------------+---------------+---------------+---------------|
| 384MB | (1) 16M x 64 | (1) 16M x 64 | (1) 16M x 64 |
|------------------------------------------------------------|
| Note: Board accepts SDRAM memory. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Note: 256KB/512KB cache is located on the Pentium II CPU. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| VIDEO MEMORY CONFIGURATION |
|------------------------------------------------------------|
| Note: The size & location of the video memory is |
| unidentified. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED SELECTION |
|------------------------------------------------------------|
|CPU speed| Clock |Multiplier|SW1/1|SW1/5|SW1/6|SW1/7|SW1/8|
| | speed | | | | | | |
|---------+---------+----------+-----+-----+-----+-----+-----|
| 233MHz | 66MHz | 3.5x | Off | On | Off | Off | On |
|---------+---------+----------+-----+-----+-----+-----+-----|
| 266MHz | 66MHz | 4x | Off | Off | On | On | On |
|---------+---------+----------+-----+-----+-----+-----+-----|
| 300MHz | 66MHz | 4.5x | Off | Off | On | Off | On |
|---------+---------+----------+-----+-----+-----+-----+-----|
| 333MHz | 66MHz | 5x | Off | Off | Off | On | On |
+------------------------------------------------------------+
