# ADVANCED INTEGRATION RESEARCH, INC.
P6LDX (REV. 1.0)
Device Type Mainboard
Processor Pentium II
Processor Speed 233/266/300/333MHz
Chip Set Intel
Video Chip Set None
Maximum Onboard 1GB (EDO & SDRAM supported)
Memory
Maximum Video None
Memory
Cache 256/512/1024KB (located on Pentium II CPU)
BIOS Award
Dimensions 305mm x 244mm
I/O Options 32-bit PCI slots (4), floppy drive interface,
green PC connector, IDE interfaces (2), SCSI
interface, Wide Ultra SCSI interface,
parallel port, PS/2 mouse port, serial ports
(2), IR connector, USB connectors (2), ATX
power connector, AGP slot, RAID slot
NPU Options None
IMG IMG 1
+------------------------------------------------------------+

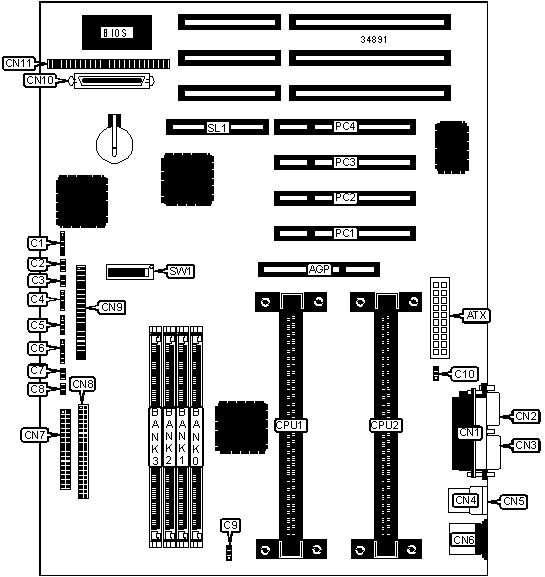

| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-------------------+----------+------------------+----------|
| AGP slot | AGP | Serial port 2 | CN2 |
|-------------------+----------+------------------+----------|
| ATX power | ATX | Serial port 1 | CN3 |
| connector | | | |
|-------------------+----------+------------------+----------|
| IR connector | C1 | USB connector 1 | CN4 |
|-------------------+----------+------------------+----------|
| Green PC | C2 | USB connector 2 | CN5 |
| connector | | | |
|-------------------+----------+------------------+----------|
| Reset switch | C3 | PS/2 mouse port | CN6 |
|-------------------+----------+------------------+----------|
| Speaker | C4 | Floppy drive | CN7 |
| | | interface | |
|-------------------+----------+------------------+----------|
| IDE interface LED | C5 | IDE interface 2 | CN8 |
|-------------------+----------+------------------+----------|
| Power LED & | C6 | IDE interface 1 | CN9 |
| keylock | | | |
|-------------------+----------+------------------+----------|
| Turbo LED | C7 | Ultra Wide SCSI | CN10 |
| | | interface | |
|-------------------+----------+------------------+----------|
| Soft off power | C8 | SCSI interface | CN11 |
| supply | | | |
|-------------------+----------+------------------+----------|
| Chassis fan power | C9 | 32-bit PCI slots | PC1 - |
| | | | PC4 |
|-------------------+----------+------------------+----------|
| Chassis fan power | C10 | RAID slot | SL1 |
|-------------------+----------+------------------+----------|
| Parallel port | CN1 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|-------------------------------------+-------+--------------|
| ยป | Factory configured - do not | SW1/7 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| | Termination enabled | SW1/8 | On |
|---+---------------------------------+-------+--------------|
| | Termination disabled | SW1/8 | Off |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIMM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 | Bank 3 |
|------+-------------+-------------+------------+------------|
| 8MB | (1) 1M x 64 | None | None | None |
|------+-------------+-------------+------------+------------|
| 16MB | (1) 2M x 64 | None | None | None |
|------+-------------+-------------+------------+------------|
| 16MB | (1) 1M x 64 | (1) 1M x 64 | None | None |
|------+-------------+-------------+------------+------------|
| 24MB | (1) 2M x 64 | (1) 1M x 64 | None | None |
|------+-------------+-------------+------------+------------|
| 24MB | (1) 1M x 64 | (1) 1M x 64 | (1) 1M x | None |
| | | | 64 | |
|------+-------------+-------------+------------+------------|
| 32MB | (1) 4M x 64 | None | None | None |
|------+-------------+-------------+------------+------------|
| 32MB | (1) 2M x 64 | (1) 2M x 64 | None | None |
|------+-------------+-------------+------------+------------|
| 32MB | (1) 1M x 64 | (1) 1M x 64 | (1) 1M x | (1) 1M x |
| | | | 64 | 64 |
|------+-------------+-------------+------------+------------|
| 40MB | (1) 4M x 64 | (1) 1M x 64 | None | None |
|------+-------------+-------------+------------+------------|
| 48MB | (1) 4M x 64 | (1) 2M x 64 | None | None |
|------+-------------+-------------+------------+------------|
| 48MB | (1) 2M x 64 | (1) 2M x 64 | (1) 2M x | None |
| | | | 64 | |
|------+-------------+-------------+------------+------------|
| 64MB | (1) 2M x 64 | (1) 2M x 64 | (1) 2M x | (1) 2M x |
| | | | 64 | 64 |
|------+-------------+-------------+------------+------------|
| 64MB | (1) 8M x 64 | None | None | None |
|------+-------------+-------------+------------+------------|
| 64MB | (1) 4M x 64 | (1) 4M x 64 | None | None |
|------+-------------+-------------+------------+------------|
| 72MB | (1) 8M x 64 | (1) 1M x 64 | None | None |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIMM CONFIGURATION (CON'T) |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 | Bank 3 |
|----------+-------------+-----------+-----------+-----------|
| 80MB | (1) 8M x 64 | (1) 2M x | None | None |
| | | 64 | | |
|----------+-------------+-----------+-----------+-----------|
| 96MB | (1) 8M x 64 | (1) 4M x | None | None |
| | | 64 | | |
|----------+-------------+-----------+-----------+-----------|
| 96MB | (1) 4M x 64 | (1) 4M x | (1) 4M x | None |
| | | 64 | 64 | |
|----------+-------------+-----------+-----------+-----------|
| 128MB | (1) 16M x | None | None | None |
| | 64 | | | |
|----------+-------------+-----------+-----------+-----------|
| 128MB | (1) 8M x 64 | (1) 8M x | None | None |
| | | 64 | | |
|----------+-------------+-----------+-----------+-----------|
| 128MB | (1) 4M x 64 | (1) 4M x | (1) 4M x | (1) 4M x |
| | | 64 | 64 | 64 |
|----------+-------------+-----------+-----------+-----------|
| 136MB | (1) 16M x | (1) 1M x | None | None |
| | 64 | 64 | | |
|----------+-------------+-----------+-----------+-----------|
| 144MB | (1) 16M x | (1) 2M x | None | None |
| | 64 | 64 | | |
|----------+-------------+-----------+-----------+-----------|
| 152MB | (1) 16M x | (1) 1M x | (1) 1M x | (1) 1M x |
| | 64 | 64 | 64 | 64 |
|----------+-------------+-----------+-----------+-----------|
| 160MB | (1) 16M x | (1) 4M x | None | None |
| | 64 | 64 | | |
|----------+-------------+-----------+-----------+-----------|
| 176MB | (1) 16M x | (1) 2M x | (1) 2M x | (1) 2M x |
| | 64 | 64 | 64 | 64 |
|----------+-------------+-----------+-----------+-----------|
| 192MB | (1) 16M x | (1) 8M x | None | None |
| | 64 | 64 | | |
|----------+-------------+-----------+-----------+-----------|
| 192MB | (1) 8M x 64 | (1) 8M x | (1) 8M x | None |
| | | 64 | 64 | |
|----------+-------------+-----------+-----------+-----------|
| 224MB | (1) 16M x | (1) 4M x | (1) 4M x | (1) 4M x |
| | 64 | 64 | 64 | 64 |
|----------+-------------+-----------+-----------+-----------|
| 256MB | (1) 32M x | None | None | None |
| | 64 | | | |
|----------+-------------+-----------+-----------+-----------|
| 256MB | (1) 16M x | (1) 16M x | None | None |
| | 64 | 64 | | |
|----------+-------------+-----------+-----------+-----------|
| 256MB | (1) 8M x 64 | (1) 8M x | (1) 8M x | (1) 8M x |
| | | 64 | 64 | 64 |
|----------+-------------+-----------+-----------+-----------|
| 272MB | (1) 16M x | (1) 16M x | (1) 1M x | (1) 1M x |
| | 64 | 64 | 64 | 64 |
|----------+-------------+-----------+-----------+-----------|
| 280MB | (1) 32M x | (1) 1M x | (1) 1M x | (1) 1M x |
| | 64 | 64 | 64 | 64 |
|----------+-------------+-----------+-----------+-----------|
| 288MB | (1) 16M x | (1) 16M x | (1) 2M x | (1) 2M x |
| | 64 | 64 | 64 | 64 |
|----------+-------------+-----------+-----------+-----------|
| 304MB | (1) 32M x | (1) 2M x | (1) 2M x | (1) 2M x |
| | 64 | 64 | 64 | 64 |
|----------+-------------+-----------+-----------+-----------|
| 320MB | (1) 16M x | (1) 16M x | (1) 4M x | (1) 4M x |
| | 64 | 64 | 64 | 64 |
|----------+-------------+-----------+-----------+-----------|
| 320MB | (1) 16M x | (1) 8M x | (1) 8M x | (1) 8M x |
| | 64 | 64 | 64 | 64 |
|----------+-------------+-----------+-----------+-----------|
| 352MB | (1) 32M x | (1) 4M x | (1) 4M x | (1) 4M x |
| | 64 | 64 | 64 | 64 |
|----------+-------------+-----------+-----------+-----------|
| 384MB | (1) 16M x | (1) 16M x | (1) 16M x | None |
| | 64 | 64 | 64 | |
|----------+-------------+-----------+-----------+-----------|
| 448MB | (1) 32M x | (1) 8M x | (1) 8M x | (1) 8M x |
| | 64 | 64 | 64 | 64 |
|----------+-------------+-----------+-----------+-----------|
| 512MB | (1) 32M x | (1) 32M x | None | None |
| | 64 | 64 | | |
|----------+-------------+-----------+-----------+-----------|
| 512MB | (1) 16M x | (1) 16M x | (1) 16M x | (1) 16M x |
| | 64 | 64 | 64 | 64 |
|----------+-------------+-----------+-----------+-----------|
| 640MB | (1) 32M x | (1) 16M x | (1) 16M x | (1) 16M x |
| | 64 | 64 | 64 | 64 |
|----------+-------------+-----------+-----------+-----------|
| 768MB | (1) 32M x | (1) 32M x | (1) 32M x | None |
| | 64 | 64 | 64 | |
|----------+-------------+-----------+-----------+-----------|
| 1024MB | (1) 32M x | (1) 32M x | (1) 32M x | (1) 32M x |
| | 64 | 64 | 64 | 64 |
|------------------------------------------------------------|
| Note: Board accepts EDO & SDRAM memory. Maximum SDRAM is |
| 512MB. Maximum EDO is 1GB. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Note: 256/512/1024KB cache is located on the Pentium II |
| CPU. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED SELECTION |
|------------------------------------------------------------|
| CPU |Clock|Multiplier|SW1/1|SW1/2|SW1/3|SW1/4|SW1/5|SW1/6|
| speed |speed| | | | | | | |
|-------+-----+----------+-----+-----+-----+-----+-----+-----|
|233MHz |66MHz| 3.5x | Off | Off | Off | Off | On | On |
|-------+-----+----------+-----+-----+-----+-----+-----+-----|
|266MHz |66MHz| 4x | Off | Off | On | On | Off | On |
|-------+-----+----------+-----+-----+-----+-----+-----+-----|
|300MHz |66MHz| 4.5x | Off | Off | Off | On | Off | On |
|-------+-----+----------+-----+-----+-----+-----+-----+-----|
|333MHz |66MHz| 5x | Off | Off | On | Off | Off | On |
+------------------------------------------------------------+
