# ALARIS, INC.
NX586
Device Type Mainboard
Processor Unidentified
Processor Speed 75/80/90MHz
Chip Set Unidentified
Video Chip Set None
Maximum Onboard Memory 192MB
Maximum Video Memory None
Cache 256KB
BIOS AMI
Dimensions 254mm x 218mm
I/O Options 32-bit VESA local bus slots (2)
NPU Options None

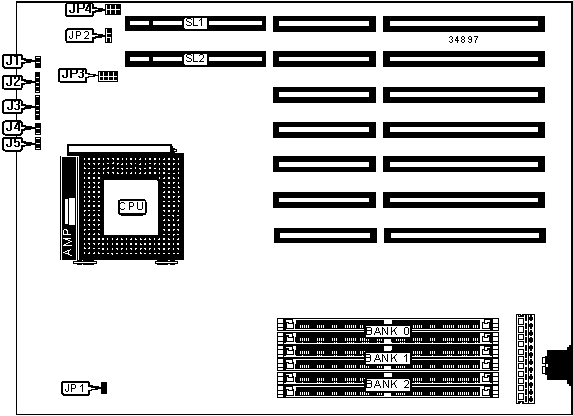

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|---------------+----------+----------------------+----------|
| Reset switch | J1 | Turbo LED | J5 |
|---------------+----------+----------------------+----------|
| Speaker | J2 | External battery | J22 |
| | | (optional) | |
|---------------+----------+----------------------+----------|
| Power LED & | J3 | 32-bit VESA local | SL1 & |
| keylock | | bus slots | SL2 |
|---------------+----------+----------------------+----------|
| Turbo switch | J4 | | |
|------------------------------------------------------------|
| Note: The location of J22 is unidentified. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|----------------------------------+----------+--------------|
| » | Factory configured - do not | JP1 | Open |
| | alter | | |
|---+------------------------------+----------+--------------|
| » | CMOS memory normal operation | JP2 | Pins 1 & 2 |
| | | | closed |
|---+------------------------------+----------+--------------|
| | CMOS memory clear | JP2 | Pins 2 & 3 |
| | | | closed |
|---+------------------------------+----------+--------------|
| » | Factory configured - do not | JP3 | Unidentified |
| | alter | | |
|---+------------------------------+----------+--------------|
| » | Factory configured - do not | JP4/pins | Closed |
| | alter (VL-bus burst support) | 5 & 6 | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SIMM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 |
|------------+---------------+---------------+---------------|
| 8MB | (2) 1M x 36 | None | None |
|------------+---------------+---------------+---------------|
| 16MB | (2) 1M x 36 | (2) 1M x 36 | None |
|------------+---------------+---------------+---------------|
| 16MB | (2) 2M x 36 | None | None |
|------------+---------------+---------------+---------------|
| 24MB | (2) 2M x 36 | (2) 1M x 36 | None |
|------------+---------------+---------------+---------------|
| 24MB | (2) 1M x 36 | (2) 1M x 36 | (2) 1M x 36 |
|------------+---------------+---------------+---------------|
| 32MB | (2) 4M x 36 | None | None |
|------------+---------------+---------------+---------------|
| 32MB | (2) 2M x 36 | (2) 2M x 36 | None |
|------------+---------------+---------------+---------------|
| 40MB | (2) 4M x 36 | (2) 1M x 36 | None |
|------------+---------------+---------------+---------------|
| 48MB | (2) 4M x 36 | (2) 2M x 36 | None |
|------------+---------------+---------------+---------------|
| 48MB | (2) 4M x 36 | (2) 1M x 36 | (2) 1M x 36 |
|------------+---------------+---------------+---------------|
| 56MB | (2) 4M x 36 | (2) 2M x 36 | (2) 1M x 36 |
|------------+---------------+---------------+---------------|
| 64MB | (2) 8M x 36 | None | None |
|------------+---------------+---------------+---------------|
| 64MB | (2) 4M x 36 | (2) 4M x 36 | None |
|------------+---------------+---------------+---------------|
| 80MB | (2) 8M x 36 | (2) 2M x 36 | None |
|------------+---------------+---------------+---------------|
| 80MB | (2) 8M x 36 | (2) 1M x 36 | (2) 1M x 36 |
|------------+---------------+---------------+---------------|
| 88MB | (2) 8M x 36 | (2) 2M x 36 | (2) 1M x 36 |
|------------+---------------+---------------+---------------|
| 96MB | (2) 8M x 36 | (2) 4M x 36 | None |
|------------+---------------+---------------+---------------|
| 96MB | (2) 4M x 36 | (2) 4M x 36 | (2) 4M x 36 |
|------------+---------------+---------------+---------------|
| 96MB | (2) 8M x 36 | (2) 2M x 36 | (2) 2M x 36 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SIMM CONFIGURATION (CON’T) |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 |
|------------+---------------+---------------+---------------|
| 104MB | (2) 8M x 36 | (2) 4M x 36 | (2) 1M x 36 |
|------------+---------------+---------------+---------------|
| 112MB | (2) 8M x 36 | (2) 4M x 36 | (2) 2M x 36 |
|------------+---------------+---------------+---------------|
| 128MB | (2) 8M x 36 | (2) 4M x 36 | (2) 4M x 36 |
|------------+---------------+---------------+---------------|
| 128MB | (2) 16M x 36 | None | None |
|------------+---------------+---------------+---------------|
| 128MB | (2) 8M x 36 | (2) 8M x 36 | None |
|------------+---------------+---------------+---------------|
| 136MB | (2) 8M x 36 | (2) 8M x 36 | (2) 1M x 36 |
|------------+---------------+---------------+---------------|
| 136MB | (2) 16M x 36 | (2) 1M x 36 | None |
|------------+---------------+---------------+---------------|
| 144MB | (2) 16M x 36 | (2) 2M x 36 | None |
|------------+---------------+---------------+---------------|
| 144MB | (2) 16M x 36 | (2) 1M x 36 | (2) 1M x 36 |
|------------+---------------+---------------+---------------|
| 152MB | (2) 16M x 36 | (2) 2M x 36 | (2) 1M x 36 |
|------------+---------------+---------------+---------------|
| 160MB | (2) 16M x 36 | (2) 4M x 36 | None |
|------------+---------------+---------------+---------------|
| 160MB | (2) 16M x 36 | (2) 2M x 36 | (2) 2M x 36 |
|------------+---------------+---------------+---------------|
| 168MB | (2) 16M x 36 | (2) 4M x 36 | (2) 1M x 36 |
|------------+---------------+---------------+---------------|
| 176MB | (2) 16M x 36 | (2) 4M x 36 | (2) 2M x 36 |
|------------+---------------+---------------+---------------|
| 192MB | (2) 16M x 36 | (2) 8M x 36 | None |
|------------+---------------+---------------+---------------|
| 192MB | (2) 16M x 36 | (2) 4M x 36 | (2) 4M x 36 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Note: 256KB cache is factory installed and is not |
| configurable. The location is unidentified. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| VL BUS SPEED SELECTION |
|------------------------------------------------------------|
| Speed | JP4/pins 1 & 2 |
|----------------------------+-------------------------------|
| » | 1 | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| VL BUS SPEED SELECTION |
|------------------------------------------------------------|
| Speed | JP4/pins 3 & 4 |
|-----------------------------+------------------------------|
| | <= 33MHz | Open |
|---+-------------------------+------------------------------|
| » | >33 MHz | Closed |
+------------------------------------------------------------+
