# AMERICAN MEGATRENDS, INC.
GOLIATH PCI QUAD
Processor Pentium Pro
Processor Speed 133/150/180/200/233/240/283/300/325MHz
Chip Set Intel
Video Chip Set None
Maximum Onboard 1GB (EDO supported)
Memory
Maximum Video None
Memory
Cache 256/512KB (located on Pentium Pro CPU)
BIOS AMI
Dimensions 333mm x 305mm
I/O Options External memory card slot, 32-bit PCI slots
(6), floppy drive interface, IDE interface,
parallel port, PS/2 mouse interface, serial
ports (2), VRM connectors (4), CPU slots (2)
NPU Options None
IMG IMG 1
+------------------------------------------------------------+

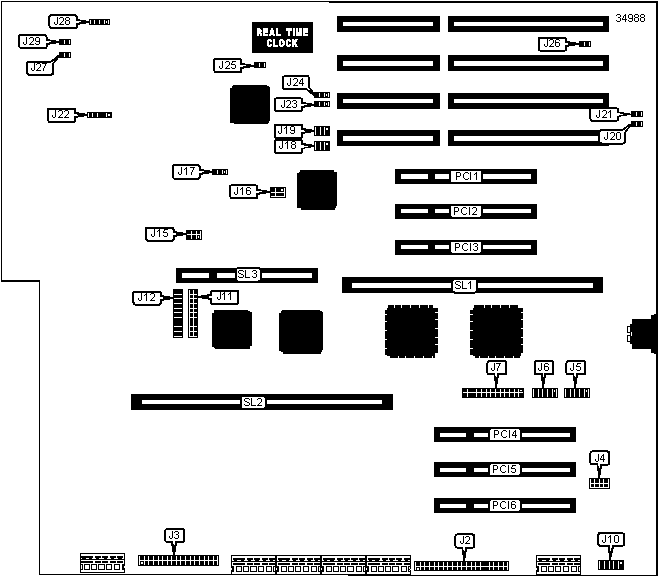

| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-------------------+----------+------------------+----------|
| IDE interface | J2 | Reset switch | J27 |
|-------------------+----------+------------------+----------|
| Floppy drive | J3 | Speaker | J28 |
| interface | | | |
|-------------------+----------+------------------+----------|
| Serial port 1 | J5 | IDE interface | J29 |
| | | LED | |
|-------------------+----------+------------------+----------|
| Serial port 2 | J6 | CPU slot | SL1 |
|-------------------+----------+------------------+----------|
| Parallel port | J7 | CPU slot | SL2 |
|-------------------+----------+------------------+----------|
| PS/2 mouse | J10 | External memory | SL3 |
| interface | | card | |
|-------------------+----------+------------------+----------|
| Power LED & | J22 | 32-bit PCI slots | PC1 - |
| keylock | | | PC6 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|-------------------------------------+-------+--------------|
| » | Factory configured - do not | J4 | Open |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | J17 | Pins 2 & 3 |
| | alter | | closed |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | J20 | Open |
| | alter | | |
|---+---------------------------------+-------+--------------|
| | IDE DREQ enabled | J21 | Closed |
|---+---------------------------------+-------+--------------|
| | IDE DREQ disabled | J21 | Open |
|---+---------------------------------+-------+--------------|
| » | Parallel port IRQ select IRQ7 | J23 | Pins 1 & 2 |
| | | | closed |
|---+---------------------------------+-------+--------------|
| | Parallel port IRQ select IRQ5 | J23 | Pins 2 & 3 |
| | | | closed |
|---+---------------------------------+-------+--------------|
| » | PS/2 mouse IRQ12 enabled | J24 | Pins 1 & 2 |
| | | | closed |
|---+---------------------------------+-------+--------------|
| | PS/2 mouse IRQ12 disabled | J24 | Pins 2 & 3 |
| | | | closed |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | J25 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | J26 | Unidentified |
| | alter | | |
+------------------------------------------------------------+
IMG IMG 2
+------------------------------------------------------------+

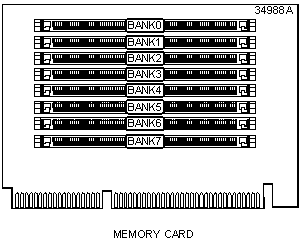

| DIMM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 | Bank 3 |
|--------+--------------+------------+-----------+-----------|
| 16MB | (1) 2M x 72 | None | None | None |
|--------+--------------+------------+-----------+-----------|
| 32MB | (1) 2M x 72 | (1) 2M x | None | None |
| | | 72 | | |
|--------+--------------+------------+-----------+-----------|
| 64MB | (1) 2M x 72 | (1) 2M x | (1) 2M x | (1) 2M x |
| | | 72 | 72 | 72 |
|--------+--------------+------------+-----------+-----------|
| 32MB | (1) 2M x 72 | None | None | None |
|--------+--------------+------------+-----------+-----------|
| 64MB | (1) 2M x 72 | (1) 2M x | None | None |
| | | 72 | | |
|--------+--------------+------------+-----------+-----------|
| 128MB | (1) 2M x 72 | (1) 2M x | (1) 2M x | (1) 2M x |
| | | 72 | 72 | 72 |
|--------+--------------+------------+-----------+-----------|
| 8MB | (1) 1M x 72 | None | None | None |
|--------+--------------+------------+-----------+-----------|
| 32MB | (1) 1M x 72 | (1) 1M x | (1) 1M x | (1) 1M x |
| | | 72 | 72 | 72 |
|--------+--------------+------------+-----------+-----------|
| 64MB | (1) 1M x 72 | (1) 1M x | (1) 1M x | (1) 1M x |
| | | 72 | 72 | 72 |
|--------+--------------+------------+-----------+-----------|
| 32MB | (1) 4M x 72 | None | None | None |
|--------+--------------+------------+-----------+-----------|
| 128MB | (1) 4M x 72 | (1) 4M x | (1) 4M x | (1) 4M x |
| | | 72 | 72 | 72 |
|--------+--------------+------------+-----------+-----------|
| 256MB | (1) 4M x 72 | (1) 4M x | (1) 4M x | (1) 4M x |
| | | 72 | 72 | 72 |
|--------+--------------+------------+-----------+-----------|
| 128MB | (1) 16M x 72 | None | None | None |
|--------+--------------+------------+-----------+-----------|
| 512MB | (1) 16M x 72 | (1) 16M x | (1) 16M x | (1) 16M x |
| | | 72 | 72 | 72 |
|--------+--------------+------------+-----------+-----------|
| 1GB | (1) 16M x 72 | (1) 16M x | (1) 16M x | (1) 16M x |
| | | 72 | 72 | 72 |
|------------------------------------------------------------|
| Note: Board accepts EDO memory. Board also accepts 8M x 72 |
| DIMMs. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIMM CONFIGURATION (CON’T) |
|------------------------------------------------------------|
| Size | Bank 4 | Bank 5 | Bank 6 | Bank 7 |
|-------+-------------+------------+------------+------------|
| 16MB | None | None | None | None |
|-------+-------------+------------+------------+------------|
| 32MB | None | None | None | None |
|-------+-------------+------------+------------+------------|
| 64MB | None | None | None | None |
|-------+-------------+------------+------------+------------|
| 32MB | (1) 2M x 72 | None | None | None |
|-------+-------------+------------+------------+------------|
| 64MB | (1) 2M x 72 | (1) 2M x | None | None |
| | | 72 | | |
|-------+-------------+------------+------------+------------|
| 128MB | (1) 2M x 72 | (1) 2M x | (1) 2M x | (1) 2M x |
| | | 72 | 72 | 72 |
|-------+-------------+------------+------------+------------|
| 8MB | None | None | None | None |
|-------+-------------+------------+------------+------------|
| 32MB | None | None | None | None |
|-------+-------------+------------+------------+------------|
| 64MB | (1) 1M x 72 | (1) 1M x | (1) 1M x | (1) 1M x |
| | | 72 | 72 | 72 |
|-------+-------------+------------+------------+------------|
| 32MB | None | None | None | None |
|-------+-------------+------------+------------+------------|
| 128MB | None | None | None | None |
|-------+-------------+------------+------------+------------|
| 256MB | (1) 4M x 72 | (1) 4M x | (1) 4M x | (1) 4M x |
| | | 72 | 72 | 72 |
|-------+-------------+------------+------------+------------|
| 128MB | None | None | None | None |
|-------+-------------+------------+------------+------------|
| 512MB | None | None | None | None |
|-------+-------------+------------+------------+------------|
| 1GB | (1) 16M x | (1) 16M x | (1) 16M x | (1) 16M x |
| | 72 | 72 | 72 | 72 |
|------------------------------------------------------------|
| Note: Board accepts EDO memory. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIMM VOLTAGE CONFIGURATION |
|------------------------------------------------------------|
| Voltage | J11 | J12 |
|---------+-------------------------------------------+------|
| 3.3v | 1 & 2, 3 & 4, 5 & 6, 7 & 8, 9 & 10, 11 & | Open |
| | 12, 13 & 14, 15 & 16, 17 & 18, 19 & 20 | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Note: 256KB/512KB cache is located on the Pentium Pro CPU. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED SELECTION |
|------------------------------------------------------------|
| CPU speed | Clock | J15 | J190 |
| | speed | | |
|--------------+----------+-----------------+----------------|
| 133MHz | 66MHz | 1 & 2, 3 & 4, 5 | 1 & 2, 3 & 4, |
| | | & 6, 7 & 8 | 5 & 6, 7 & 8 |
|--------------+----------+-----------------+----------------|
| 150MHz | 60MHz | 1 & 2, 3 & 4, 7 | 1 & 2, 3 & 4, |
| | | & 8 | 7 & 8 |
|--------------+----------+-----------------+----------------|
| 180MHz | 60MHz | 1 & 2, 3 & 4, 5 | 1 & 2, 3 & 4, |
| | | & 6 | 5 & 6 |
|--------------+----------+-----------------+----------------|
| 200MHz | 66MHz | 1 & 2, 3 & 4, 5 | 1 & 2, 3 & 4, |
| | | & 6 | 5 & 6 |
|--------------+----------+-----------------+----------------|
| 233MHz | 66MHz | 1 & 2, 3 & 4 | 1 & 2, 3 & 4 |
|--------------+----------+-----------------+----------------|
| 240MHz | 60MHz | 3 & 4, 5 & 6, 7 | 3 & 4, 5 & 6, |
| | | & 8 | 7 & 8 |
|--------------+----------+-----------------+----------------|
| 283MHz | 66MHz | 3 & 4, 7 & 8 | 3 & 4, 7 & 8 |
|--------------+----------+-----------------+----------------|
| 300MHz | 60MHz | 3 & 4, 5 & 6 | 3 & 4, 5 & 6 |
|--------------+----------+-----------------+----------------|
| 325MHz | 60MHz | 3 & 4 | 3 & 4 |
|------------------------------------------------------------|
| Note: Pins designated should be in the closed position. |
| The location of J190 is unidentified. J15 sets CPU card 1 |
| and J190 sets CPU card 2. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| PCI SPEED SELECTION |
|------------------------------------------------------------|
| CPU speed | External | Internal | J16 |
|-----------+----------+----------+--------------------------|
| 150MHz | 60MHz | 30MHz | Pins 1 & 2, 5 & 6 closed |
|-----------+----------+----------+--------------------------|
| 180MHz | 60MHz | 30MHz | Pins 1 & 2, 5 & 6 closed |
|-----------+----------+----------+--------------------------|
| 200MHz | 66MHz | 33MHz | Pins 3 & 4 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DMA CHANNEL SELECTION |
|------------------------------------------------------------|
| Channel | J18 | J19 |
|------------------+--------------------+--------------------|
| » | None | Open | Open |
|---+--------------+--------------------+--------------------|
| | 0 | Pins 1 & 2 closed | Pins 1 & 2 closed |
|---+--------------+--------------------+--------------------|
| | 1 | Pins 3 & 4 closed | Pins 3 & 4 closed |
|---+--------------+--------------------+--------------------|
| | 3 | Pins 5 & 6 closed | Pins 5 & 6 closed |
+------------------------------------------------------------+
IMG IMG 3
+------------------------------------------------------------+

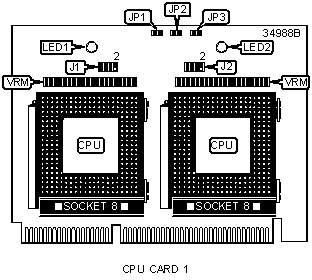

| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|------------------+----------+-------------------+----------|
| Overheat LED | LED1 | Chassis fan power | JP2 |
|------------------+----------+-------------------+----------|
| Overheat LED | LED2 | VRM connectors | VRM |
|------------------+----------+-------------------+----------|
| Chassis fan | JP1 | | |
| power | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|---------------------------------------+--------+-----------|
| » | Factory configured - do not alter | JP3 | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU VOLTAGE SELECTION |
|------------------------------------------------------------|
| Voltage | J1 | J2 |
|---------+-------------------------+------------------------|
| 3.3v | Pins 1 & 2, 5 & 6, 7 & | Pins 1 & 2, 5 & 6, 7 & |
| | 8 closed | 8 closed |
+------------------------------------------------------------+
IMG IMG 4
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|------------------+----------+-------------------+----------|
| Overheat LED | LED1 | Chassis fan power | JP2 |
|------------------+----------+-------------------+----------|
| Overheat LED | LED2 | VRM connectors | VRM |
|------------------+----------+-------------------+----------|
| Chassis fan | JP1 | | |
| power | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU VOLTAGE SELECTION |
|------------------------------------------------------------|
| Voltage | J1 | J2 |
|---------+-------------------------+------------------------|
| 3.3v | Pins 1 & 2, 5 & 6, 7 & | Pins 1 & 2, 5 & 6, 7 & |
| | 8 closed | 8 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MISCELLANEOUS TECHNICAL NOTES. |
|------------------------------------------------------------|
| Note: The LEDs on CPU Card 1 and CPU Card2 are ‘overheat’ |
| indicators. If any of these LEDs come on on either card, |
| turn computer off as soon as possible to prevent damage. |
| |
| Note: If installing CPU card 1 only, insert the terminator |
| card in CPU socket 2. Do not use CPU card 2 only |
+------------------------------------------------------------+
