# BIOSTAR MICROTECH INTERNATIONAL CORPORATION
M5TTB
Device Type Mainboard
Processor CX 6X86/CX 6X86L/CX 686MX/AM K5/AM
K6/Pentium/Pentium MMX
Processor Speed 90/100/120/133/150/166/200/233/266MHz
Chip Set Intel
Video Chip Set None
Maximum Onboard 256MB (EDO & SDRAM supported)
Memory
Maximum Video None
Memory
Cache 256/512KB
BIOS Award
Dimensions 305mm x 190mm
I/O Options 32-bit PCI slots (5), floppy drive interface,
green PC connector, IDE interfaces (2),
parallel port, PS/2 mouse port, serial ports
(2), IR connector, USB connector, ATX power
connector
NPU Options None

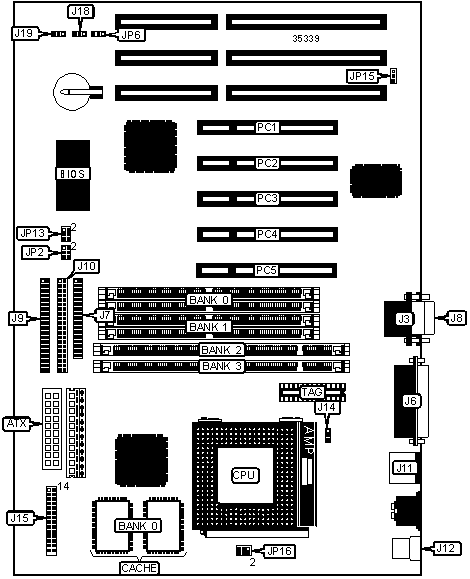

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-----------------+----------+-------------------+-----------|
| ATX power | ATX | Speaker | J15/pins |
| connector | | | 1 - 4 |
|-----------------+----------+-------------------+-----------|
| Serial port 2 | J3 | Power LED & | J15/pins |
| | | keylock | 5 - 9 |
|-----------------+----------+-------------------+-----------|
| Parallel port | J6 | Soft off power | J15/pins |
| | | supply | 10 & 11 |
|-----------------+----------+-------------------+-----------|
| Floppy drive | J7 | Reset switch | J15/pins |
| interface | | | 12 & 13 |
|-----------------+----------+-------------------+-----------|
| Serial port 1 | J8 | Green PC | J15/pins |
| | | connector | 17 & 18 |
|-----------------+----------+-------------------+-----------|
| IDE interface 1 | J9 | IDE interface LED | J15/pins |
| | | | 20 & 21 |
|-----------------+----------+-------------------+-----------|
| IDE interface 2 | J10 | IR connector | J15/pins |
| | | | 22 - 26 |
|-----------------+----------+-------------------+-----------|
| PS/2 mouse port | J11 | Wake on LAN | J18 |
| | | connector | |
|-----------------+----------+-------------------+-----------|
| USB connector | J12 | Wake on modem | J19 |
| | | connector | |
|-----------------+----------+-------------------+-----------|
| CPU fan power | J14 | 32-bit PCI slots | PC1 - PC5 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|----------------------------------+-------+-----------------|
| ยป | CMOS memory normal operation | JP6 | Pins 1 & 2 |
| | | | closed |
|---+------------------------------+-------+-----------------|
| | CMOS memory clear | JP6 | Pins 2 & 3 |
| | | | closed |
|---+------------------------------+-------+-----------------|
| | On board battery disabled | JP6 | Open |
|---+------------------------------+-------+-----------------|
| | Ring in COM select COM1/3 | JP15 | Pins 1 & 2 |
| | | | closed |
|---+------------------------------+-------+-----------------|
| | Ring in COM select COM 2/4 | JP15 | Pins 2 & 3 |
| | | | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SIMM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 8MB | (2) 1M x 36 | None |
|------------------+--------------------+--------------------|
| 16MB | (2) 2M x 36 | None |
|------------------+--------------------+--------------------|
| 16MB | (2) 1M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 24MB | (2) 2M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 32MB | (2) 4M x 36 | None |
|------------------+--------------------+--------------------|
| 32MB | (2) 2M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 40MB | (2) 4M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 48MB | (2) 4M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 64MB | (2) 8M x 36 | None |
|------------------+--------------------+--------------------|
| 64MB | (2) 4M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 72MB | (2) 8M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 80MB | (2) 8M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 96MB | (2) 8M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 128MB | (2) 8M x 36 | (2) 8M x 36 |
|------------------+--------------------+--------------------|
| 128MB | (2) 16M x 36 | None |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SIMM CONFIGURATION (CON'T) |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 136MB | (2) 16M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 144MB | (2) 16M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 160MB | (2) 16M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 192MB | (2) 16M x 36 | (2) 8M x 36 |
|------------------+--------------------+--------------------|
| 256MB | (2) 16M x 36 | (2) 16M x 36 |
|------------------------------------------------------------|
| Note: Board accepts EDO memory. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIMM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 2 | Bank 3 |
|------------------+--------------------+--------------------|
| 8MB | (1) 1M x 64 | None |
|------------------+--------------------+--------------------|
| 16MB | (1) 2M x 64 | None |
|------------------+--------------------+--------------------|
| 16MB | (1) 1M x 64 | (1) 1M x 64 |
|------------------+--------------------+--------------------|
| 24MB | (1) 2M x 64 | (1) 1M x 64 |
|------------------+--------------------+--------------------|
| 32MB | (1) 4M x 64 | None |
|------------------+--------------------+--------------------|
| 32MB | (1) 2M x 64 | (1) 2M x 64 |
|------------------+--------------------+--------------------|
| 40MB | (1) 4M x 64 | (1) 1M x 64 |
|------------------+--------------------+--------------------|
| 48MB | (1) 4M x 64 | (1) 2M x 64 |
|------------------+--------------------+--------------------|
| 64MB | (1) 8M x 64 | None |
|------------------+--------------------+--------------------|
| 64MB | (1) 4M x 64 | (1) 4M x 64 |
|------------------+--------------------+--------------------|
| 72MB | (1) 8M x 64 | (1) 1M x 64 |
|------------------+--------------------+--------------------|
| 80MB | (1) 8M x 64 | (1) 2M x 64 |
|------------------+--------------------+--------------------|
| 96MB | (1) 8M x 64 | (1) 4M x 64 |
|------------------+--------------------+--------------------|
| 128MB | (1) 16M x 64 | None |
|------------------+--------------------+--------------------|
| 128MB | (1) 8M x 64 | (1) 8M x 64 |
|------------------+--------------------+--------------------|
| 136MB | (1) 16M x 64 | (1) 1M x 64 |
|------------------+--------------------+--------------------|
| 144MB | (1) 16M x 64 | (1) 2M x 64 |
|------------------+--------------------+--------------------|
| 160MB | (1) 16M x 64 | (1) 4M x 64 |
|------------------+--------------------+--------------------|
| 192MB | (1) 16M x 64 | (1) 8M x 64 |
|------------------+--------------------+--------------------|
| 256MB | (1) 16M x 64 | (1) 16M x 64 |
|------------------------------------------------------------|
| Note: Board accepts SDRAM memory. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | TAG |
|------------------+--------------------+--------------------|
| 256KB | (2) 32K x 32 | Unidentified |
|------------------+--------------------+--------------------|
| 512KB | (2) 64K x 32 | Unidentified |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED SELECTION (CX 6X86) |
|------------------------------------------------------------|
| CPU speed | Clock speed | Multiplier | JP2 | JP13 |
|-----------+-------------+------------+-------------+-------|
| 150MHz | 60MHz | 2x | 3 & 4, 5 & | 1 & 2 |
| | | | 6 | |
|-----------+-------------+------------+-------------+-------|
| 166MHz | 66MHz | 2x | 1 & 2, 5 & | 1 & 2 |
| | | | 6 | |
|-----------+-------------+------------+-------------+-------|
| 200MHz | 75MHz | 2x | 3 & 4 | 1 & 2 |
|------------------------------------------------------------|
| Note: Pins designated should be in the closed position. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED SELECTION (CX 6X86L) |
|------------------------------------------------------------|
| CPU speed | Clock speed | Multiplier | JP2 | JP13 |
|-----------+-------------+------------+-------------+-------|
| 150MHz | 60MHz | 2x | 3 & 4, 5 & | 1 & 2 |
| | | | 6 | |
|-----------+-------------+------------+-------------+-------|
| 166MHz | 66MHz | 2x | 1 & 2, 5 & | 1 & 2 |
| | | | 6 | |
|-----------+-------------+------------+-------------+-------|
| 200MHz | 75MHz | 2x | 3 & 4 | 1 & 2 |
|------------------------------------------------------------|
| Note: Pins designated should be in the closed position. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED SELECTION (CX 6X86MX) |
|------------------------------------------------------------|
| CPU speed | Clock | Multiplier | JP2 | JP13 |
| | speed | | | |
|------------+---------+------------+-------------+----------|
| 150MHz | 60MHz | 2x | 3 & 4, 5 & | 1 & 2 |
| | | | 6 | |
|------------+---------+------------+-------------+----------|
| 166MHz | 66MHz | 2x | 1 & 2, 5 & | 1 & 2 |
| | | | 6 | |
|------------+---------+------------+-------------+----------|
| 166MHz | 60MHz | 2.5x | 3 & 4, 5 & | 1 & 2, 3 |
| | | | 6 | & 4 |
|------------+---------+------------+-------------+----------|
| 200MHz | 75MHz | 2x | 3 & 4 | 1 & 2 |
|------------+---------+------------+-------------+----------|
| 200MHz | 66MHz | 2.5x | 1 & 2, 5 & | 1 & 2, 3 |
| | | | 6 | & 4 |
|------------+---------+------------+-------------+----------|
| 200MHz | 60MHz | 3x | 3 & 4, 5 & | 3 & 4 |
| | | | 6 | |
|------------+---------+------------+-------------+----------|
| 233MHz | 75MHz | 2.5x | 3 & 4 | 1 & 2, 3 |
| | | | | & 4 |
|------------+---------+------------+-------------+----------|
| 266MHz | 66MHz | 3.5x | 1 & 2, 5 & | Open |
| | | | 6 | |
|------------+---------+------------+-------------+----------|
| 266MHz | 75MHz | 3x | 3 & 4 | 3 & 4 |
|------------------------------------------------------------|
| Note: Pins designated should be in the closed position. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED SELECTION (AM K5) |
|------------------------------------------------------------|
| CPU speed | Clock | Multiplier | JP2 | JP13 |
| | speed | | | |
|------------+---------+------------+-------------+----------|
| 90MHz | 60MHz | 1.5x | 3 & 4, 5 & | Open |
| | | | 6 | |
|------------+---------+------------+-------------+----------|
| 100MHz | 66MHz | 1.5x | 1 & 2, 5 & | Open |
| | | | 6 | |
|------------+---------+------------+-------------+----------|
| 120MHz | 60MHz | 2x | 3 & 4, 5 & | 1 & 2 |
| | | | 6 | |
|------------+---------+------------+-------------+----------|
| 133MHz | 66MHz | 2x | 1 & 2, 5 & | 1 & 2 |
| | | | 6 | |
|------------+---------+------------+-------------+----------|
| 166MHz | 66MHz | 2.5x | 1 & 2, 5 & | 1 & 2, 3 |
| | | | 6 | & 4 |
|------------+---------+------------+-------------+----------|
| 200MHz | 66MHz | 3x | 1 & 2, 5 & | 3 & 4 |
| | | | 6 | |
|------------------------------------------------------------|
| Note: Pins designated should be in the closed position. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED SELECTION (AM K6) |
|------------------------------------------------------------|
| CPU speed | Clock | Multiplier | JP2 | JP13 |
| | speed | | | |
|------------+---------+------------+-------------+----------|
| 166MHz | 66MHz | 2.5x | 1 & 2, 5 & | 1 & 2, 3 |
| | | | 6 | & 4 |
|------------+---------+------------+-------------+----------|
| 200MHz | 66MHz | 3x | 1 & 2, 5 & | 3 & 4 |
| | | | 6 | |
|------------+---------+------------+-------------+----------|
| 233MHz | 66MHz | 3.5x | 1 & 2, 5 & | Open |
| | | | 6 | |
|------------------------------------------------------------|
| Note: Pins designated should be in the closed position. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED SELECTION (INTEL) |
|------------------------------------------------------------|
| CPU speed | Clock | Multiplier | JP2 | JP13 |
| | speed | | | |
|------------+---------+------------+-------------+----------|
| 90MHz | 60MHz | 1.5x | 3 & 4, 5 & | Open |
| | | | 6 | |
|------------+---------+------------+-------------+----------|
| 100MHz | 66MHz | 1.5x | 1 & 2, 5 & | Open |
| | | | 6 | |
|------------+---------+------------+-------------+----------|
| 120MHz | 60MHz | 2x | 3 & 4, 5 & | 1 & 2 |
| | | | 6 | |
|------------+---------+------------+-------------+----------|
| 133MHz | 66MHz | 2x | 1 & 2, 5 & | 1 & 2 |
| | | | 6 | |
|------------+---------+------------+-------------+----------|
| 150MHz | 60MHz | 2.5x | 3 & 4, 5 & | 1 & 2, 3 |
| | | | 6 | & 4 |
|------------+---------+------------+-------------+----------|
| 166MHz | 66MHz | 2.5x | 1 & 2, 5 & | 1 & 2, 3 |
| | | | 6 | & 4 |
|------------+---------+------------+-------------+----------|
| 200MHz | 66MHz | 3x | 1 & 2, 5 & | 3 & 4 |
| | | | 6 | |
|------------------------------------------------------------|
| Note: Pins designated should be in the closed position. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED SELECTION (INTEL MMX) |
|------------------------------------------------------------|
| CPU speed | Clock | Multiplier | JP2 | JP13 |
| | speed | | | |
|------------+---------+------------+-------------+----------|
| 166MHz | 66MHz | 2.5x | 1 & 2, 5 & | 1 & 2, 3 |
| | | | 6 | & 4 |
|------------+---------+------------+-------------+----------|
| 200MHz | 66MHz | 3x | 1 & 2, 5 & | 3 & 4 |
| | | | 6 | |
|------------+---------+------------+-------------+----------|
| 233MHz | 66MHz | 3.5x | 1 & 2, 5 & | Open |
| | | | 6 | |
|------------------------------------------------------------|
| Note: Pins designated should be in the closed position. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU VOLTAGE SELECTION (SINGLE) |
|------------------------------------------------------------|
| Voltage | JP16 |
|----------------------------+-------------------------------|
| 3.3v | Pins 1 & 2, 3 & 4 closed |
|----------------------------+-------------------------------|
| 3.5v | Open |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU VOLTAGE SELECTION (DUAL) |
|------------------------------------------------------------|
| Voltage | V core | JP16 |
|-----------------+---------------+--------------------------|
| 3.3v | 2.1v | Pins 5 & 6 closed |
|-----------------+---------------+--------------------------|
| 3.3v | 2.2v | Pins 1 & 2, 5 & 6 closed |
|-----------------+---------------+--------------------------|
| 3.3v | 2.8v | Open |
|-----------------+---------------+--------------------------|
| 3.3v | 2.9v | Pins 1 & 2 closed |
|-----------------+---------------+--------------------------|
| 3.3v | 3.2v | Pins 3 & 4 closed |
+------------------------------------------------------------+
