# AMPTRON INTERNATIONAL, INC.
PM-9700
Device Type Mainboard
Processor CX 6X86/IBM 6X86/CX 6X86L/IBM 6X86L/CX
686MX/IBM 6X86MX/
IDT C6/AM K5/AM K6/Pentium/Pentium MMX
Processor Speed 90/100/120/133/150/166/180/200/233/266MHz
Chip Set TX Pro
Maximum Onboard 640MB (EDO & SDRAM supported)
Memory
Cache 1024KB
BIOS AMI
Dimensions 254mm x 218mm
I/O Options 32-bit PCI slots (3), floppy drive interface,
sound/game interface, IDE interfaces (2),
parallel port, PS/2 mouse port, PS/2 mouse
interface, serial ports (2), ATX power
connector, AGP slot, line in, line out,
microphone in, audio in - CD-ROMs (2), wake
on LAN connector

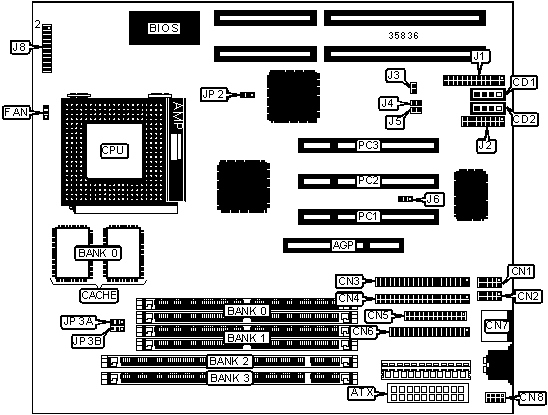

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-----------------+----------+------------------+------------|
| AGP slot | AGP | Sound/game | J1 |
| | | interface | |
|-----------------+----------+------------------+------------|
| ATX power | ATX | ATX form card | J2 |
| connector | | connector | |
|-----------------+----------+------------------+------------|
| Audio in - | CD1 | Microphone | J3 |
| CD-ROM | | connector | |
|-----------------+----------+------------------+------------|
| Audio in - | CD2 | Digital audio in | J4 |
| CD-ROM | | | |
|-----------------+----------+------------------+------------|
| Serial port 1 | CN1 | Digital audio | J5 |
| | | out | |
|-----------------+----------+------------------+------------|
| Serial port 2 | CN2 | Wake on LAN | J6 |
| | | connector | |
|-----------------+----------+------------------+------------|
| IDE interface 2 | CN3 | Speaker | J8/pins |
| | | | 1/3/5/7/9 |
|-----------------+----------+------------------+------------|
| IDE interface 1 | CN4 | Power LED & | J8/pins |
| | | keylock | 2/4/6/8 |
|-----------------+----------+------------------+------------|
| Parallel port | CN5 | Turbo LED | J8/pins 13 |
| | | | & 14 |
|-----------------+----------+------------------+------------|
| Floppy drive | CN6 | IDE interface | J8/pins 15 |
| interface | | LED | & 16 |
|-----------------+----------+------------------+------------|
| PS/2 mouse port | CN7 | Reset switch | J8/pins 17 |
| | | | & 18 |
|-----------------+----------+------------------+------------|
| PS/2 mouse | CN8 | Soft off power | J8/pins 19 |
| interface | | supply | & 20 |
|-----------------+----------+------------------+------------|
| Chassis fan | FAN | 32-bit PCI slots | PC1 - PC3 |
| power | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|----------------------------------+-------+-----------------|
| » | CMOS memory normal operation | JP2 | Pins 1 & 2 |
| | | | closed |
|---+------------------------------+-------+-----------------|
| | CMOS memory clear | JP2 | Pins 2 & 3 |
| | | | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SIMM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 8MB | (2) 1M x 36 | None |
|------------------+--------------------+--------------------|
| 16MB | (2) 2M x 36 | None |
|------------------+--------------------+--------------------|
| 16MB | (2) 1M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 24MB | (2) 2M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 32MB | (2) 4M x 36 | None |
|------------------+--------------------+--------------------|
| 32MB | (2) 2M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 40MB | (2) 4M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 48MB | (2) 4M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 64MB | (2) 8M x 36 | None |
|------------------+--------------------+--------------------|
| 64MB | (2) 4M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 72MB | (2) 8M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 80MB | (2) 8M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 96MB | (2) 8M x 36 | (2) 4M x 36 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SIMM CONFIGURATION (CON'T) |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 128MB | (2) 8M x 36 | (2) 8M x 36 |
|------------------+--------------------+--------------------|
| 128MB | (2) 16M x 36 | None |
|------------------+--------------------+--------------------|
| 136MB | (2) 16M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 144MB | (2) 16M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 160MB | (2) 16M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 192MB | (2) 16M x 36 | (2) 8M x 36 |
|------------------+--------------------+--------------------|
| 256MB | (2) 16M x 36 | (2) 16M x 36 |
|------------------+--------------------+--------------------|
| 256MB | (2) 32M x 36 | None |
|------------------+--------------------+--------------------|
| 264MB | (2) 32M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 272MB | (2) 32M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 288MB | (2) 32M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 320MB | (2) 32M x 36 | (2) 8M x 36 |
|------------------+--------------------+--------------------|
| 384MB | (2) 32M x 36 | (2) 16M x 36 |
|------------------+--------------------+--------------------|
| 512MB | (2) 32M x 36 | (2) 32M x 36 |
|------------------------------------------------------------|
| Note: Board accepts EDO memory. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIMM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 2 | Bank 3 |
|------------------+--------------------+--------------------|
| 64MB | (1) 8M x 64 | None |
|------------------+--------------------+--------------------|
| 64MB | (1) 4M x 64 | (1) 4M x 64 |
|------------------+--------------------+--------------------|
| 96MB | (1) 8M x 64 | (1) 4M x 64 |
|------------------+--------------------+--------------------|
| 128MB | (1) 16M x 64 | None |
|------------------+--------------------+--------------------|
| 128MB | (1) 8M x 64 | (1) 8M x 64 |
|------------------+--------------------+--------------------|
| 160MB | (1) 16M x 64 | (1) 4M x 64 |
|------------------+--------------------+--------------------|
| 192MB | (1) 16M x 64 | (1) 8M x 64 |
|------------------+--------------------+--------------------|
| 256MB | (1) 16M x 64 | (1) 16M x 64 |
|------------------------------------------------------------|
| Note: Board accepts SDRAM memory. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIMM VOLTAGE CONFIGURATION |
|------------------------------------------------------------|
| Voltage | JP3A | JP3B |
|------------------+--------------------+--------------------|
| » | 3.3v | Pins 2 & 3 closed | Pins 2 & 3 closed |
|---+--------------+--------------------+--------------------|
| | 5v | Pins 1 & 2 closed | Pins 1 & 2 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 |
|----------------------------+-------------------------------|
| 512KB | (2) 128K x 32 |
+------------------------------------------------------------+
