# AAEON TECHNOLOGY, INC.
SBC-456E
Device Type Single board computer
Processor AM DX5
Processor Speed 133MHz
Chip Set ALI M1487
Video Chip Set Chips and Technology
Maximum Onboard 64MB (EDO supported)
Memory
Maximum Video 2MB
Memory
Cache 128KB
BIOS AMI
Dimensions 185mm x 122mm
I/O Options Ethernet connector, floppy drive interface,
IDE interface, parallel port, PS/2 mouse
port, serial ports (2), VGA port, IR
connector, PC/104 connectors (2)

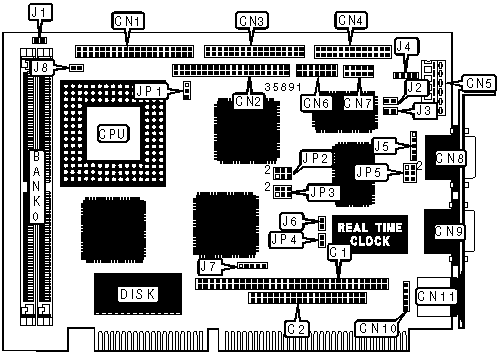

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-------------------+----------+------------------+----------|
| PC/104 connector | C1 | Auxiliary | CN10 |
| | | keyboard | |
| | | connector | |
|-------------------+----------+------------------+----------|
| PC/104 connector | C2 | PS/2 mouse port | CN11 |
|-------------------+----------+------------------+----------|
| IDE interface | CN1 | IDE interface | J1 |
| | | LED | |
|-------------------+----------+------------------+----------|
| LCD connector | CN2 | Ethernet link | J2 |
| | | signal LED | |
|-------------------+----------+------------------+----------|
| Floppy drive | CN3 | Ethernet active | J3 |
| interface | | signal LED | |
|-------------------+----------+------------------+----------|
| Parallel port | CN4 | Speaker | J4 |
|-------------------+----------+------------------+----------|
| 5v power | CN5 | IR connector | J5 |
|-------------------+----------+------------------+----------|
| Serial port | CN6 | Power LED & | J7 |
| | | keylock | |
|-------------------+----------+------------------+----------|
| Ethernet | CN7 | Chassis fan | J8 |
| connector | | power | |
|-------------------+----------+------------------+----------|
| Serial port | CN8 | Reset switch | JP4 |
|-------------------+----------+------------------+----------|
| VGA port | CN9 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|----------------------------------+-------+-----------------|
| » | CMOS memory normal operation | J6 | Open |
|---+------------------------------+-------+-----------------|
| | CMOS memory clear | J6 | Closed |
|---+------------------------------+-------+-----------------|
| » | SHF CLK from C & T chipset | JP1 | Pins 2 & 3 |
| | | | closed |
|---+------------------------------+-------+-----------------|
| | ASHF CLK from C & T chipset | JP1 | Pins 1 & 2 |
| | | | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SIMM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 |
|----------------------------+-------------------------------|
| 8MB | (2) 1M x 36 |
|----------------------------+-------------------------------|
| 16MB | (2) 2M x 36 |
|----------------------------+-------------------------------|
| 32MB | (2) 4M x 36 |
|----------------------------+-------------------------------|
| 64MB | (2) 8M x 36 |
|------------------------------------------------------------|
| Note: Board accepts EDO memory. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Note: The location of the cache is unidentified. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| VIDEO MEMORY CONFIGURATION |
|------------------------------------------------------------|
| Note: The location of the video memory is unidentified. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SERIAL PORT SELECTION |
|------------------------------------------------------------|
| Type | JP5 |
|----------------------------+-------------------------------|
| » | RS-232 | Pins 1 & 2 closed |
|---+------------------------+-------------------------------|
| | RS-422 | Pins 3 & 4 closed |
|---+------------------------+-------------------------------|
| | RS-485 | Pins 5 & 6 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| LCD VOLTAGE SELECTION |
|------------------------------------------------------------|
| Voltage | JP2 |
|----------------------------+-------------------------------|
| | 3.3v | Pins 1 & 3, 2 & 4 closed |
|---+------------------------+-------------------------------|
| » | 5v | Pins 3 & 5, 4 & 6 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DISK ADDRESS SELECTION |
|------------------------------------------------------------|
| Address | JP3 |
|----------------------------+-------------------------------|
| CC00 | Open |
|----------------------------+-------------------------------|
| D000 | Pins 1 & 2 closed |
|----------------------------+-------------------------------|
| D400 | Pins 3 & 4 closed |
|----------------------------+-------------------------------|
| D800 | Pins 1 & 2, 3 & 4 closed |
|----------------------------+-------------------------------|
| DC00 | Pins 5 & 6 closed |
+------------------------------------------------------------+
