# AAEON TECHNOLOGY, INC.
SBC-411
Device Type Single board computer
Processor AM DX-5
Processor Speed 133MHz
Chip Set ALI M1489
Maximum Onboard 32MB (EDO supported)
Memory
Cache 128KB
BIOS AMI
Dimensions 185mm x 122mm
I/O Options Floppy drive interface, IDE interface,
parallel port, serial ports (2), PC/104
connectors (2)

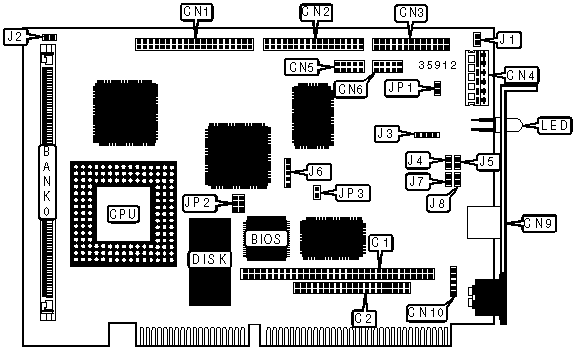

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|------------------+----------+-------------------+----------|
| PC/104 connector | C1 | Auxilliary | CN10 |
| | | keyboard | |
| | | connector | |
|------------------+----------+-------------------+----------|
| PC/104 connector | C2 | Power LED | J1 |
|------------------+----------+-------------------+----------|
| IDE interface | CN1 | IDE interface LED | J2 |
|------------------+----------+-------------------+----------|
| Floppy drive | CN2 | Speaker | J3 |
| interface | | | |
|------------------+----------+-------------------+----------|
| Parallel port | CN3 | LED_RX PCI | J4 |
|------------------+----------+-------------------+----------|
| 3.3v power | CN4 | LED_LINK PCI | J5 |
|------------------+----------+-------------------+----------|
| Serial port 1 | CN5 | Power LED & | J6 |
| | | keylock | |
|------------------+----------+-------------------+----------|
| Serial port 2 | CN6 | LED_LINK ISA | J7 |
|------------------+----------+-------------------+----------|
| Ethernet 10BaseT | CN8 | LED_RX ISA | J8 |
| connector | | | |
|------------------+----------+-------------------+----------|
| DC_JACK | CN9 | Reset switch | JP1 |
| connector | | | |
|------------------------------------------------------------|
| Note: The location of CN8 is unidentifed. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|-------------------------------------+---------+------------|
| ยป | CMOS memory normal operation | JP3 | Open |
|---+---------------------------------+---------+------------|
| | CMOS memory clear | JP3 | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SIMM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 |
|----------------------------+-------------------------------|
| 4MB | (2) 1M x 36 |
|----------------------------+-------------------------------|
| 8MB | (2) 2M x 36 |
|----------------------------+-------------------------------|
| 16MB | (2) 4M x 36 |
|----------------------------+-------------------------------|
| 32MB | (2) 8M x 36 |
|------------------------------------------------------------|
| Note: Board accepts EDO memory. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DISK ADDRESS SELECTION |
|------------------------------------------------------------|
| Address | JP2 |
|----------------------------+-------------------------------|
| CC00 | Open |
|----------------------------+-------------------------------|
| D000 | Pins 1 & 2 closed |
|----------------------------+-------------------------------|
| D400 | Pins 3 & 4 closed |
|----------------------------+-------------------------------|
| D800 | Pins 1 & 2, 3 & 4 closed |
|----------------------------+-------------------------------|
| DC00 | Pins 5 & 6 closed |
+------------------------------------------------------------+
