# ACER, INC.
ACERALTOS 700ED (M5), 700ES (M5), 7000P (M5), 7000V (M5), (M5)
Device Mainboard
Type
Processor 80486DX2/80486DX4/Pentium
Processor 33/50(internal)/66(internal)/100(internal)/90/100MHz
Speed
Chip Set Unidentified
Maximum 512MB
Onboard
Memory
Cache 256KB
BIOS Acer
Dimensions 330mm x 218mm
I/O 32-bit PCI slots (3), floppy drive interface, IDE
Options interfaces (2), SCSI interface, parallel port, PS/2
mouse port, serial ports (2), CPU slot
IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-------------------+----------+------------------+----------|
| Chassis fan power | C1 | IDE interface | CN7 |
|-------------------+----------+------------------+----------|
| Chassis fan power | C2 | IDE interface | CN8 |
|-------------------+----------+------------------+----------|
| IDE interface LED | C3 | PS/2 mouse port | CN9 |
|-------------------+----------+------------------+----------|
| Power LED & | C4 | Turbo/reset | J23 |
| keylock | | switch | |
|-------------------+----------+------------------+----------|
| Serial port 1 | CN1 | Speaker | J24 |
|-------------------+----------+------------------+----------|
| Serial port 2 | CN2 | 5v power | P1 |
|-------------------+----------+------------------+----------|
| Parallel port | CN3 | 3.3v auxiliary | P2 |
| | | power | |
|-------------------+----------+------------------+----------|
| Floppy drive | CN4 | 32-bit PCI slots | PC1 - |
| interface | | | PC3 |
|-------------------+----------+------------------+----------|
| Fixed disk | CN5 | CPU slot | SL1 |
| interface | | | |
|-------------------+----------+------------------+----------|
| SCSI interface | CN6 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|------------------------------+---------+-------------------|
| » | BIOS type select Acer | JP1 | Pins 1 & 2 closed |
|---+--------------------------+---------+-------------------|
| | BIOS type select OEM | JP1 | Pins 2 & 3 closed |
|---+--------------------------+---------+-------------------|
| » | Password disabled | JP2 | Pins 2 & 3 closed |
|---+--------------------------+---------+-------------------|
| | Password enabled | JP2 | Pins 1 & 2 closed |
|---+--------------------------+---------+-------------------|
| » | Reset button enabled | JP5 | Closed |
|---+--------------------------+---------+-------------------|
| | Reset button disabled | JP5 | Open |
|---+--------------------------+---------+-------------------|
| » | Buzzer enabled | JP6 | Pins 1 & 2 closed |
|---+--------------------------+---------+-------------------|
| | Speaker enabled | JP6 | Pins 2 & 3 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SIMM CONFIGURATION (80486DX4 & SINGLE PENTIUM BOARDS |
| INSTALLED) |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|---------------+-----------------------+--------------------|
| 8MB | (2) 1M x 36 | None |
|---------------+-----------------------+--------------------|
| 16MB | (2) 2M x 36 | None |
|---------------+-----------------------+--------------------|
| 16MB | (2) 1M x 36 | (2) 1M x 36 |
|---------------+-----------------------+--------------------|
| 24MB | (2) 2M x 36 | (2) 1M x 36 |
|---------------+-----------------------+--------------------|
| 32MB | (2) 4M x 36 | None |
|---------------+-----------------------+--------------------|
| 32MB | (2) 2M x 36 | (2) 2M x 36 |
|---------------+-----------------------+--------------------|
| 40MB | (2) 4M x 36 | (2) 1M x 36 |
|---------------+-----------------------+--------------------|
| 48MB | (2) 4M x 36 | (2) 2M x 36 |
|---------------+-----------------------+--------------------|
| 64MB | (2) 8M x 36 | None |
|---------------+-----------------------+--------------------|
| 64MB | (2) 4M x 36 | (2) 4M x 36 |
|---------------+-----------------------+--------------------|
| 72MB | (2) 8M x 36 | (2) 1M x 36 |
|---------------+-----------------------+--------------------|
| 80MB | (2) 8M x 36 | (2) 2M x 36 |
|---------------+-----------------------+--------------------|
| 96MB | (2) 8M x 36 | (2) 4M x 36 |
|---------------+-----------------------+--------------------|
| 128MB | (2) 8M x 36 | (2) 8M x 36 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SIMM CONFIGURATION (DUAL PENTIUM BOARD INSTALLED) |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 8MB | (2) 1M x 36 | None |
|------------------+--------------------+--------------------|
| 16MB | (2) 2M x 36 | None |
|------------------+--------------------+--------------------|
| 16MB | (2) 1M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 24MB | (2) 2M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 32MB | (2) 4M x 36 | None |
|------------------+--------------------+--------------------|
| 32MB | (2) 2M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 40MB | (2) 4M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 48MB | (2) 4M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 64MB | (2) 8M x 36 | None |
|------------------+--------------------+--------------------|
| 64MB | (2) 4M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 72MB | (2) 8M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 80MB | (2) 8M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 96MB | (2) 8M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 128MB | (2) 8M x 36 | (2) 8M x 36 |
|------------------+--------------------+--------------------|
| 128MB | (2) 16M x 36 | None |
|------------------+--------------------+--------------------|
| 136MB | (2) 16M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 144MB | (2) 16M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 160MB | (2) 16M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 192MB | (2) 16M x 36 | (2) 8M x 36 |
|------------------+--------------------+--------------------|
| 256MB | (2) 16M x 36 | (2) 16M x 36 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DMA CHANNEL SELECTION |
|------------------------------------------------------------|
| Channel | JP3 | JP4 |
|------------------+--------------------+--------------------|
| » 1 | Pins 1 & 2 closed | Pins 1 & 2 closed |
|------------------+--------------------+--------------------|
| 3 | Pins 2 & 3 closed | Pins 2 & 3 closed |
+------------------------------------------------------------+
IMG IMG 2
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|-------------------------------------+-------+--------------|
| » | Factory configured - do not | C1 | Unidentified |
| | alter | | |
+------------------------------------------------------------+
+--------------------------------------------------+
| CACHE CONFIGURATION |
|--------------------------------------------------|
| Note: The location of the cache is unidentified. |
+--------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED SELECTION |
|------------------------------------------------------------|
| Speed | JP6 | JP14 |
|------------------+--------------------+--------------------|
| 33MHz | Pins 1 & 2 closed | Pins 1 & 2 closed |
|------------------+--------------------+--------------------|
| 50iMHz | Pins 2 & 3 closed | Pins 2 & 3 closed |
|------------------+--------------------+--------------------|
| 66iMHz | Pins 1 & 2 closed | Pins 1 & 2 closed |
|------------------+--------------------+--------------------|
| 100iMHz | Pins 1 & 2 closed | Pins 1 & 2 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU TYPE SELECTION |
|------------------------------------------------------------|
| Type | JP5 | JP12 |
|--------------------+------------+--------------------------|
| Non SL enhanced | Open | Pins 2 & 3 closed |
|--------------------+------------+--------------------------|
| SL enhanced | Closed | Pins 1 & 2, 3 & 4 closed |
+------------------------------------------------------------+
IMG IMG 3
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|-------------------------------------+-------+--------------|
| » | Factory configured - do not | C1 | Unidentified |
| | alter | | |
+------------------------------------------------------------+
+--------------------------------------------------+
| CACHE CONFIGURATION |
|--------------------------------------------------|
| Note: The location of the cache is unidentified. |
+--------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED SELECTION |
|------------------------------------------------------------|
| CPU speed | Clock speed | Multiplier | JP1 |
|------------+--------------+------------+-------------------|
| 90MHz | 60MHz | 1.5x | Pins 1 & 2 closed |
|------------+--------------+------------+-------------------|
| 100MHz | 66MHz | 1.5x | Pins 1 & 2 closed |
|------------+--------------+------------+-------------------|
| 100MHz | 50MHz | 2x | Pins 2 & 3 closed |
+------------------------------------------------------------+

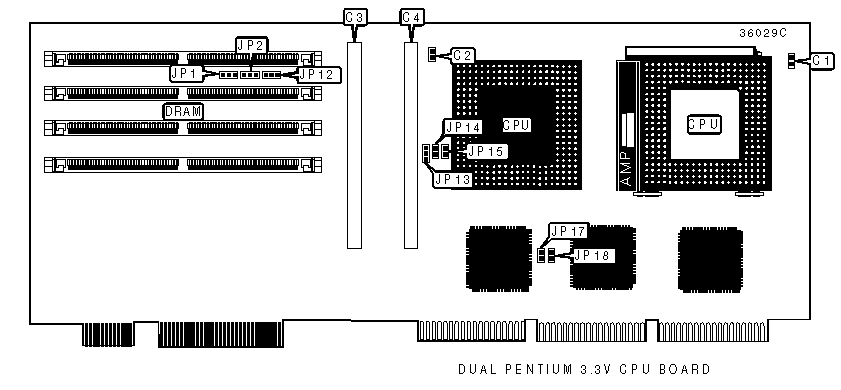

IMG IMG 4
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|-------------------------------------+-------+--------------|
| » | Factory configured - do not | C1 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | C2 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | C3 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | C4 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | JP1 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | JP2 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | JP13 | Unidentified |
| | alter | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SIMM CONFIGURATION (DUAL PENTIUM BOARD) |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 8MB | (2) 1M x 36 | None |
|------------------+--------------------+--------------------|
| 16MB | (2) 2M x 36 | None |
|------------------+--------------------+--------------------|
| 16MB | (2) 1M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 24MB | (2) 2M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 32MB | (2) 4M x 36 | None |
|------------------+--------------------+--------------------|
| 32MB | (2) 2M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 40MB | (2) 4M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 48MB | (2) 4M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 64MB | (2) 8M x 36 | None |
|------------------+--------------------+--------------------|
| 64MB | (2) 4M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 72MB | (2) 8M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 80MB | (2) 8M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 96MB | (2) 8M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 128MB | (2) 8M x 36 | (2) 8M x 36 |
|------------------+--------------------+--------------------|
| 128MB | (2) 16M x 36 | None |
|------------------+--------------------+--------------------|
| 136MB | (2) 16M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 144MB | (2) 16M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 160MB | (2) 16M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 192MB | (2) 16M x 36 | (2) 8M x 36 |
|------------------+--------------------+--------------------|
| 256MB | (2) 16M x 36 | (2) 16M x 36 |
+------------------------------------------------------------+
+--------------------------------------------------+
| CACHE CONFIGURATION |
|--------------------------------------------------|
| Note: The location of the cache is unidentified. |
+--------------------------------------------------+
+------------------------------------------------------------+
| CACHE JUMPER CONFIGURATION |
|------------------------------------------------------------|
| Type | JP12 | JP14 | JP15 | JP17 | JP18 |
|--------------+--------+--------+--------+---------+--------|
| Standard | 1 & 2 | Closed | Closed | Closed | Closed |
|--------------+--------+--------+--------+---------+--------|
| Synchronous | 2 & 3 | Open | Open | Open | Open |
|------------------------------------------------------------|
| Note: Pins designated should be in the closed position. |
+------------------------------------------------------------+
