# HAUPPAUGE COMPUTER WORKS, INC.
386 AT/16
Processor 80386DX
Processor Speed 16MHz
Chip Set C & T
Max. Onboard DRAM 1MB
Cache None
BIOS Award
Dimensions 330.2mm x 218.4mm
I/O Options 32-bit external memory card slot
NPU Options 80387
IMG IMG 1
+------------------------------------------------------------+

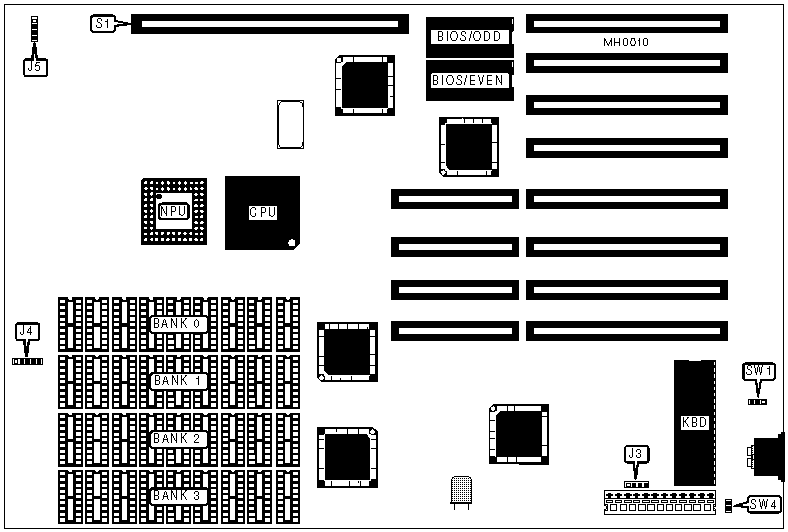

| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-------------------+----------+------------------+----------|
| External battery | J3 | 32-bit external | S1 |
| | | memory card | |
|-------------------+----------+------------------+----------|
| Power LED & | J4 | Reset switch | SW4 |
| keylock | | | |
|-------------------+----------+------------------+----------|
| Speaker | J5 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|------------------------------------+--------+--------------|
| ยป | Monitor type select color | SW1 | pins 2 & 3 |
| | | | closed |
|---+--------------------------------+--------+--------------|
| | Monitor type select monochrome | SW1 | open |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 | Bank 3 |
|---------+------------+------------+------------+-----------|
| 256KB | (9) 4464 | NONE | NONE | NONE |
|---------+------------+------------+------------+-----------|
| 512KB | (9) 4464 | (9) 4464 | NONE | NONE |
|---------+------------+------------+------------+-----------|
| 728KB | (9) 4464 | (9) 4464 | (9) 4464 | NONE |
|---------+------------+------------+------------+-----------|
| 1MB | (9) 4464 | (9) 4464 | (9) 4464 | (9) 4464 |
+------------------------------------------------------------+
