# HAUPPAUGE COMPUTER WORKS, INC.
386 AT/33
Processor 80386DX
Processor Speed 25/33MHz
Chip Set C & T
Max. Onboard DRAM 4MB
Cache None
BIOS Award
Dimensions 355mm x 304mm
I/O Options 32-bit external memory card slot
NPU Options 80387/3167

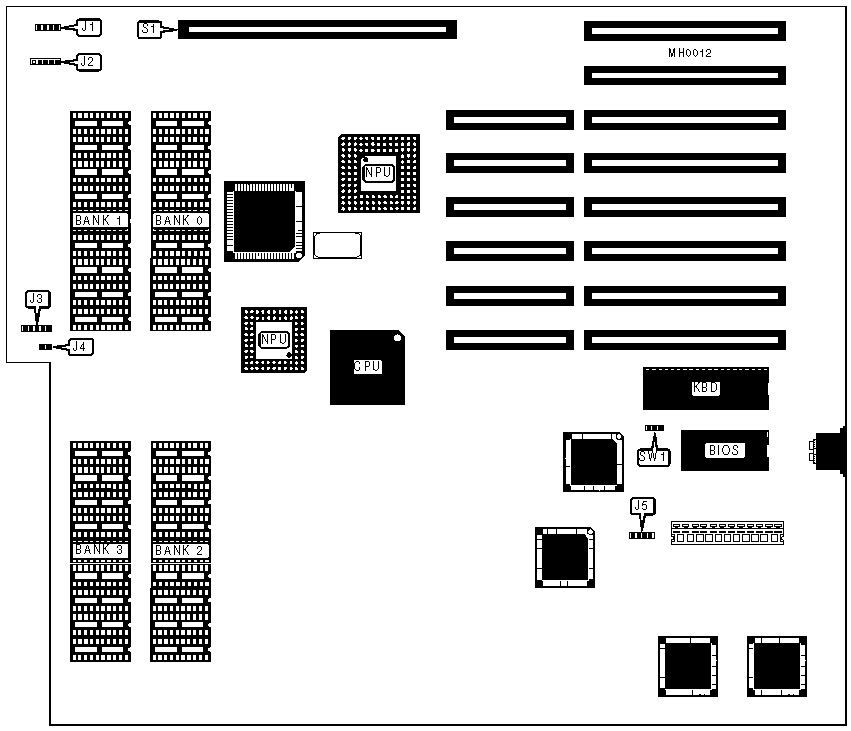

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|---------------+-----------+---------------------+----------|
| Speaker | J1 | Reset switch | J4 |
|---------------+-----------+---------------------+----------|
| Turbo LED | J2 pins 4 | External battery | J5 |
| | & 5 | | |
|---------------+-----------+---------------------+----------|
| Turbo switch | J2 pins 1 | 32-bit external | S1 |
| | & 2 | memory card | |
|---------------+-----------+---------------------+----------|
| Power LED & | J3 | | |
| keylock | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|------------------------------------+--------+--------------|
| ยป | Monitor type select color | SW1 | pins 2 & 3 |
| | | | closed |
|---+--------------------------------+--------+--------------|
| | Monitor type select monochrome | SW1 | Open |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 | Bank 3 |
|--------+------------+------------+------------+------------|
| 1MB | (9) 44256 | NONE | NONE | NONE |
|--------+------------+------------+------------+------------|
| 2MB | (9) 44256 | (9) 44256 | NONE | NONE |
|--------+------------+------------+------------+------------|
| 3MB | (9) 44256 | (9) 44256 | (9) 44256 | NONE |
|--------+------------+------------+------------+------------|
| 4MB | (9) 44256 | (9) 44256 | (9) 44256 | (9) 44256 |
+------------------------------------------------------------+
