# FUJIKAMA USA, INC.
82340
Processor 80386SX
Processor Speed 16/20/25MHz
Chip Set Intel/VLSI
Max. Onboard DRAM 32MB
Cache None
BIOS AMI
Dimensions 230mm x 215mm
I/O Options None
NPU Options 80387SX

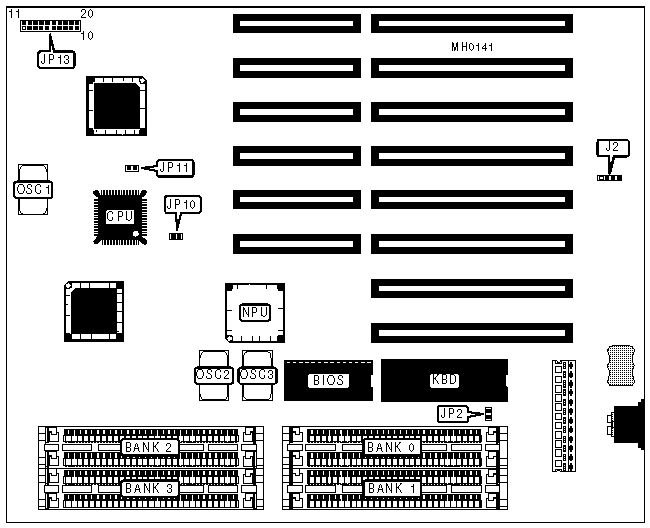

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|------------+-------------+--------------+------------------|
| External | J2 | Turbo LED | JP13 pins 12 & |
| battery | | | 13 |
|------------+-------------+--------------+------------------|
| Keylock | JP13 pins 1 | Turbo switch | JP13 pins 15 & |
| | & 2 | | 16 |
|------------+-------------+--------------+------------------|
| Power LED | JP13 pins 3 | Reset switch | JP13 pins 19 & |
| | & 5 | | 20 |
|------------+-------------+--------------+------------------|
| Speaker | JP13 pins 7 | | |
| | & 10 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|--------------------------------------+--------+------------|
| » | CMOS memory normal operation | J2 | pins 2 & 3 |
| | (internal battery) | | closed |
|---+----------------------------------+--------+------------|
| » | CMOS memory normal operation | J2 | Closed |
| | (external battery) | | |
|---+----------------------------------+--------+------------|
| | CMOS memory clear | J2 | pins 3 & 4 |
| | | | closed |
|---+----------------------------------+--------+------------|
| » | Monitor type select color | JP2 | Closed |
|---+----------------------------------+--------+------------|
| | Monitor type select monochrome | JP2 | Open |
|---+----------------------------------+--------+------------|
| » | Pipeline mode disabled | JP10 | Open |
|---+----------------------------------+--------+------------|
| | Pipeline mode enabled | JP10 | Closed |
|---+----------------------------------+--------+------------|
| » | Parity check enabled | JP11 | Closed |
|---+----------------------------------+--------+------------|
| | Parity check disabled | JP11 | Open |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 | Bank 3 |
|--------+------------+------------+------------+------------|
| 512KB | (2) 256K x | NONE | NONE | NONE |
| | 9 | | | |
|--------+------------+------------+------------+------------|
| 1MB | (2) 256K x | (2) 256K x | NONE | NONE |
| | 9 | 9 | | |
|--------+------------+------------+------------+------------|
| 1.5MB | (2) 256K x | (2) 256K x | (2) 256K x | NONE |
| | 9 | 9 | 9 | |
|--------+------------+------------+------------+------------|
| 2MB | (2) 256K x | (2) 256K x | (2) 256K x | (2) 256K x |
| | 9 | 9 | 9 | 9 |
|--------+------------+------------+------------+------------|
| 2MB | (2) 1M x 9 | NONE | NONE | NONE |
|--------+------------+------------+------------+------------|
| 2.5MB | (2) 256K x | (2) 1M x 9 | NONE | NONE |
| | 9 | | | |
|--------+------------+------------+------------+------------|
| 3MB | (2) 256K x | (2) 256K x | (2) 1M x 9 | NONE |
| | 9 | 9 | | |
|--------+------------+------------+------------+------------|
| 4MB | (2) 1M x 9 | (2) 1M x 9 | NONE | NONE |
|--------+------------+------------+------------+------------|
| 4.5MB | (2) 1M x 9 | (2) 1M x 9 | (2) 256K x | NONE |
| | | | 9 | |
|--------+------------+------------+------------+------------|
| 5MB | (2) 256K x | (2) 256K x | (2) 1M x 9 | (2) 1M x 9 |
| | 9 | 9 | | |
|--------+------------+------------+------------+------------|
| 6MB | (2) 1M x 9 | (2) 1M x 9 | (2) 1M x 9 | NONE |
|--------+------------+------------+------------+------------|
| 8MB | (2) 1M x 9 | (2) 1M x 9 | (2) 1M x 9 | (2) 1M x 9 |
|--------+------------+------------+------------+------------|
| 8MB | (2) 4M x 9 | NONE | NONE | NONE |
|--------+------------+------------+------------+------------|
| 8.5MB | (2) 256K x | (2) 4M x 9 | NONE | NONE |
| | 9 | | | |
|--------+------------+------------+------------+------------|
| 9MB | (2) 256K x | (2) 256K x | (2) 4M x 9 | NONE |
| | 9 | 9 | | |
|--------+------------+------------+------------+------------|
| 10MB | (2) 1M x 9 | (2) 4M x 9 | NONE | NONE |
|--------+------------+------------+------------+------------|
| 12MB | (2) 1M x 9 | (2) 1M x 9 | (2) 4M x 9 | NONE |
|--------+------------+------------+------------+------------|
| 16MB | (2) 4M x 9 | (2) 4M x 9 | NONE | NONE |
|--------+------------+------------+------------+------------|
| 16.5MB | (2) 4M x 9 | (2) 4M x 9 | (2) 256K x | NONE |
| | | | 9 | |
|--------+------------+------------+------------+------------|
| 17MB | (2) 256K x | (2) 256K x | (2) 4M x 9 | (2) 4M x 9 |
| | 9 | 9 | | |
|--------+------------+------------+------------+------------|
| 18MB | (2) 4M x 9 | (2) 4M x 9 | (2) 1M x 9 | NONE |
|--------+------------+------------+------------+------------|
| 20MB | (2) 1M x 9 | (2) 1M x 9 | (2) 4M x 9 | (2) 4M x 9 |
|--------+------------+------------+------------+------------|
| 24MB | (2) 4M x 9 | (2) 4M x 9 | (2) 4M x 9 | NONE |
|--------+------------+------------+------------+------------|
| 32MB | (2) 4M x 9 | (2) 4M x 9 | (2) 4M x 9 | (2) 4M x 9 |
+------------------------------------------------------------+
