# FUJIKAMA USA, INC.
ETEQ-386
Processor 80386DX
Processor Speed 25/33MHz
Chip Set ETEQ
Max. Onboard DRAM 32MB
Cache 64/128KB
BIOS AMI/Phoenix
Dimensions 330mm x 225mm
I/O Options 32-bit external memory card slot
NPU Options 80387/3167

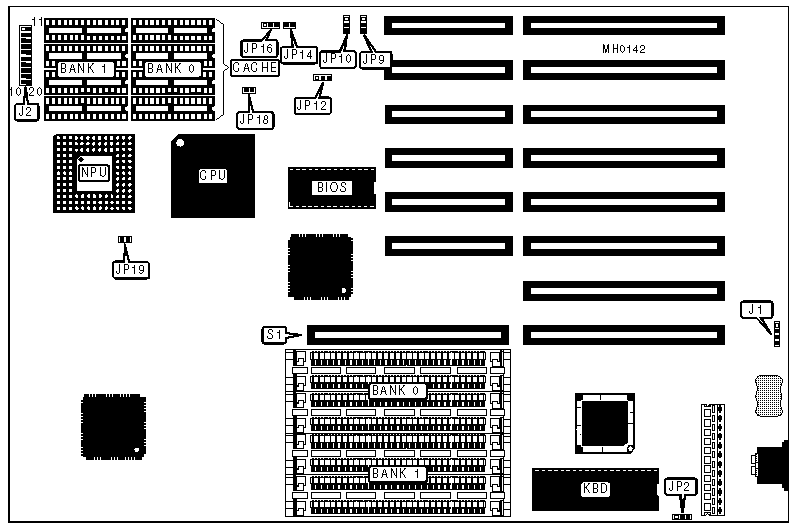

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|------------------+----------+------------------+-----------|
| External battery | J1 | Turbo LED | J2 pins |
| | | | 12 & 13 |
|------------------+----------+------------------+-----------|
| Keylock | J2 pins | Turbo switch | J2 pins |
| | 1 & 2 | | 15 & 16 |
|------------------+----------+------------------+-----------|
| Power LED | J2 pins | Reset switch | J2 pins |
| | 3 & 5 | | 19 & 20 |
|------------------+----------+------------------+-----------|
| Speaker | J2 pins | 32-bit external | S1 |
| | 7 & 10 | memory card | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|--------------------------------------+--------+------------|
| » | Battery select internal | J1 | pins 2 & 3 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | Battery select external | J1 | Closed |
|---+----------------------------------+--------+------------|
| » | Monitor type select monochrome | JP2 | pins 2 & 3 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | Monitor type select color | JP2 | pins 1 & 2 |
| | | | closed |
|---+----------------------------------+--------+------------|
| » | NPU mode select synchronous with | JP19 | Closed |
| | CPU | | |
|---+----------------------------------+--------+------------|
| | NPU mode select asynchronous | JP19 | Open |
| | with CPU | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 1MB | (4) 256K x 9 | NONE |
|------------------+--------------------+--------------------|
| 2MB | (4) 256K x 9 | (4) 256K x 9 |
|------------------+--------------------+--------------------|
| 4MB | (4) 1M x 9 | NONE |
|------------------+--------------------+--------------------|
| 5MB | (4) 1M x 9 | (4) 256K x 9 |
|------------------+--------------------+--------------------|
| 8MB | (4) 1M x 9 | (4) 1M x 9 |
|------------------+--------------------+--------------------|
| 16MB | (4) 4M x 9 | NONE |
|------------------+--------------------+--------------------|
| 17MB | (4) 4M x 9 | (4) 256K x 9 |
|------------------+--------------------+--------------------|
| 20MB | (4) 4M x 9 | (4) 1M x 9 |
|------------------+--------------------+--------------------|
| 32MB | (4) 4M x 9 | (4) 4M x 9 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | TAG |
|------------+---------------+---------------+---------------|
| 64KB | (4) 8K x 8 | (4) 8K x 8 | (2) 16K x 4 |
|------------+---------------+---------------+---------------|
| 128KB | (4) 32K x 8 | NONE | (2) 16K x 4 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE JUMPER CONFIGURATION |
|------------------------------------------------------------|
| Size | JP9 | JP10 | JP12 | JP14 | JP16 | JP18 |
|--------+--------+--------+-------+--------+-------+--------|
| 64KB | Open | 1 & 2 | 1 & 2 | Open | 2 & 3 | Open |
|--------+--------+--------+-------+--------+-------+--------|
| 128KB | 2 & 3 | Open | 2 & 3 | Closed | Open | Closed |
|------------------------------------------------------------|
| Note: Pins designated should be in the closed position. |
+------------------------------------------------------------+
