# FOREX COMPUTER CORPORATION
80386SX-25/33
Processor 80386SX
Processor Speed 25/33MHz
Chip Set Forex
Max. Onboard DRAM 16MB
Cache 16/64KB
BIOS AMI
Dimensions 330mm x 218mm
I/O Options None
NPU Options 80387SX

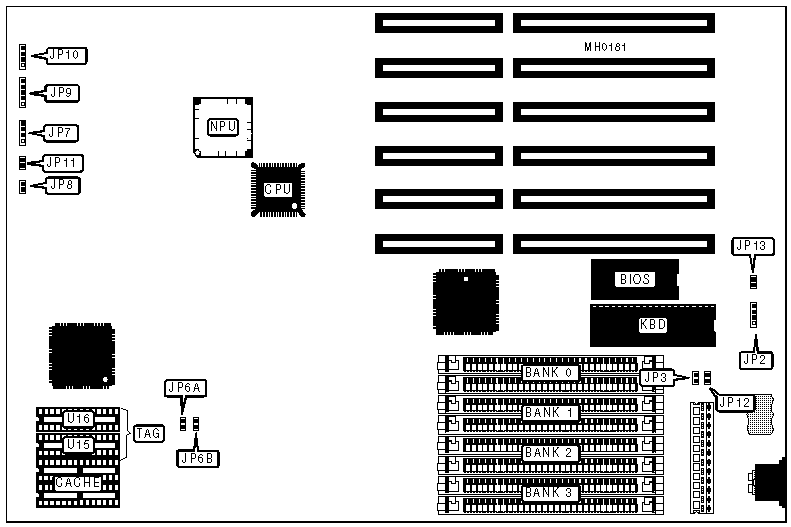

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|------------------+----------+-------------------+----------|
| External battery | JP2 | Power LED & | JP9 |
| | | keylock | |
|------------------+----------+-------------------+----------|
| Turbo LED | JP7 | Speaker | JP10 |
|------------------+----------+-------------------+----------|
| Reset switch | JP8 | Turbo switch | JP11 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|----------------------------------------+--------+----------|
| » | Monitor type select monochrome | JP3 | Closed |
|---+------------------------------------+--------+----------|
| | Monitor type select color | JP3 | Open |
|---+------------------------------------+--------+----------|
| » | Factory configured - do not alter | JP12 | Closed |
|---+------------------------------------+--------+----------|
| » | CMOS memory normal operation | JP13 | Open |
|---+------------------------------------+--------+----------|
| | CMOS memory clear | JP13 | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 | Bank 3 |
|------+-------------+-------------+------------+------------|
| 1MB | (2) 256K x | (2) 256K x | NONE | NONE |
| | 9 | 9 | | |
|------+-------------+-------------+------------+------------|
| 2MB | (2) 256K x | (2) 256K x | (2) 256K x | (2) 256K x |
| | 9 | 9 | 9 | 9 |
|------+-------------+-------------+------------+------------|
| 3MB | (2) 256K x | (2) 256K x | (2) 1M x 9 | NONE |
| | 9 | 9 | | |
|------+-------------+-------------+------------+------------|
| 4MB | (2) 1M x 9 | (2) 1M x 9 | NONE | NONE |
|------+-------------+-------------+------------+------------|
| 5MB | (2) 256K x | (2) 256K x | (2) 1M x 9 | (2) 1M x 9 |
| | 9 | 9 | | |
|------+-------------+-------------+------------+------------|
| 6MB | (2) 1M x 9 | (2) 1M x 9 | (2) 1M x 9 | NONE |
|------+-------------+-------------+------------+------------|
| 8MB | (2) 1M x 9 | (2) 1M x 9 | (2) 1M x 9 | (2) 1M x 9 |
|------+-------------+-------------+------------+------------|
| 8MB | (2) 4M x 9 | NONE | NONE | NONE |
|------+-------------+-------------+------------+------------|
| 9MB | (2) 256K x | (2) 256K x | (2) 4M x 9 | NONE |
| | 9 | 9 | | |
|------+-------------+-------------+------------+------------|
| 10MB | (2) 1M x 9 | (2) 4M x 9 | NONE | NONE |
|------+-------------+-------------+------------+------------|
| 12MB | (2) 1M x 9 | (2) 1M x 9 | (2) 4M x 9 | NONE |
|------+-------------+-------------+------------+------------|
| 16MB | (2) 4M x 9 | (2) 4M x 9 | NONE | NONE |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | TAG (U15) | TAG (U16) |
|------------+---------------+---------------+---------------|
| 16KB | (2) 8K x 8 | NONE | (1) 8K x 8 |
|------------+---------------+---------------+---------------|
| 64KB | (2) 32K x 8 | (1) 8K x 8 | (1) 8K x 8 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE JUMPER CONFIGURATION |
|------------------------------------------------------------|
| Size | JP6A | JP6B |
|------------------+--------------------+--------------------|
| 16KB | pins 1 & 2 closed | pins 1 & 2 closed |
|------------------+--------------------+--------------------|
| 64KB | pins 2 & 3 closed | pins 2 & 3 closed |
+------------------------------------------------------------+
